Antec AX1000 Mid Tower PC Case



Features

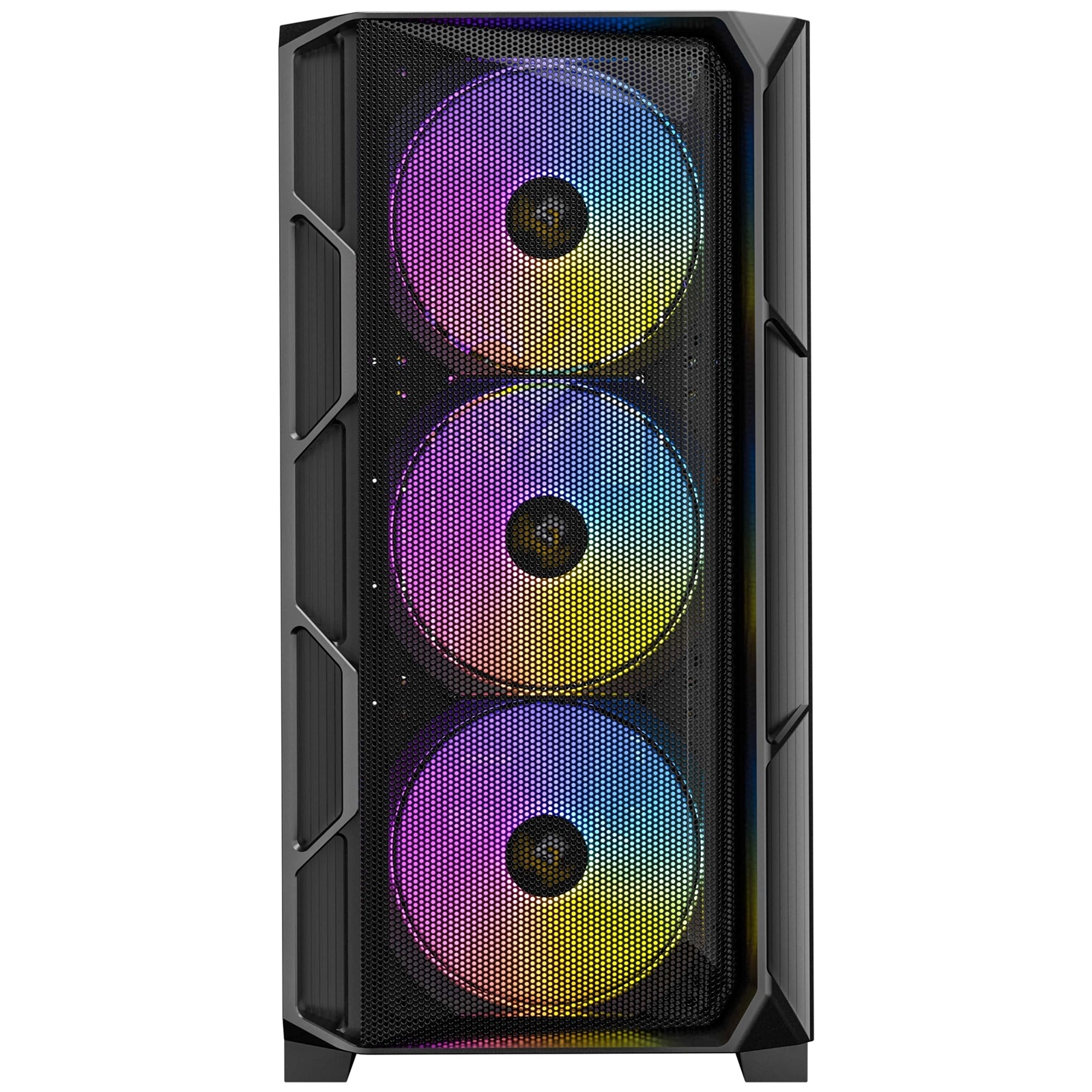

1. Large-area steel mesh design on the front panel for improved heat dissipation.

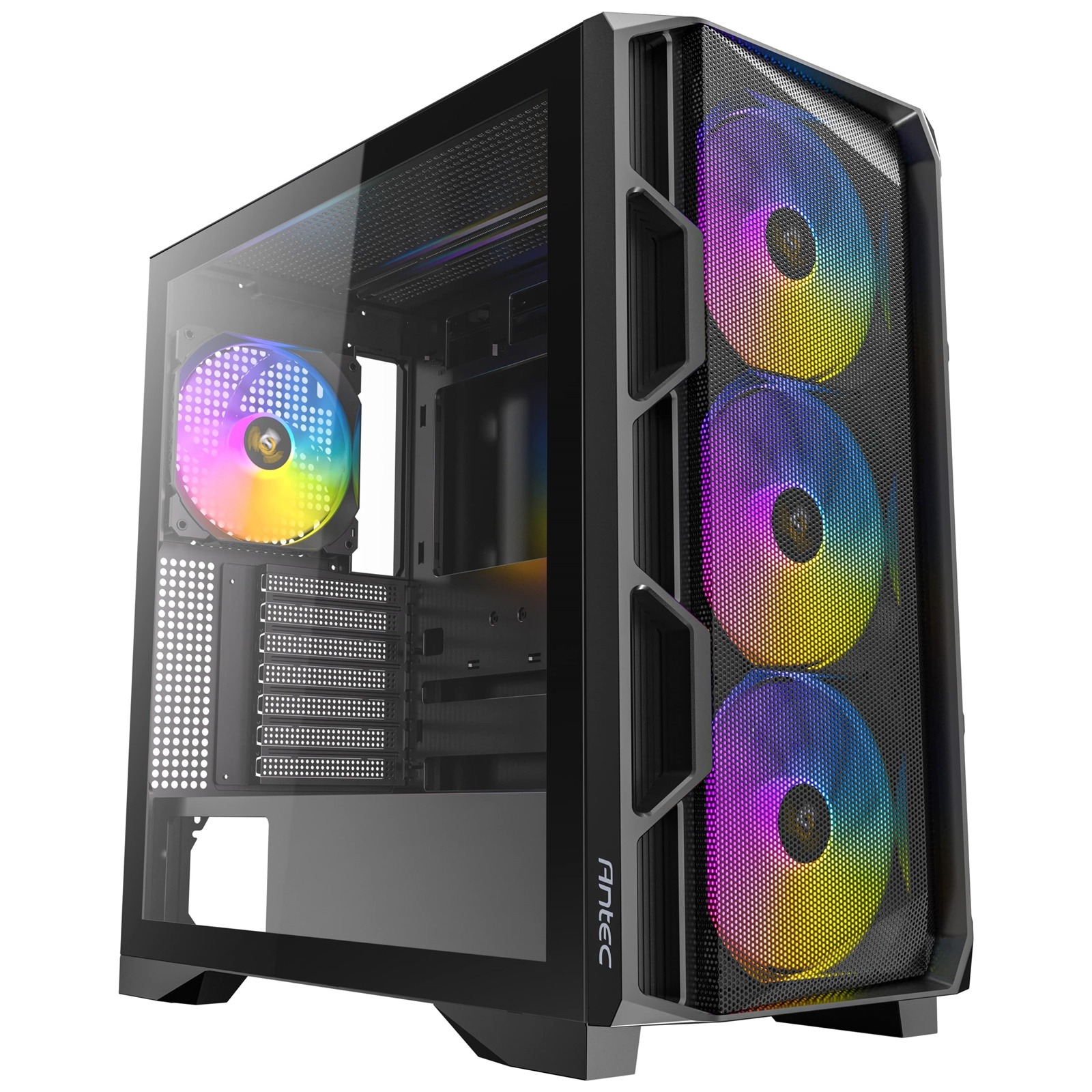

2. Tool-free full-view tempered glass side panel and steel side panel for easy installation and showcasing your build.

3. Comes standard with three 140mm ARGB PWM fans at the front (secondary fans), one 140mm ARGB PWM fan at the rear (main fan), and a 6+6 ARGB PWM controller.

4. Convenient top-mounted I/O panel supporting 2 x USB 3.0 ports and 1 x Type-C 3.2 Gen 2 (10Gbps) port.

5. Supports water cooling radiators up to 360mm in length at both the front and top.

6. Ample storage space with full support for SSDs and HDDs.

7. 30mm cable management space for a better building experience.

8. Detachable magnetic dust filters on the top, bottom, and right side for easy cleaning.

9. Rear-mounted motherboard I/O ports located behind the case motherboard tray for a cleaner front appearance, improved cable management, enhanced aesthetics, maintained transparency, and better overall space and cooling efficiency.

10. Equipped with 7 independent PCIe slot covers with two adjustable modes.

11. Comes with 3 cable routing clips to help users organize cables and prevent clutter caused by excessive wiring.



Specifications



Dimensions

480 x 235 x 470mm



Form Factor

Mid tower



Materials

Steel + Plastic



Mainboard Support

E-ATX, ATX, Micro-ATX , ITX



Front Access & Controls

Power, Reset, LED Control button, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps)x 1, Mic/HD-AUDIO



Side Panel

Tempered Glass Side Panel



Fan

Front 3 x140 / 3 x 120mm

Top 2x 140 / 3 x 120mm

Power Supply Shroud 2 x 140 / 2 x 120mm

Rear 1 x 140 / 1 x 120mm

Included Fan(s) 3 x 140mm ARGB PWM Fans at the front + 1 x 140mm ARGB PWM Fan at the rear + 6-port ARGB PWM fan controller



Radiator Support

Front 120 / 140 / 240 / 280 / 360mm

Top 120 / 140 / 240 / 280 / 360mm(Maximum RAM height: 52mm)

Rear 120 / 140mm



Clearance

Max GPU Length =420mm

Max CPU Cooler Height =185mm

Max PSU Length (Include cable)=240mm



Miscellaneous

Dust Filter Top / Right Hand Side / Bottom

Net Weight 7.70 Kg

Gross Weight 8.95 Kg

Warranty 1 Year
