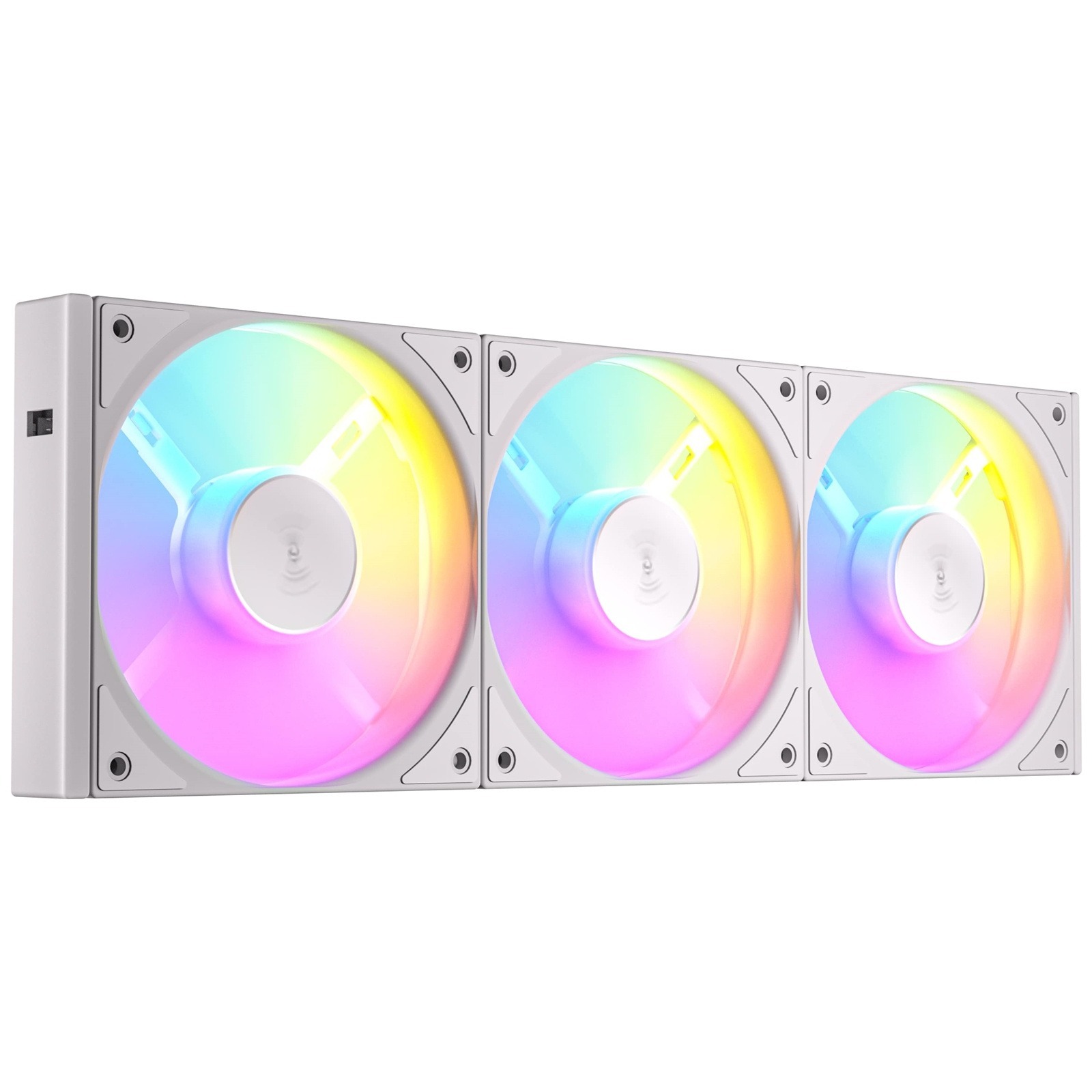

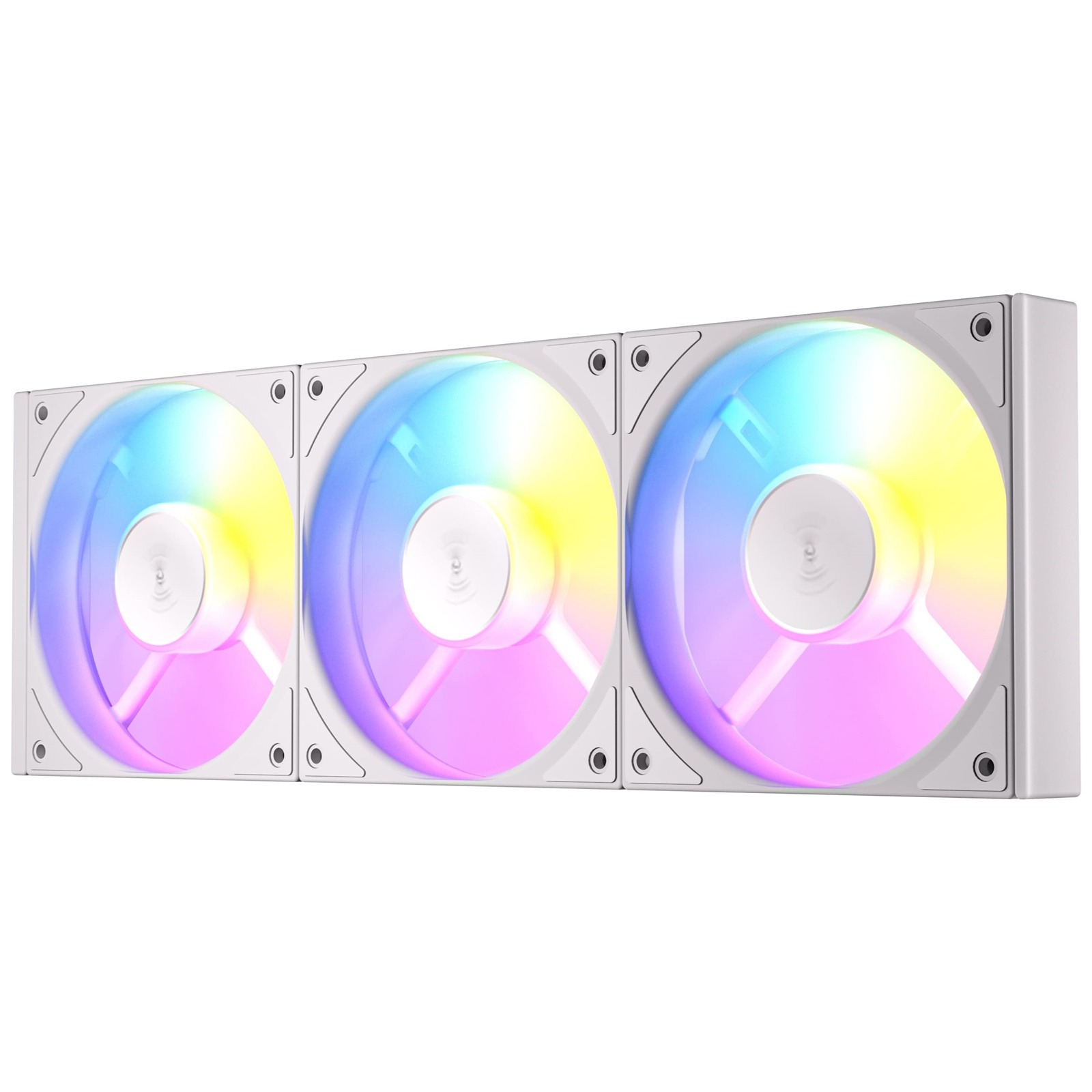

Connect 120 ARGB

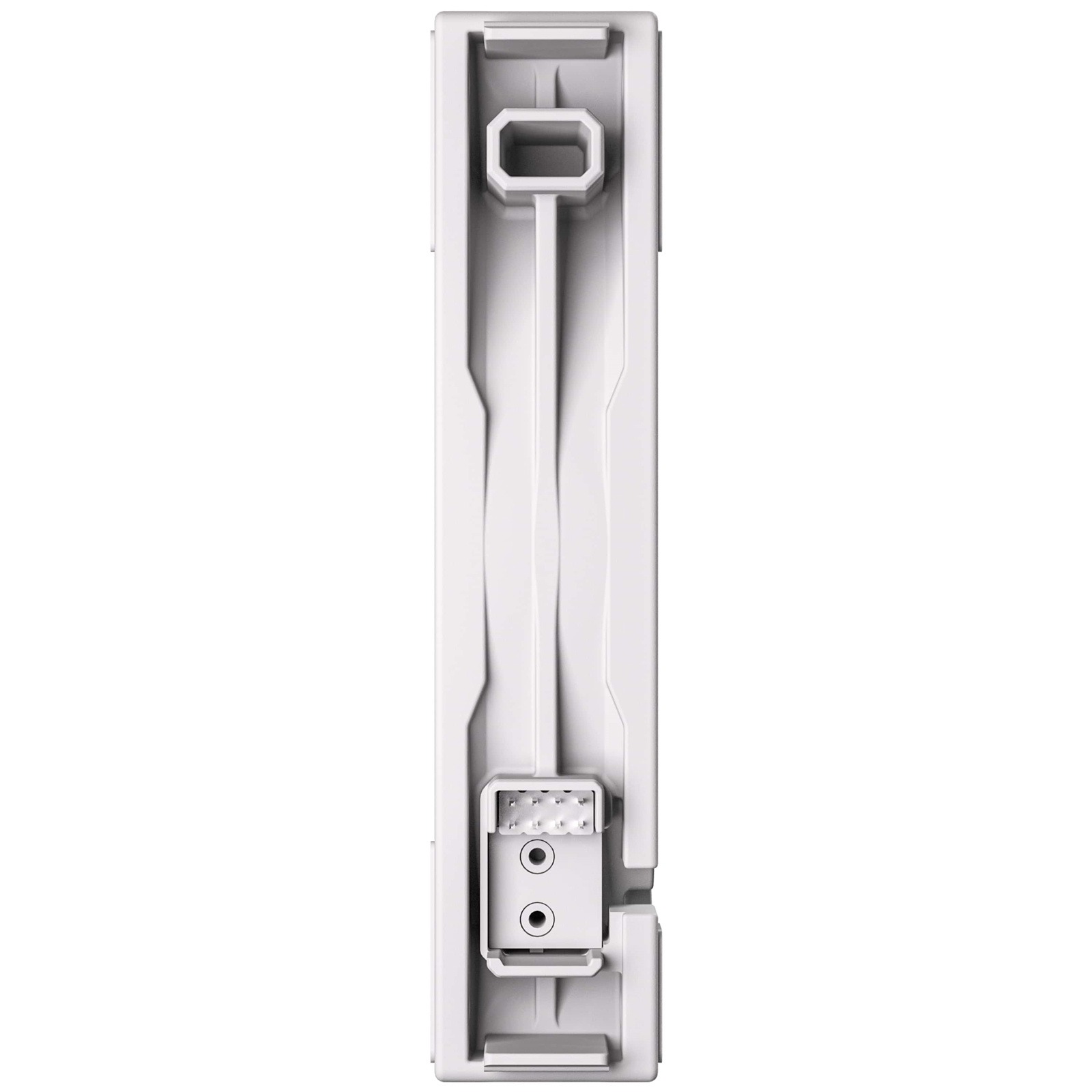

Intuitive Interlocking System
Connect the fans internally with each other to streamline the installation process.

3 Fans 4 Screws
Interlocking sytem helps you mount multiple fans using less screws.

Easier Installation With Less Cables
Daisy Chain design with less cables needed.

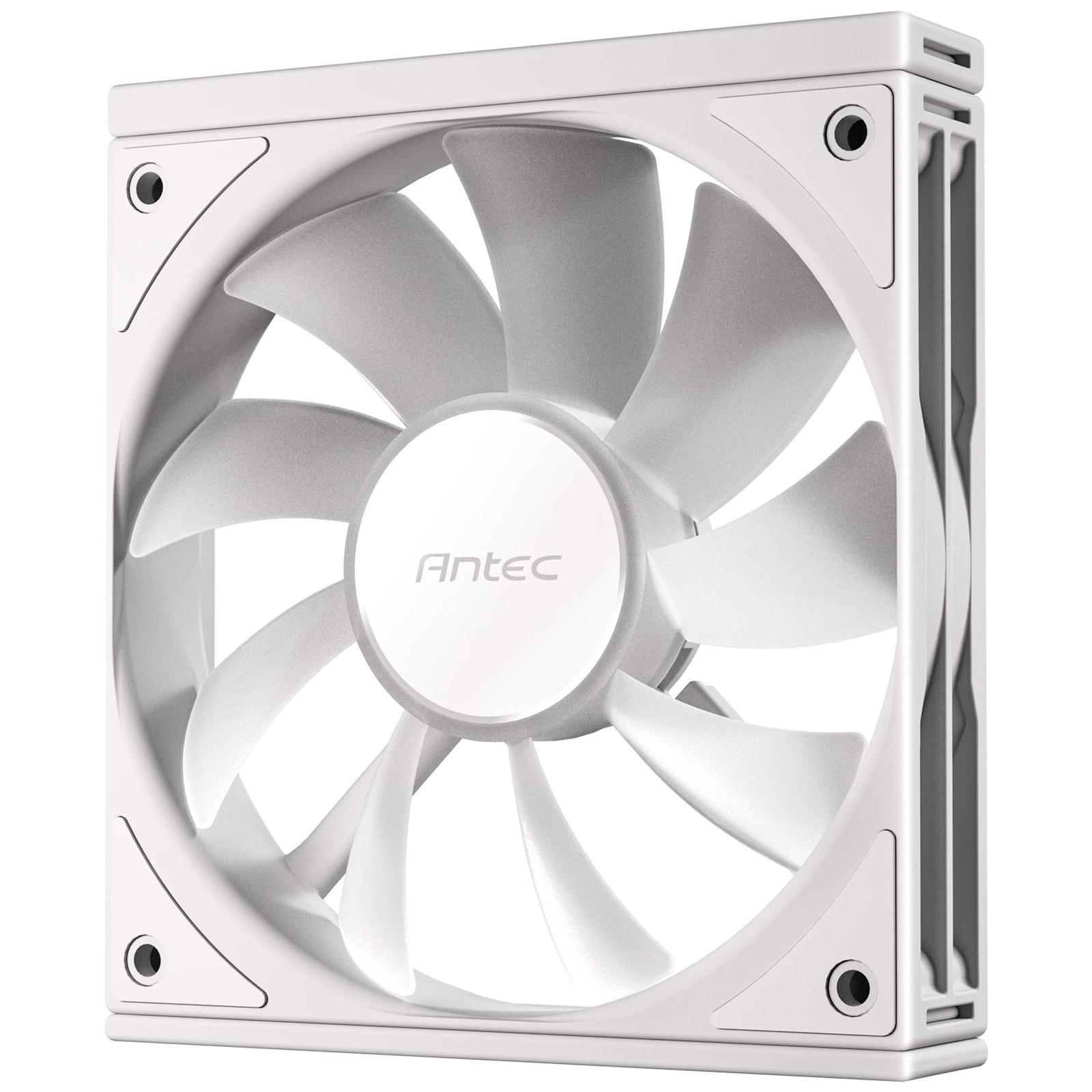

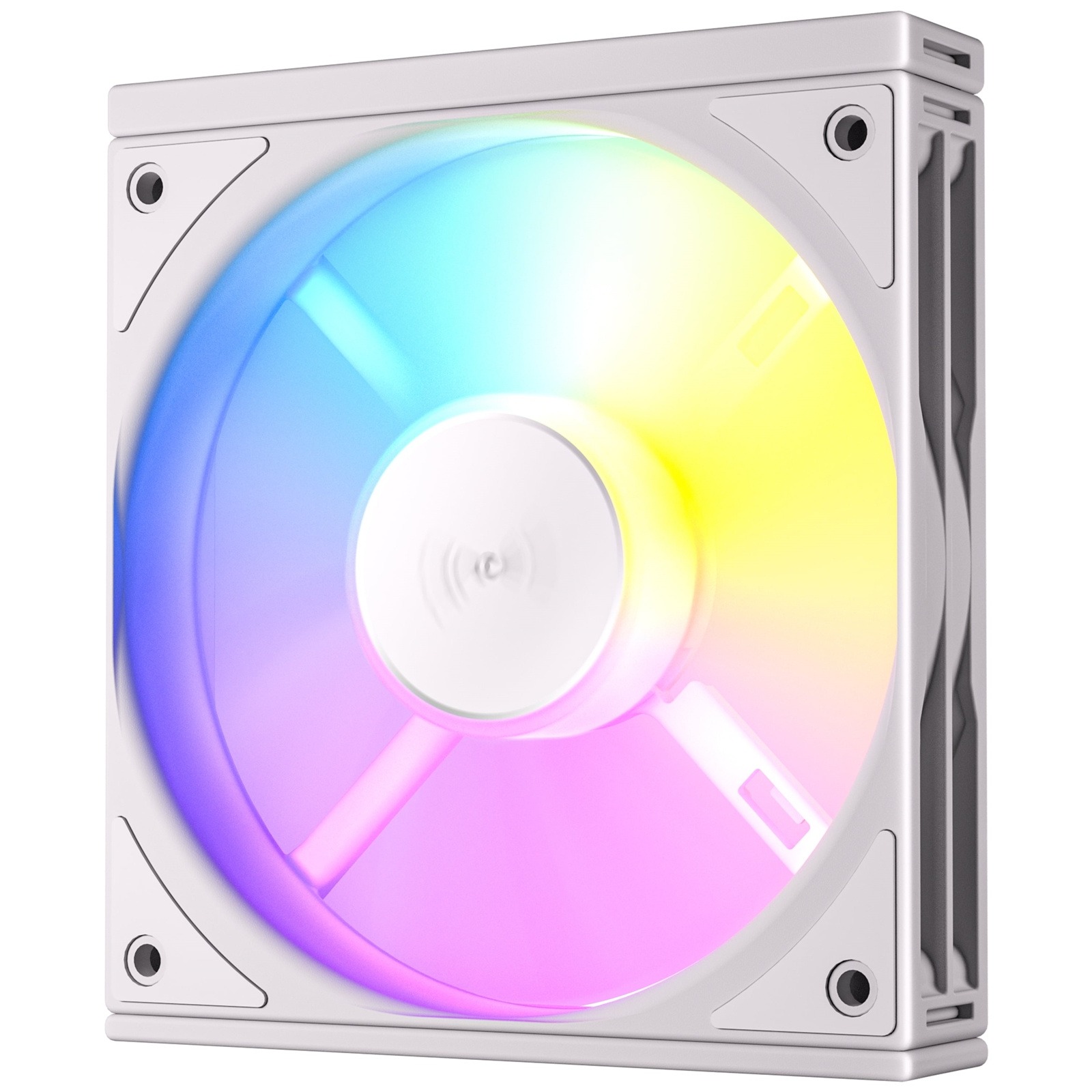

PWM ARGB Fan
Strong and stable airflow in quiet operation.

ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration pads effectively reduce vibration and noise.

Fan Installation
Pay attention to the cable outlet when installing fan covers; the outlet should be positioned over the male connector.

ARGB LIGHTING EFFECT SYNC
Extendable 3-Pin Daisy-Chain ARGB connector provides a much easier way to integrate lighting effect with motherboard and other components.

Specification

Model Name
C120 ARGB White 3PK

Fan Type
ARGB PWM Fan

Dimensions
120 x 120 x 25 mm

Bearing Type
Hydraulic Bearing

Fan Speed
800RPM± 10% – 1500RPM± 10%

Airflow
33.7 – 65.08 CFM

Air Pressure
0.45 – 1.7 mmH2O

Fan Noise Level
19.7 – 28 dB(A)

Lifespan
30,000 hours / 25?

Connector
FAN: 4-pin PWM
LED: 3-pin

Rated Voltage
FAN: DC 12 V
LED: DC 5 V

Operation Voltage
FAN: DC 6.0-13.2 V
LED: DC 4.5-5.2 V

Rated Current
FAN : = 0.29A±10%
LED : = 0.28A±10%

Warranty
1 Year
