Desktop

Micro ATX

AMD AM5

AMD A620A

Click here for CPU support

DDR5 (Dual Channel)
Supports ECC/non-ECC, un-buffered memory
Supports XMP and EXPO

4 x DIMM

Up to 8000+(OC)

256GB

Integrated Graphics
Graphics specifications may vary between CPU types

1 x HDMI

1 x PCIe 4.0 x16 (PCIE1), supports x16 mode*
1 x PCIe 3.0 x4 (PCIE2), supports x2 mode

*PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.

2 x SATA III
3 x M.2

M.2_1 (2260/2280) – PCIe 4.0 x4
M.2_2 (2260/2280) – PCIe 4.0 x4*
M.2_3 (2260/2280) – PCIe 3.0 x4

M2_2 will run at Gen4x4 with 9000 and 7000 series CPUs, Gen4x4 with 8000 (Phoenix 1) series CPUs and Gen4x2 with 8000 (Phoenix 2) series CPUs.

Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/axe
Supports Dual-Band 2×2 with ext 6GHz band support
2 antennas – 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.2 + High speed class II
Supports MU-MIMO

2.5GB LAN

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Rear:
1 x USB 5Gbps Type-C
3 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 5Gbps Type-C
2 x USB 5Gbps Type-A
4 x USB 2.0

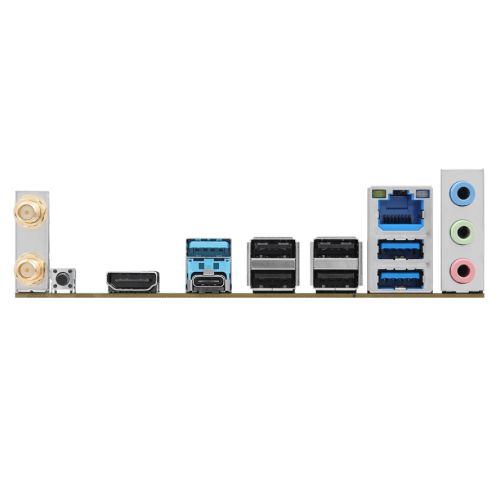

2 x Antenna
1 x HDMI
3 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
3 x Chassis Fan
1 x AIO Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1

1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket

See Overview

Retail

1.2530 kg

3 Year Replacement Warranty
