Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD B850
CPU Support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
ECC and Non-ECC Un-buffered DIMM
Supports XMP & EXPO
ECC and Non-ECC Un-buffered DIMM
Supports XMP & EXPO
RAM Slots
4 x DIMM
RAM Speeds
Up to 8000+(OC)
Maximum Memory
256GB
Graphics
Integrated Graphics
Graphics specifications may vary between CPU types
Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
1 x DisplayPort
1 x DisplayPort
PCI/PCI Express
Ryzen 9000 & 7000 Series CPUs:
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
Ryzen 8000 Series CPUs:
1 x PCIe 4.0 x8/x4
1 x PCIe 4.0 x4
Storage
4 x SATA III
3 x M.2
3 x M.2
Ryzen 9000 & 7000 Series CPUs:
M.2_1 (2280) – PCIe 5.0 x4
Ryzen 8000 Series CPUs:
M.2_1 (2280) – PCIe 4.0 x4/x2
AMD B850 Chipset:
M.2_2 (2260/2280) – PCIe 4.0 x2
M.2_3 (2260/2280) – PCIe 4.0 x4
RAID
Supports RAID 0, 1 and 10 for SATA storage devices
Supports RAID 0, 1 and 10 for M.2 NVMe storage devices*
Supports RAID 0, 1 and 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
Wireless
802.11be 2×2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.4
Supports MU-MIMO
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.4
Supports MU-MIMO
LAN
2.5GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
USB Ports Supported
Rear:
1 x USB 10Gbps Type-C
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0
1 x USB 10Gbps Type-C
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0
Front:
1 x USB 5Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

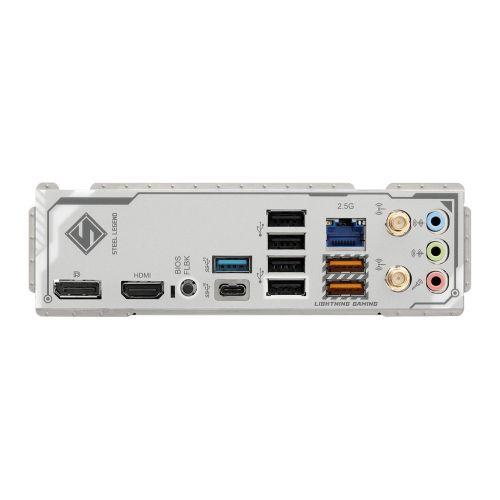

Back Panel I/O Ports
2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Thermistor Cable
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
3 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x Thermistor Cable
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
3 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Panel Audio
2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen1

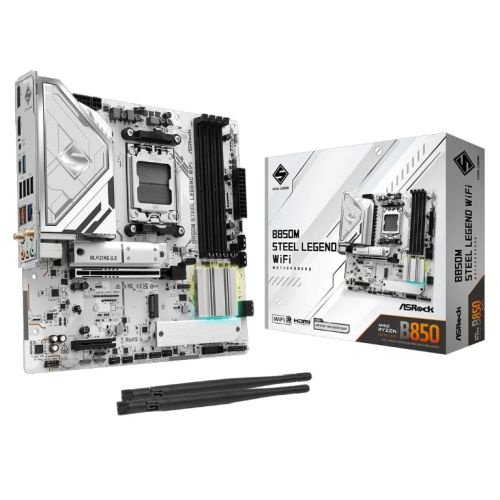

Accessories
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Thermistor Cable
2 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Thermistor Cable
2 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Additional Features
See Overview
Package Type
Retail
Package Weight
1.6000 kg
Warranty
3 Year Replacement Warranty
Full Box Quantity
10
