6+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.



POLYCHROME RGB

This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects .

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.



Ultra M.2 32Gb/s (PCIe Gen3 x4)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.



USB 3.2 Gen1 Type-C

USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.



Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer

step2: Update drivers needed

step3: Done!

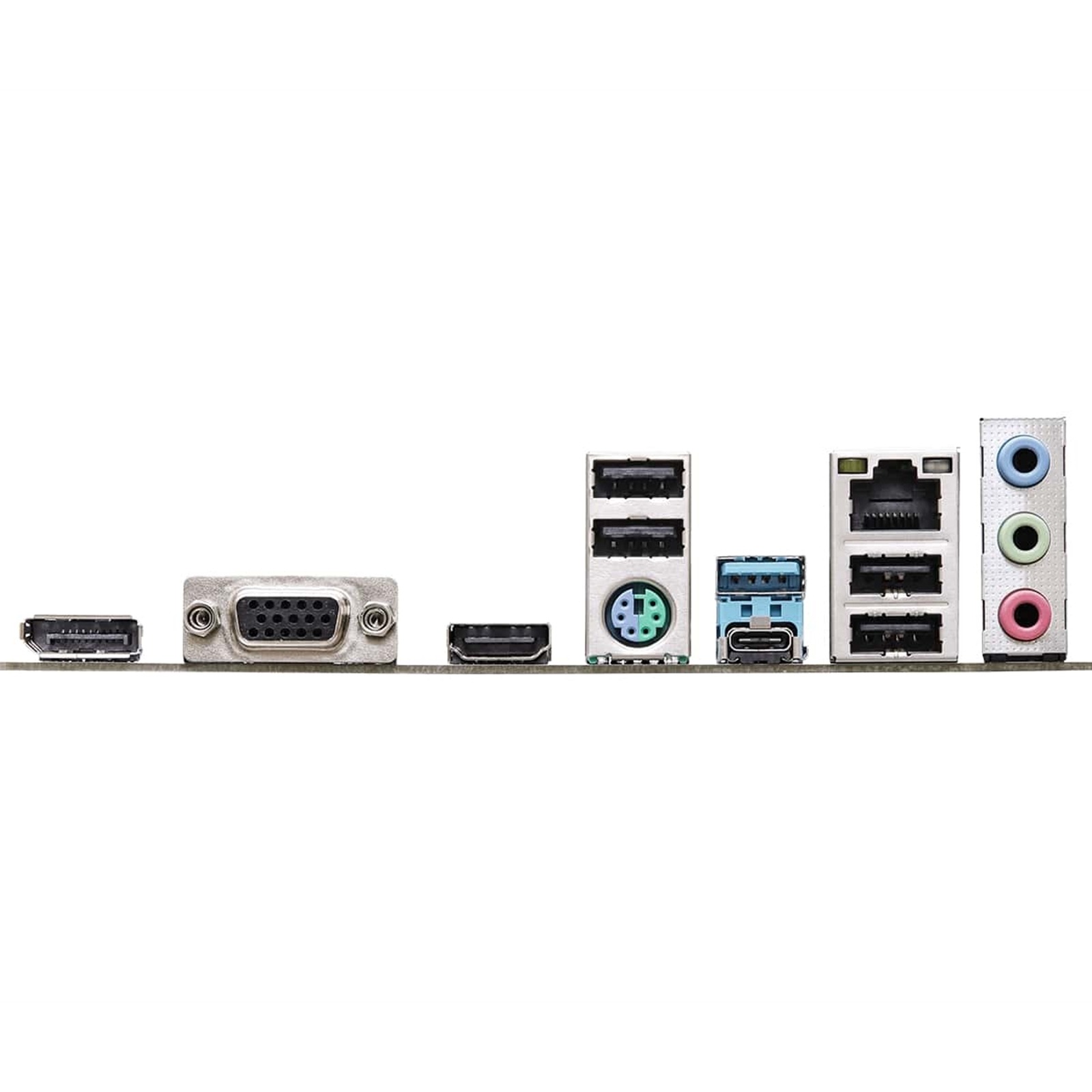

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.



HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.



Specification



Unique Feature



Superb Productivity

Dual Channel DDR5



Rock-Solid Durability

6+1 Power Phase



EZ Update

ASRock Auto Driver Installer



CPU

Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700)

Supports Intel® Hybrid Technology

Supports Intel® Turbo Boost Max 3.0 Technology



Chipset

Intel® H610



Memory

Dual Channel DDR5 Memory Technology

2 x DDR5 DIMM Slots

13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*

12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*

Max. capacity of system memory: 96GB

Supports Intel® Extreme Memory Profile (XMP) 3.0

* Actual support may vary by CPU.



BIOS

128Mb AMI UEFI Legal BIOS with GUI support



Graphics

Intel® Xe Graphics Architecture (Gen 12)*

1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.



Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)



LAN

Gigabit LAN 10/100/1000 Mb/s

Realtek 8111H



Slots



CPU:

1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*



Chipset:

1 x PCIe 3.0 x1 Slot (PCIE2)*

*Supports NVMe SSD as boot disks



Storage



Chipset:

1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*

4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks



USB

1 x USB 3.2 Gen1 Type-C (Rear)

3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)

6 x USB 2.0 (4 Rear, 2 Front)

* All USB ports support ESD Protection<br style="box-sizing: border-box; color: rgb(33, 37, 41); font-family: -apple-system, Ar
