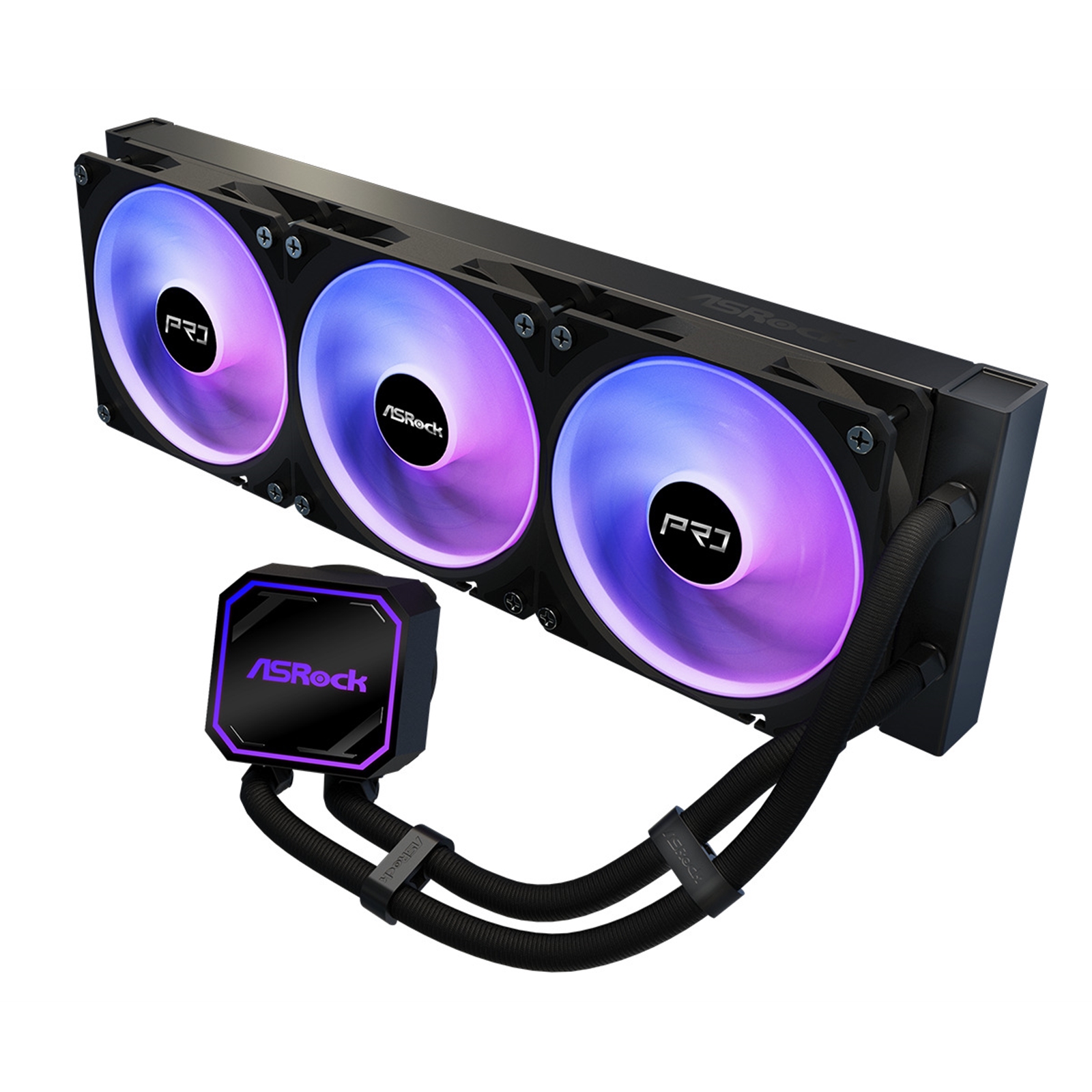

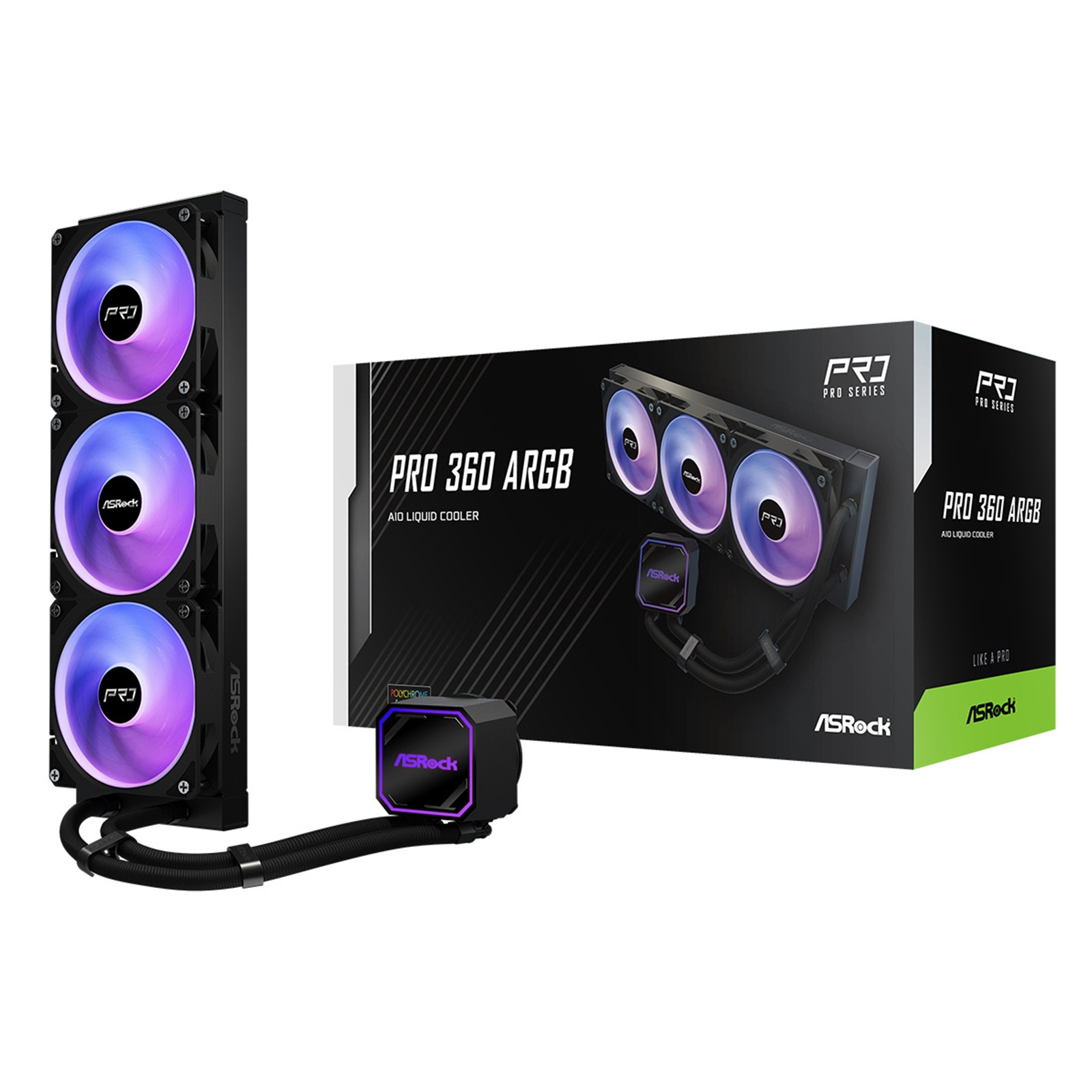

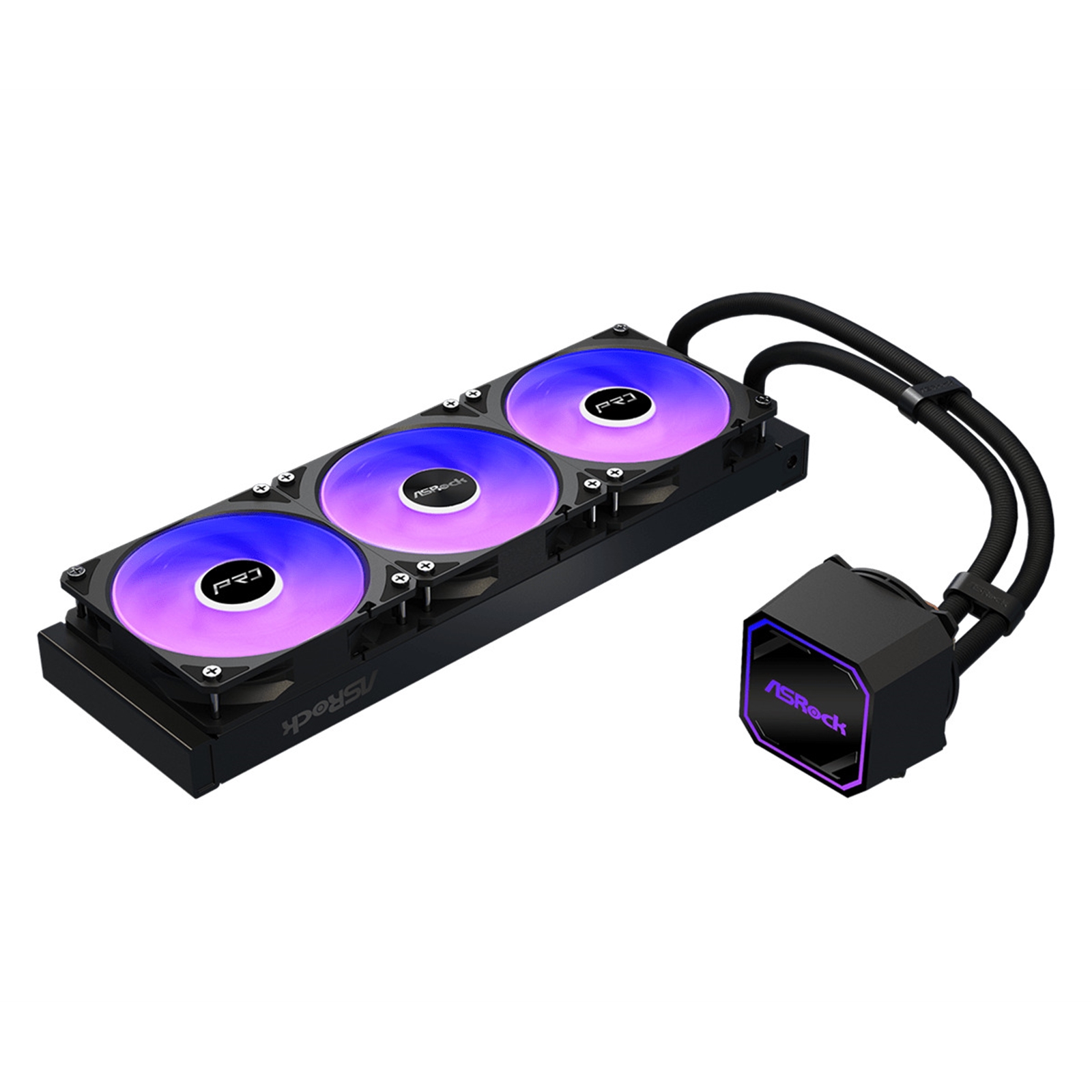

ASRock Pro 360 ARGB AIO Liquid CPU Cooler



Pro 360 ARGB

Optimized for stability, durability, and efficiency. The Pro AIO liquid cooler combines reliable performance, user-friendly features and streamlined style for daily computing tasks.



Pro Series

Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.

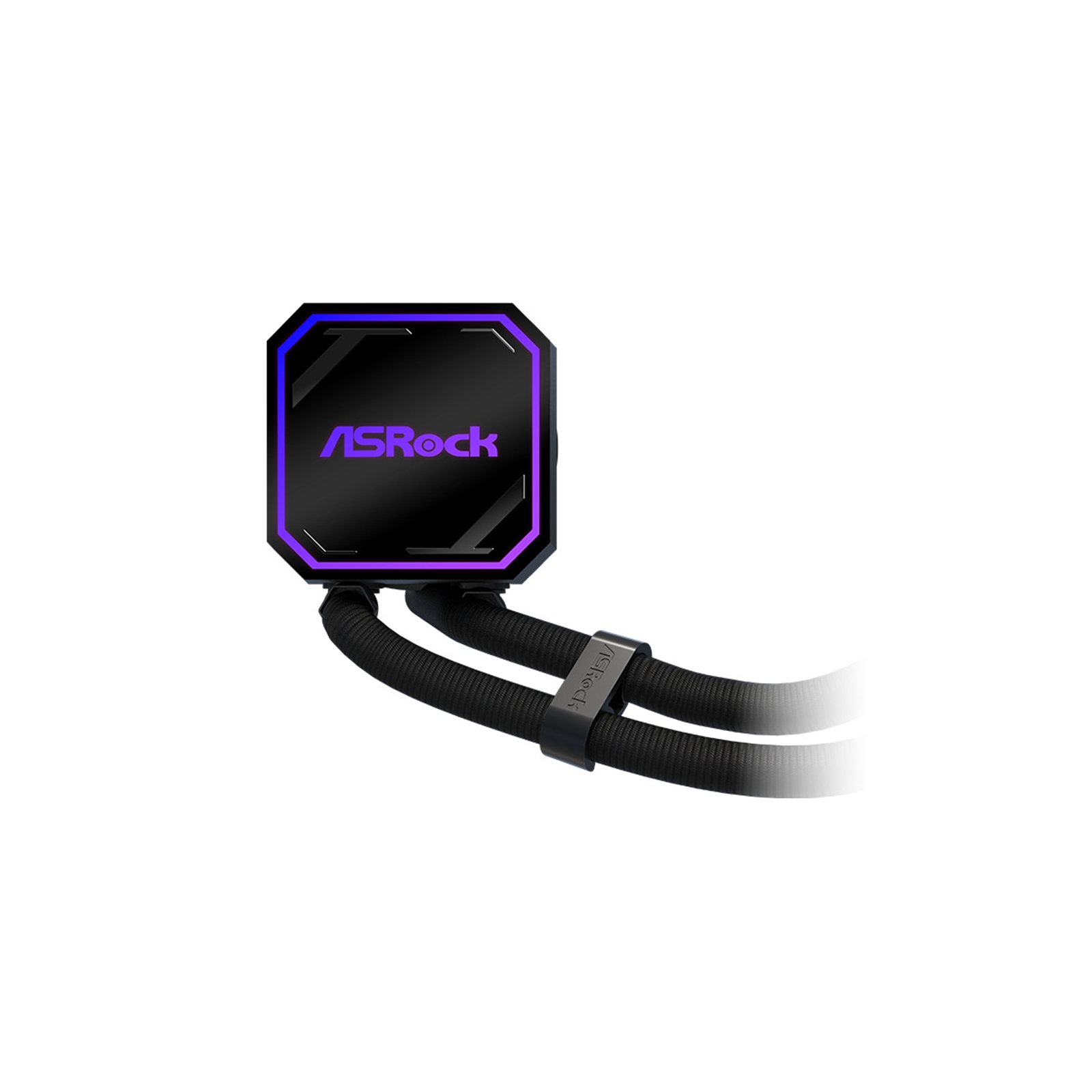

Dynamic ARGB Water Block

Crafted with a durable polycarbonate top cover, the water block delivers brilliant, evenly diffused lighting for a vivid and refined glow.



Challenger Driver Installation

Install the Challenger Driver to display system information and adjust mode switching time.



Next-Gen Cooling System



Next-Gen Cooling Pump



Precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor for stronger flow, extended durability, and peak cooling performance for unwavering CPU stability.



Continuous Magnetic Field: – Continuous rotating magnetic field for higher energy conversion efficiency.

Low Torque Ripple: – Low torque ripple ensures smooth and stable operation.

Balanced Current Load: – Balanced current distribution minimizes copper loss.

Reduced Core Loss: – Reduced core loss improves overall operating efficiency.

Lower Thermal Output: – Lower thermal output maintains efficiency during prolonged operation.

Simplified Motor Architecture: – No starting capacitors or coils required, improving reliability.



Dual-Side Inlet Cooling Path

The dual-side inlet cooling path design shortens coolant flow distance while ensuring balanced distribution across the high-density micro-fin array. By delivering coolant directly to the CPU hot spot from multiple directions, the design helps keep temperatures more even and improves overall thermal efficiency.



Ring-Frame Blade Design

The Ring-Frame Blade design features reinforced structure to optimize airflow concentration, generating stronger static pressure and deeper radiator penetration.



0dB Silent Cooling Technology

Fan stops completely under low load for absolute silence and extended lifespan.

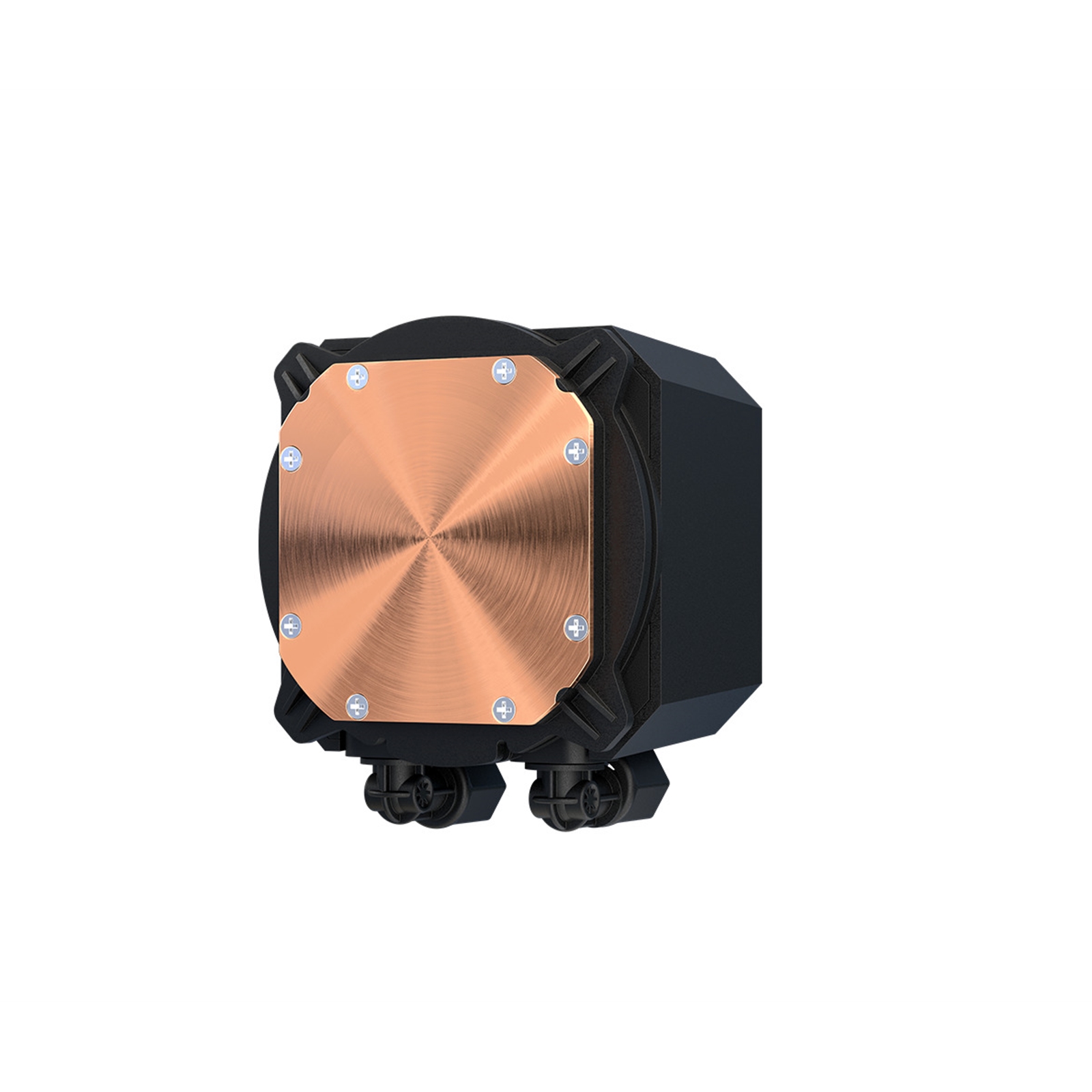

Precision-Machined Copper Cold Plate

Finely crafted for flawless surface contact, delivering superior heat conductivity and long-lasting cooling performance.



Brilliant ARGB Lighting Effect

Delivers vivid, customizable lighting for a dynamic and immersive build.



POLYCHROME RGB

Simply connect the 3-pin ARGB header to an ASRock motherboard to unlock Polychrome SYNC support, experience perfectly synchronized, full-system RGB illumination with seamless control.



SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. ASRock AIO Liquid Coolers have passed comprehensive SignalRGB compatibility testing, ensuring reliable control of the LCD display and lighting effects through the SignalRGB software.



ASRock Therm-X1 Thermal Grease

High thermal conductivity enables efficient heat transfer, enhancing system stability and extending CPU lifespan.



Specifications



Model Number

90-APRA36-BAAGA6



Compatibility

AMD:AM5, AM4

Intel:LGA1851, 1700



Water Block

Dimension:(L)71.3 x (W)84.1 x (H)53.9 mm

Material (Cold Plate):Copper

LEDs :ARGB



Radiator

Dimension:(L)394 x (W)119.6 x (H)27 mm

Material:Aluminum



Pump

Speed:1200 – 3200 ± 10% RPM

Current/ Voltage:0.72A/ 12V

Connector:PWM (4-Pin)



Radiator Fan

Dimension:(L)120 x (W)120 x (H)25.4 mm

Speed:0 – 2100 ± 10% RPM

Air Flow:(Max.) 62.6 CFM

Air Pressure:(Max.) 1.77 mmH20

Noise:(Max.) 31 dB(A)

Connector:PWM (4-Pin)

Current/ Voltage:0.18A/ 12V

Bearing:Rifle Bearing

LEDs :ARGB Gen1



Tubing

Material:IIR + EPDM

Length:450mm
