| Key Specifications | |
|---|---|
| Chipset | Radeon RX 9060 XT |

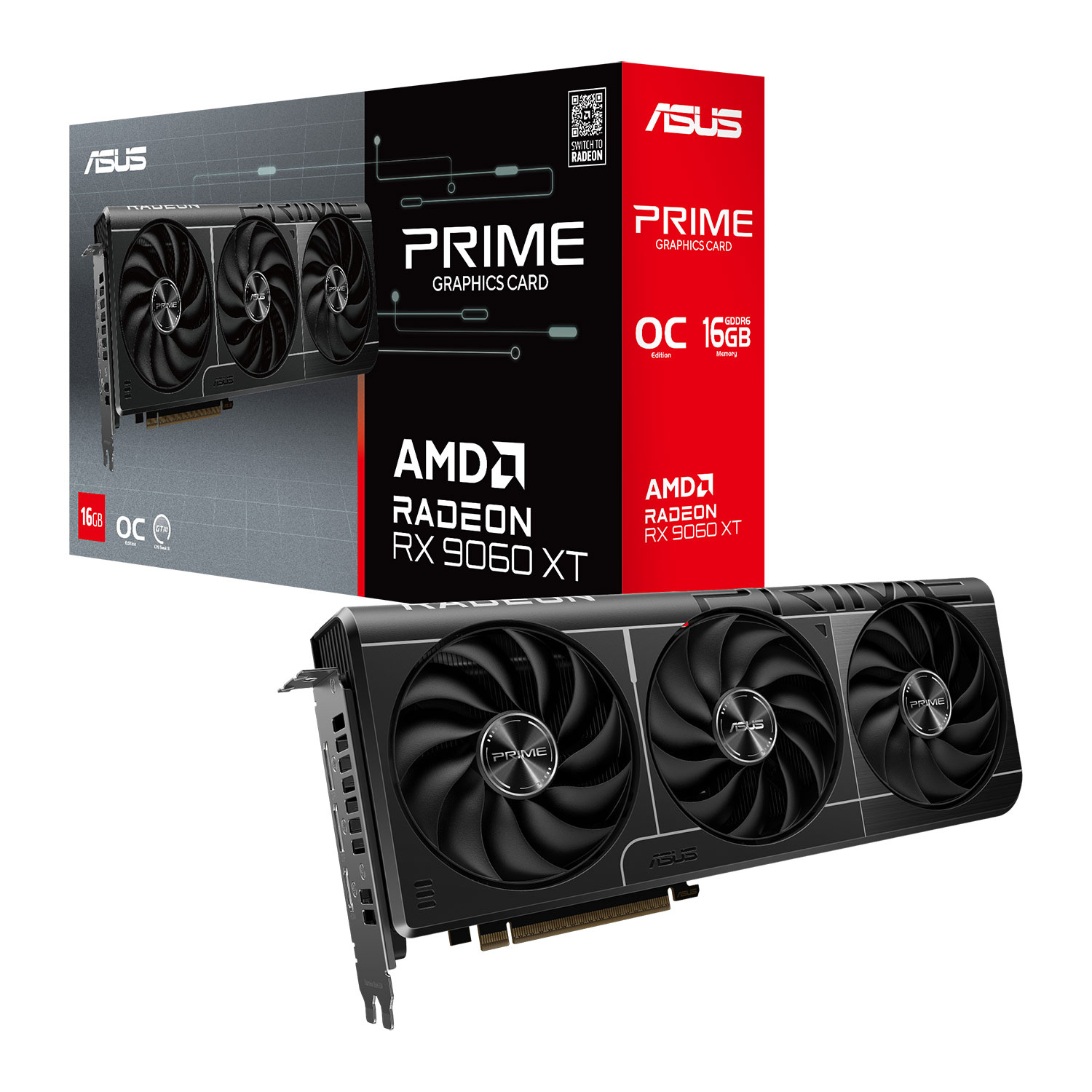

| Edition | Prime Radeon™ RX 9060 XT 16GB GDDR6 OC Edition |
| Manufacturing Process | 4 nm |
| Microarchitecture | RDNA 4 |
| Cores & Clocks | |
|---|---|
| Streams | 2048 |
| Core Clock | |
| Boost Clock | 3330 MHz |
| Video Memory (VRAM) | |
|---|---|
| Memory Size | 16GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 Bit |
| Memory Bandwidth | |
| Cooling | |
|---|---|
| Cooling Solution | Tri Fan (3) |
| Fitted/Included Backplate | Yes |
| I/O & Connectivity | |
|---|---|
| Interface | PCIe 5.0 (x16) |
| Connectivity |
|
| Visuals | |
|---|---|
| AMD CrossFire Support | |
| AMD Freesync Support | Yes |
| HDR Support | Yes |
| Microsoft DirectX Support | 12 API |
| Max. Concurrent Displays | 3 Displays |
| Maximum Digital Resolution | 7680×4320 (8K UHD) |
| Maximum Analog (VGA) Resolution | |
| Compute Performance | |
|---|---|
| Peak Half Precision Compute Performance (FP16) | |
| Peak Single Precision Compute Performance (FP32) | |
| Peak Double Precision Compute Performance (FP64) | |
| Power & Thermals | |
|---|---|
| Graphics Card Power Connectors | 1 x 8-pin PCIe |
| Graphics Card TDP/Power | |
| Minimum Recommended PSU | 550 W |
| Maximum GPU Temperature | |
| Physical | |
|---|---|
| Width | 2.5 Slot |
| Low Profile Support | |
| Dimensions | 304 x 126 x 50 mm |
| Package Type | Retail |
| Additional Information | |
|---|---|
| Scan Code | LN160085 |
| Model Number | PRIME-RX9060XT-O16G |
| GTIN | 4711387994214 |
