Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD A520
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
Up to 4866(OC)
Maximum Memory
128GB
Graphics
Integrated Graphics Processor*
Graphics specifications may vary between CPU types
Graphics Ports
1 x VGA
1 x HDMI
1 x DisplayPort
1 x HDMI
1 x DisplayPort
PCI/PCI Express
1 x PCIe 3.0 x16 (supports x16 mode)
2 x PCIe 3.0 x1
2 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) – SATA & PCIe
1 x M.2 (2242/2260/2280) – SATA & PCIe
RAID
RAID 0, 1, 10
Wireless
–
LAN
GB LAN
Audio
–
USB Ports Supported
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

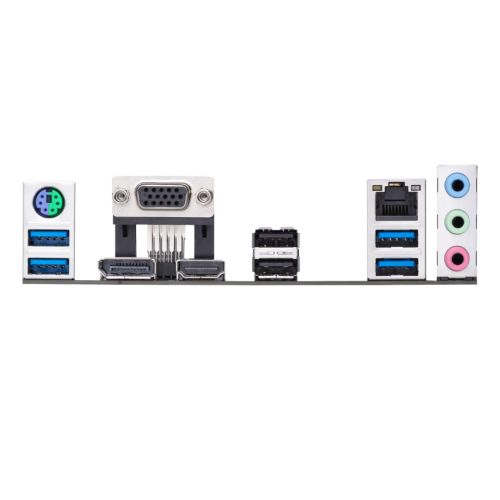

Back Panel I/O Ports
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
1 x DisplayPort
1 x HDMI
1 x D-Sub
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
2 x USB 2.0 Type-A
1 x DisplayPort
1 x HDMI
1 x D-Sub
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x COM Port
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x Support DVD
1 x User manual
1 x I/O Shield
1 x M.2 SSD screw package
1 x Support DVD
1 x User manual
Additional Features
See Overview
Package Type
Retail
Package Weight
1.1000 kg
Warranty
3 Years
Full Box Quantity
10
Manufacturer Link
