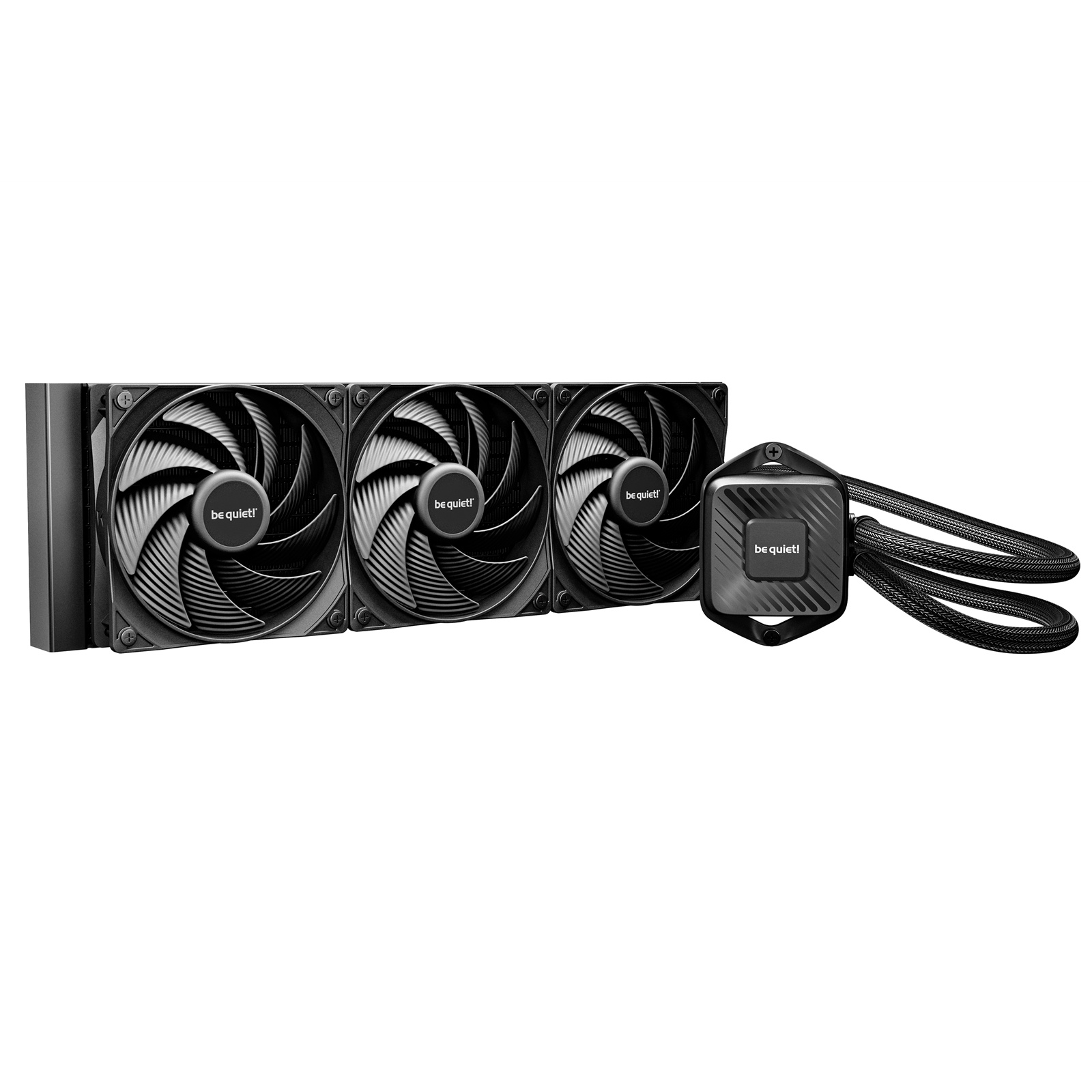

be quiet! (BW029) SUPREME AND QUIET COOLING



Pure Loop 3 360mm is the impressively high-performing and silent All-in-One water cooling unit for users with overclocked systems. Pure Loop 3 360mm is for all the purists out there that like their cooling power subtle and unagitated.



Impressively high cooling performance for all consumer CPUs

State-of-the-art PWM pump with 6-pole motor reduces vibrations to an absolute minimum

3 Pure Wings 3 120mm PWM high-speed fans with closed loop motor and funnel-shaped air outlet offer high static pressure with very quiet operation

Daisy-chained PWM fans for maximum convenience

Flexible sleeved tubes and a simple mounting ensure easy handling

Easy-to-access refill port for convenient handling

Neat design language with elegant looks and subtle details

3-year manufacturer's warranty

Product conception, design and quality control in Germany



Specifications



General data



Model Pure Loop 3 | 360mm

Color option – N/A

Dimensions radiator, incl. fan (H x W x D), (mm) 397 x 120 x 52

Dimensions cooling block (H x W x D), (mm) 68.5 x 93.4 x 44.9

Total weight (kg) 1.250

Socket compatibility Intel 1851 / 1700 / 1200 / 1151 / 1150 / 1155

Socket compatibility AMD AM5 / AM4

Noise level (dB(A)) at 50% / 75% /100% rpm 17.6 / 29.3 / 37.2

Number of fans 3

Lighting connector – No

Tube length (mm) 400

Refill port Yes



Pump specifications



Pump speed (rpm) 5500

Pump adjustable (rpm) 3000 – 5500

Pump connector 4-pin PWM

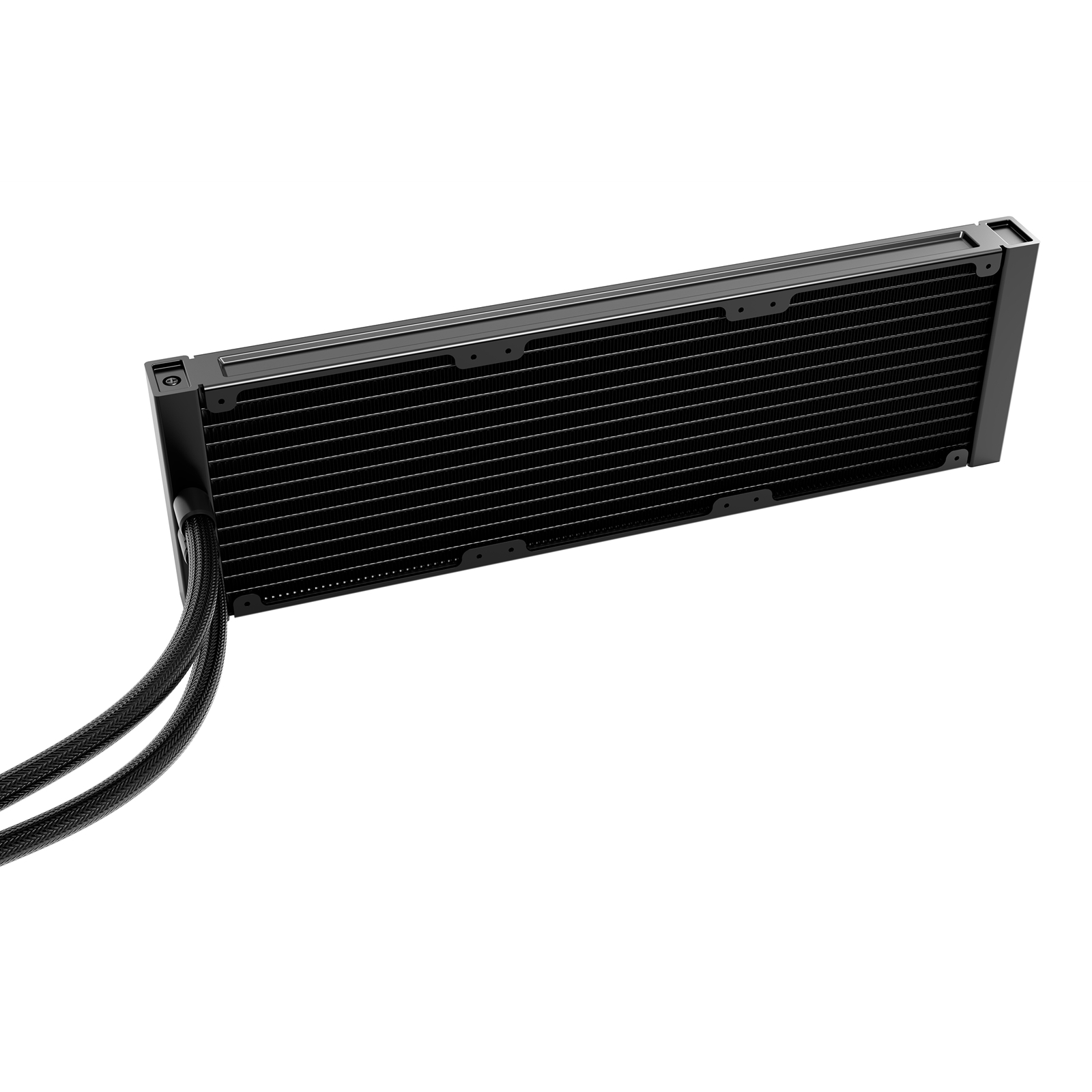

Radiator specifications



Dimensions (L x W x H), (mm) 397 x 120 x 27

Radiator material / finish Aluminum

Base material / finish copper



Fan specifications



Fan model Pure Wings 3 120mm PWM high-speed

Fan dimensions (mm) 120 x 25 x 120

Speed at 100% PWM (rpm) 2100

Airflow at 100% PWM / 12V (cfm / m3/h) 59.6 / 101.2

Air pressure at 100% PWM / 12V (mm H2O) 2.41

Bearing technology Rifle

Motor technology 4-pole

Rated voltage (V) 12

Input current (A) 0.13

Safety current (A) 0.45

Input power (W) 5.4

Connector 4-pin PWM

Cable length (mm) 30 / 90mm + daisy chain

Lifespan (h / 25°C) 80,000



Accessories



Thermal grease (Type) Included

Mounting set Intel, AMD

Adapter cables 4-Pin PWM extension

Bottle of coolant (ml) – No

ARGB controller with SATA cable – No

ARGB-PWM-Hub – No

User manual languages CN, DE, EN, ES, FR, JP, PL, RU, TW



Safety certifications



Approvals CE, UKCA, FCC



Environmental directives



RoHS Yes

WEEE Yes

Triman Yes



Service



Warranty (Years) 3

International hotline / free of charge Yes / DE, FR, US



Logistics data



Dimensions, package (L x W x H), (mm) 461 x 206 x 138

Gross weight, package (kg) 2.14

Pieces per packaging unit 4

Dimensions, shipping box (L x W x H), (mm) 476 x 430 x 305

Gross weight, shipping box (kg) 9.92
