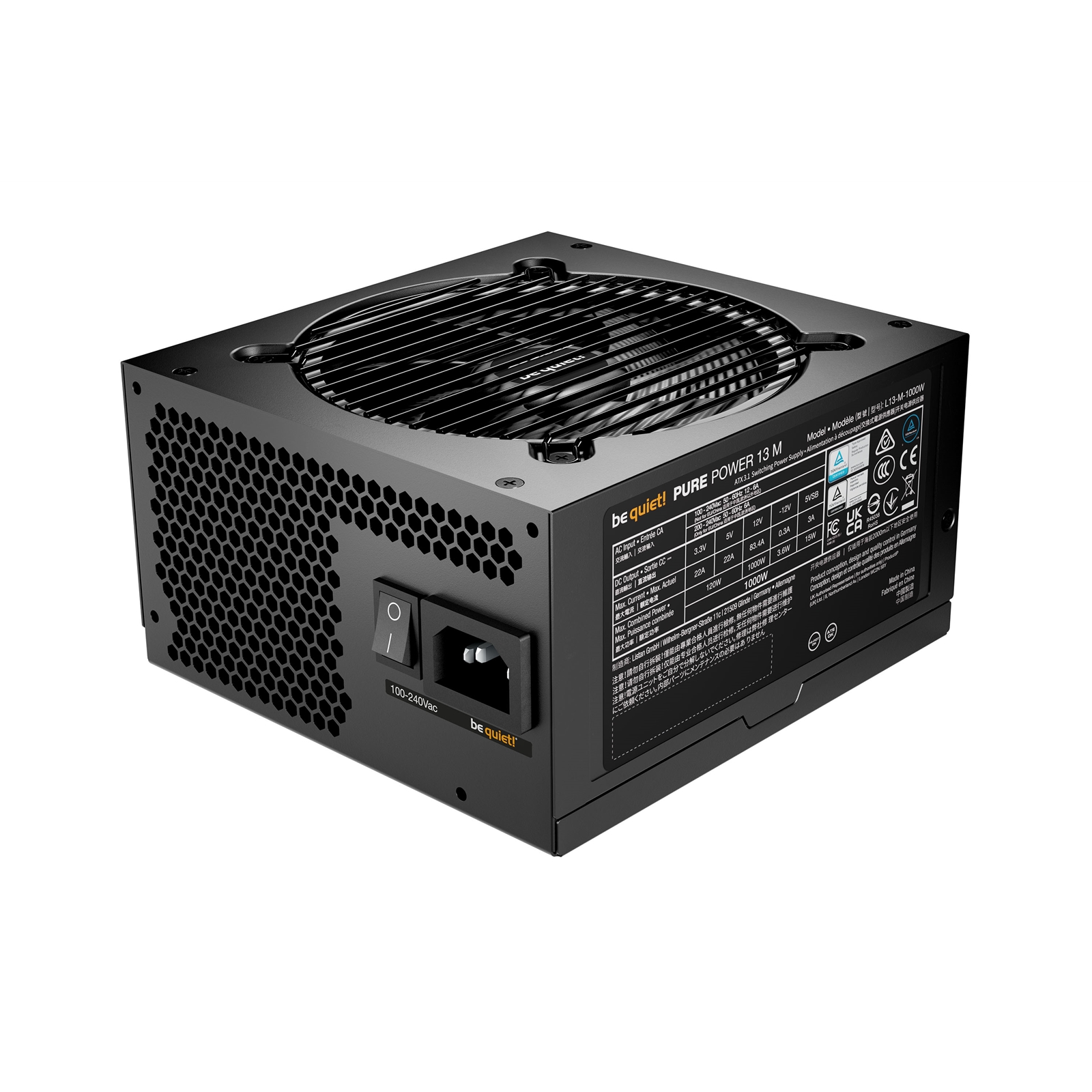

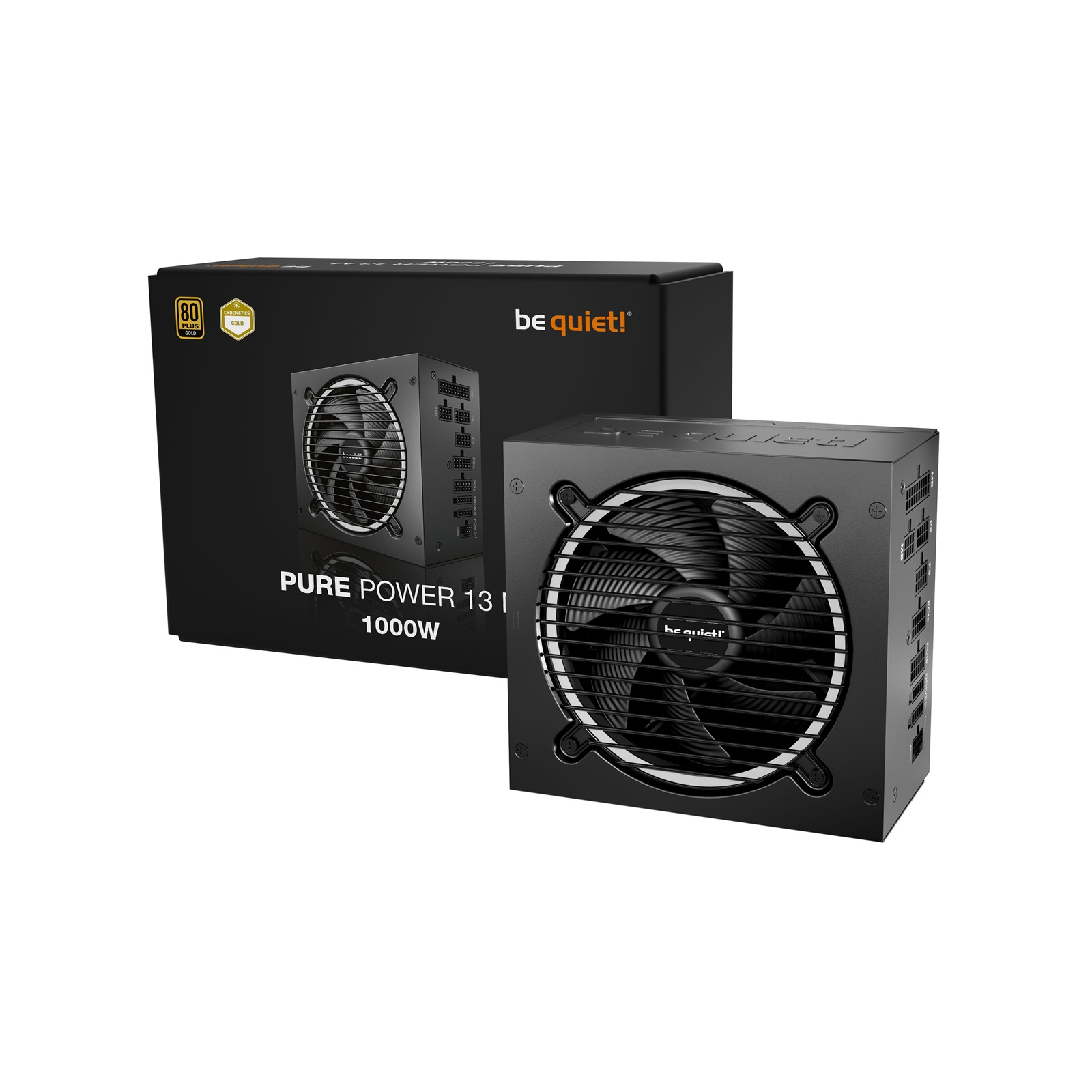

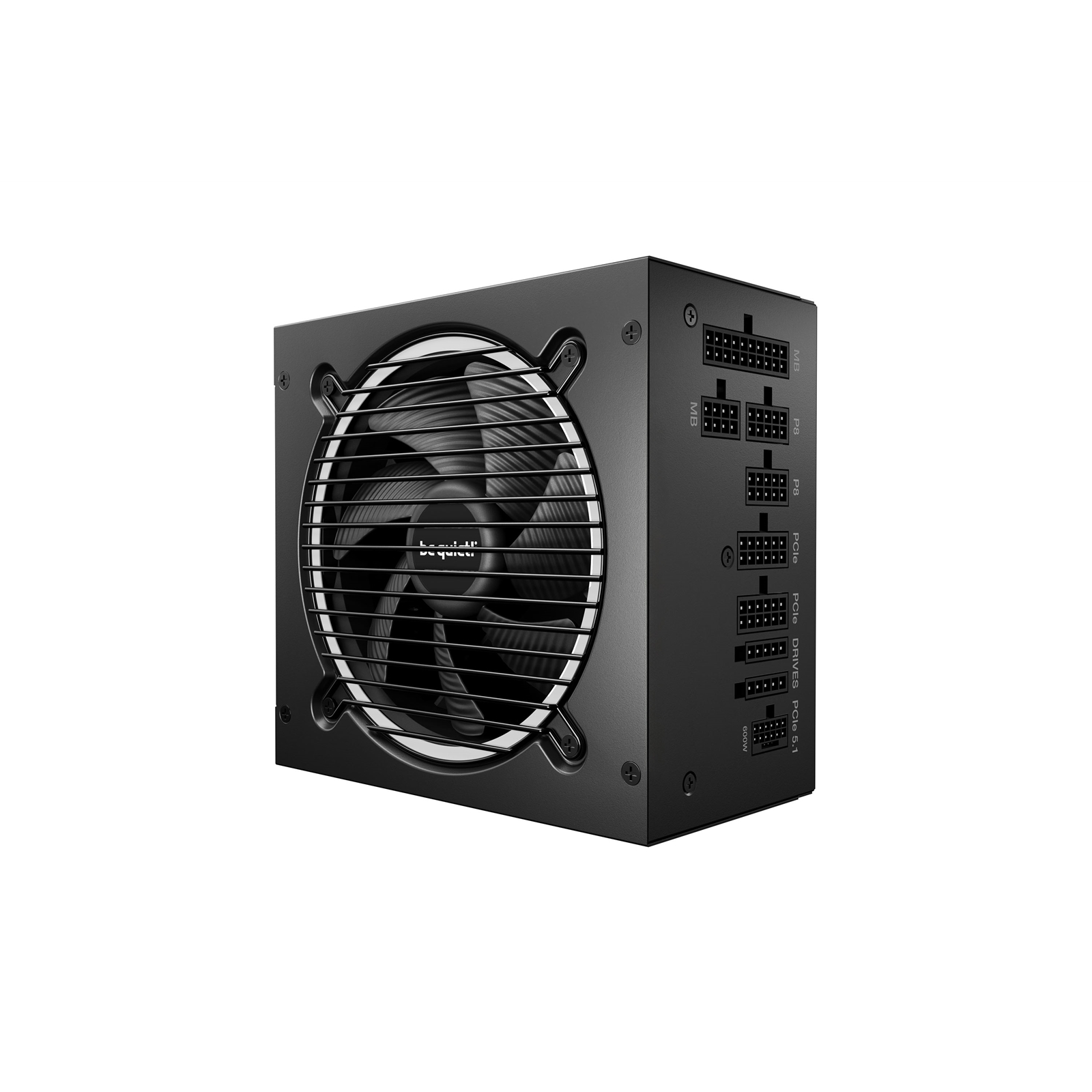

The be-quiet! Pure Power13M 1000W (MPNBP028EU) is a fully modular, high-efficiency PSU designed for advanced desktop systems. It meets ATX 3.1 standards and offers PCIe 5.1 compatibility, including a native 12V-2×6 connector for next-gen GPUs. Paired with 80 PLUS Gold certification and semi-passive (zero-RPM) cooling, it delivers whisper-quiet yet powerful performance, backed by robust protections and a 10-year warranty.



Key Features

Continuous / Peak Power: 1000W / up to 1050?W

Efficiency: 80 PLUS Gold, up to ~94.4% efficiency at 50% load

Compliance: ATX 3.1, EPS 12V v2.92

PCIe Support: 1 x 12V-2×6 connector (600?W), plus 4 x 6+2-pin PCIe connectors

Rail Design: Single massive 12V rail that handles power spikes reliably

Cooling: 120mm rifle-bearing fan with zero-RPM operation at low load

Topology: LLC with digital control for tight voltage regulation

Modularity: Fully modular flat and sleeved cables for clean build layout

Warranty: 10-year manufacturer's warranty, MTBF =100,000hours



Full Technical Specification



Model / MPN:

Pure Power 13 M 1000W (BP028EU)



Form Factor:

ATX 3.1 (EPS 12V v2.92)



Power Output:

1000W continuous / 1050W peak



Efficiency Rating:

80 PLUS Gold (up to ~94.4% at 50% load)



Input Voltage:

100–240VAC



Input Frequency:

50–60Hz



Input Current:

~6A @ 240VAC, ~12A @ 120VAC



Power Factor:

=0.98 at full load



Modern Standby:

Supported; <0.1W standby consumption



Operating Temperature:

Up to 40°C



MTBF:

=100,000 hours at 25°C



Rail Operation:

Single powerful 12V rail (up to 83A)



Additional Rails:

3.3V / 5V rails at 22A each; -12?V, +5VSB outputs supported



Hold-up Time:

~21ms at full load; ~28ms at 80% load



Protections:

OCP, OVP, UVP, OPP, OTP, SCP, surge/inrush protection



Fan:

120mm rifle-bearing, semi-passive zero-RPM at low load



Noise Levels:

~13.6dB(A) at ~20% load; ~30.3dB(A) at full load



Modularity:

Fully modular cables, flat and sleeved style



Cable Length:

Up to ~95cm total; ~55cm to motherboard



Connectors:

1 x 20+4-pin ATX

1 x 4+4-pin CPU (EPS)

1 x 8-pin CPU

1 x 12V-2×6 (600W)

4 x 6+2-pin PCIe

6 x SATA power

2 x Molex (PATA)



Dimensions:

~160x150x86mm (WxDxH)



Warranty:

10-year limited warranty
