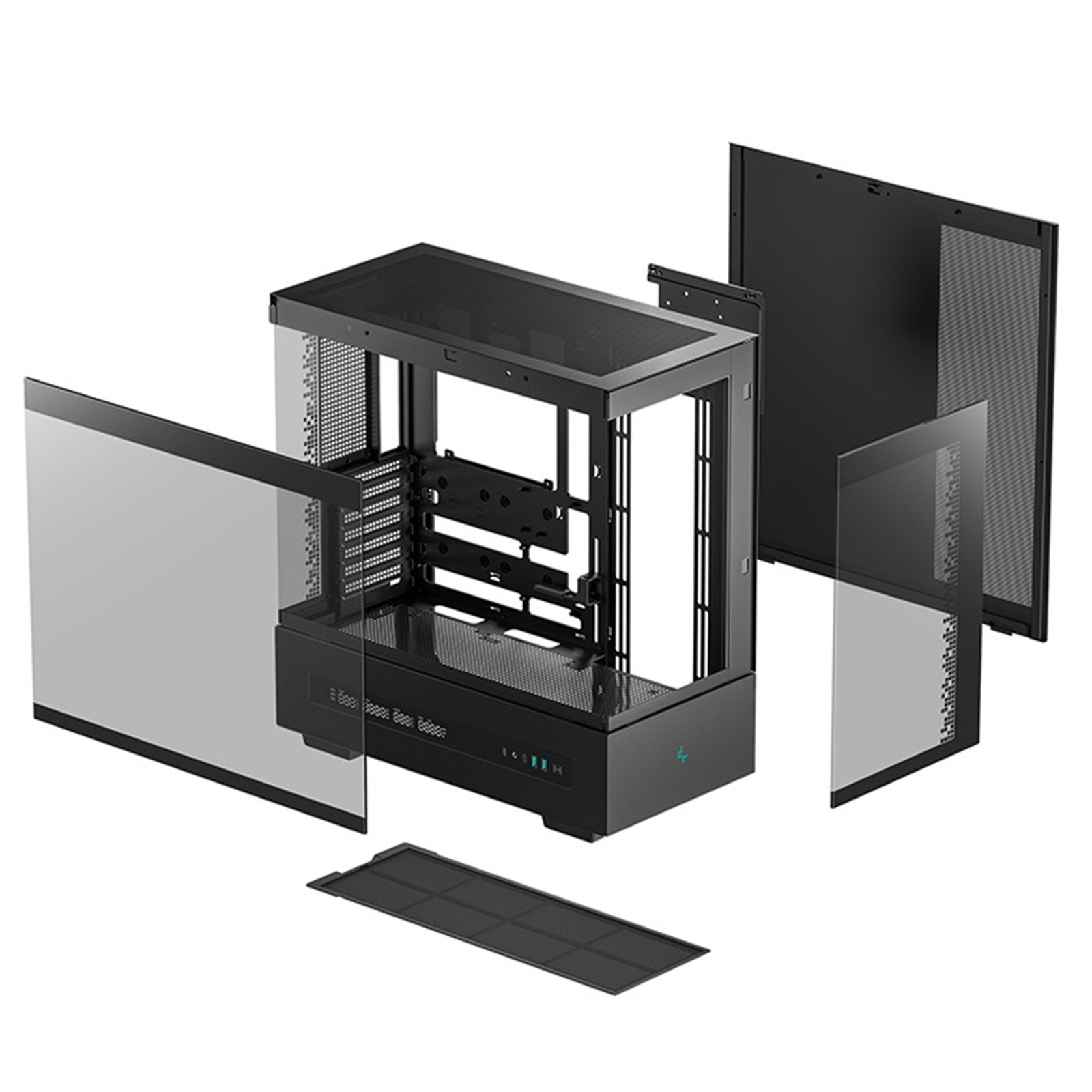

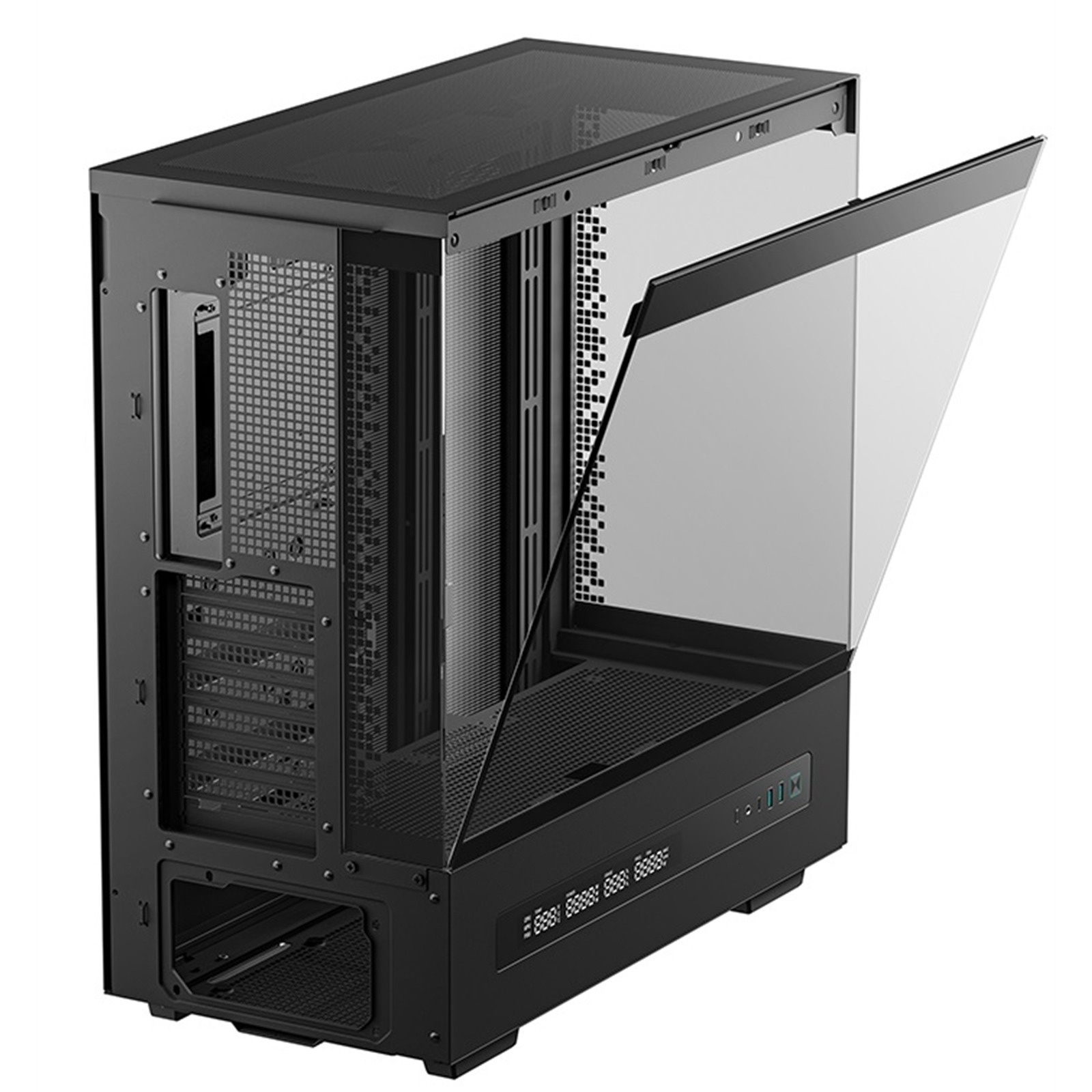

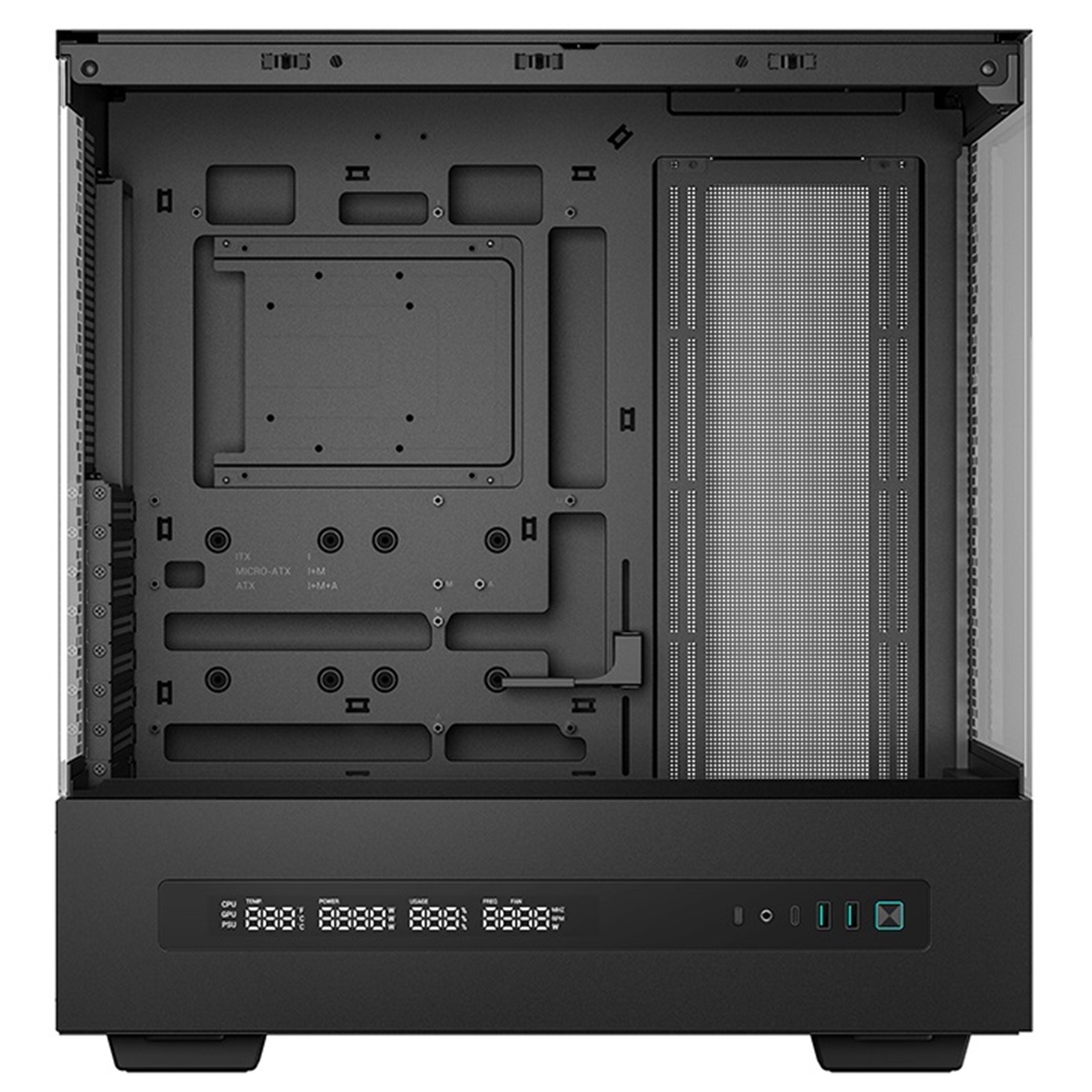

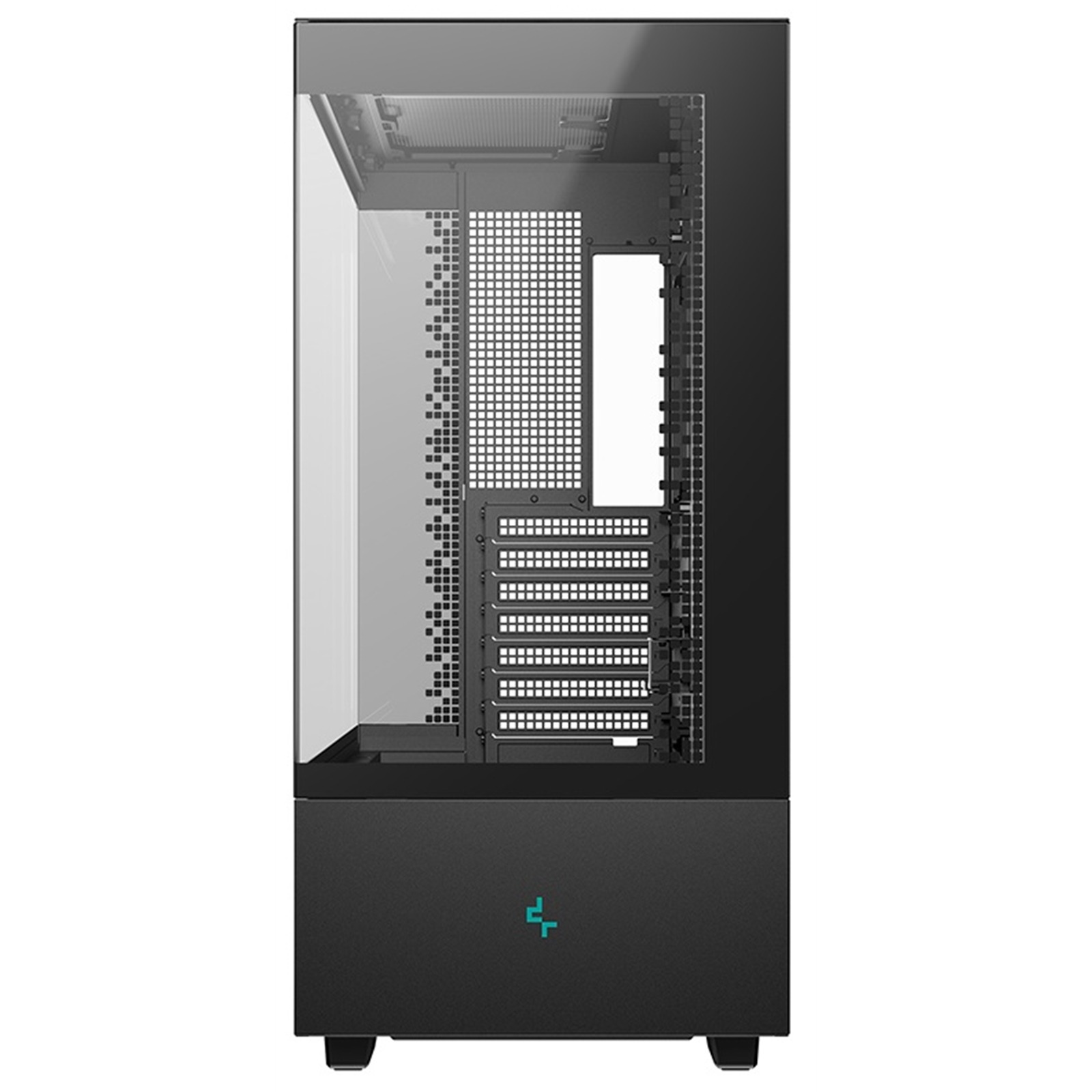

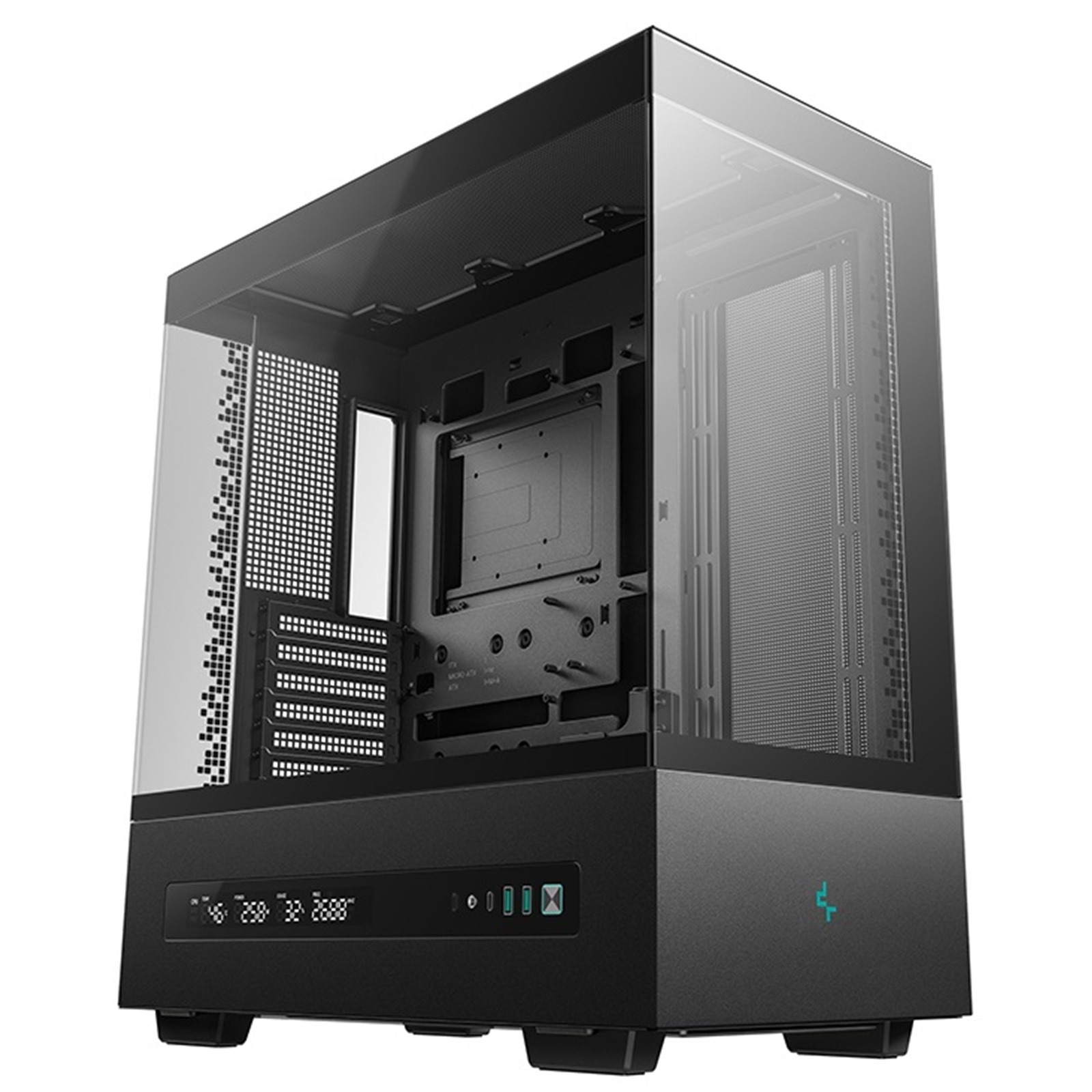

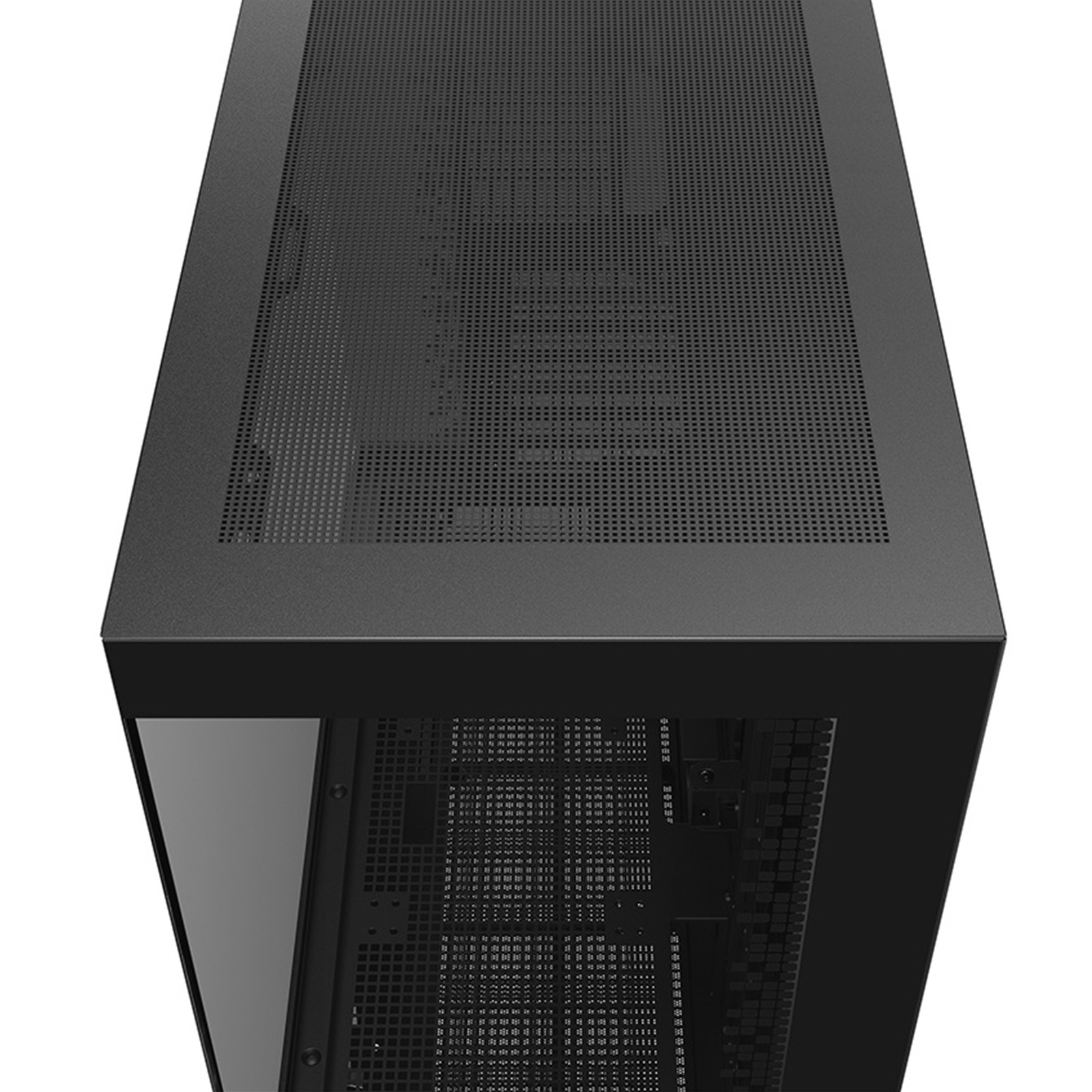

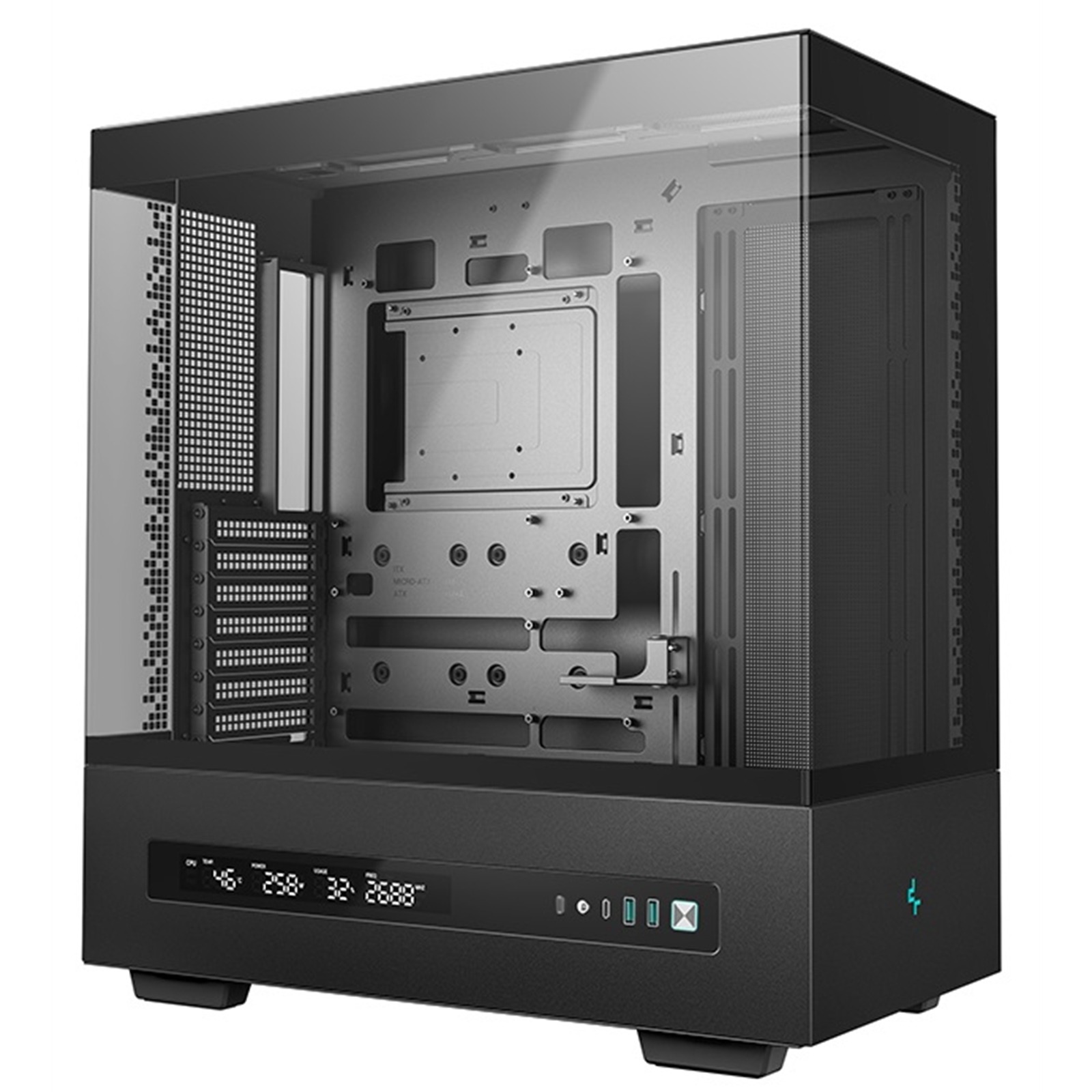

The DeepCool CH690 Digital Black ATX Case is designed with beauty and adaptability in mind. It features a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.



Specifications

Model Number:

R-CH690-BKNNA0D-G-1



Case Type:

Mid-Tower



Motherboard Support:

Mini-ITX, Micro-ATX, ATX



Dimensions:

552mm (L) x 332mm (W) x 589mm (H)



Net Weight:

9.8 kg



Materials:

ABS, SPCC, Tempered Glass



Front I/O Ports:

2 x USB 3.0

1 x USB Type-C (Gen 2)

1 x HD Audio/Mic



Drive Bays:

1 x 3.5" Drive Bay

2 x 2.5" Drive Bays



Expansion Slots:

8



Pre-Installed Fans:

None



Fan Support:

Top: 3 x 120mm / 3 x 140mm

Side: 3 x 120mm / 3 x 140mm

PSU Shroud: 3 x 120mm / 3 x 140mm

Rear: 1 x 120mm / 1 x 140mm



Radiator Support:

Top: 120mm / 140mm / 240mm / 280mm / 360mm / 420mm

Side: 120mm / 140mm / 240mm / 280mm

PSU Shroud: 120mm / 240mm / 360mm



CPU Cooler Height Limit:

182mm



GPU Length Limit:

450mm



Power Supply Type:

ATX PS2 (maximum length: 180mm)



Warranty:

1 Year
