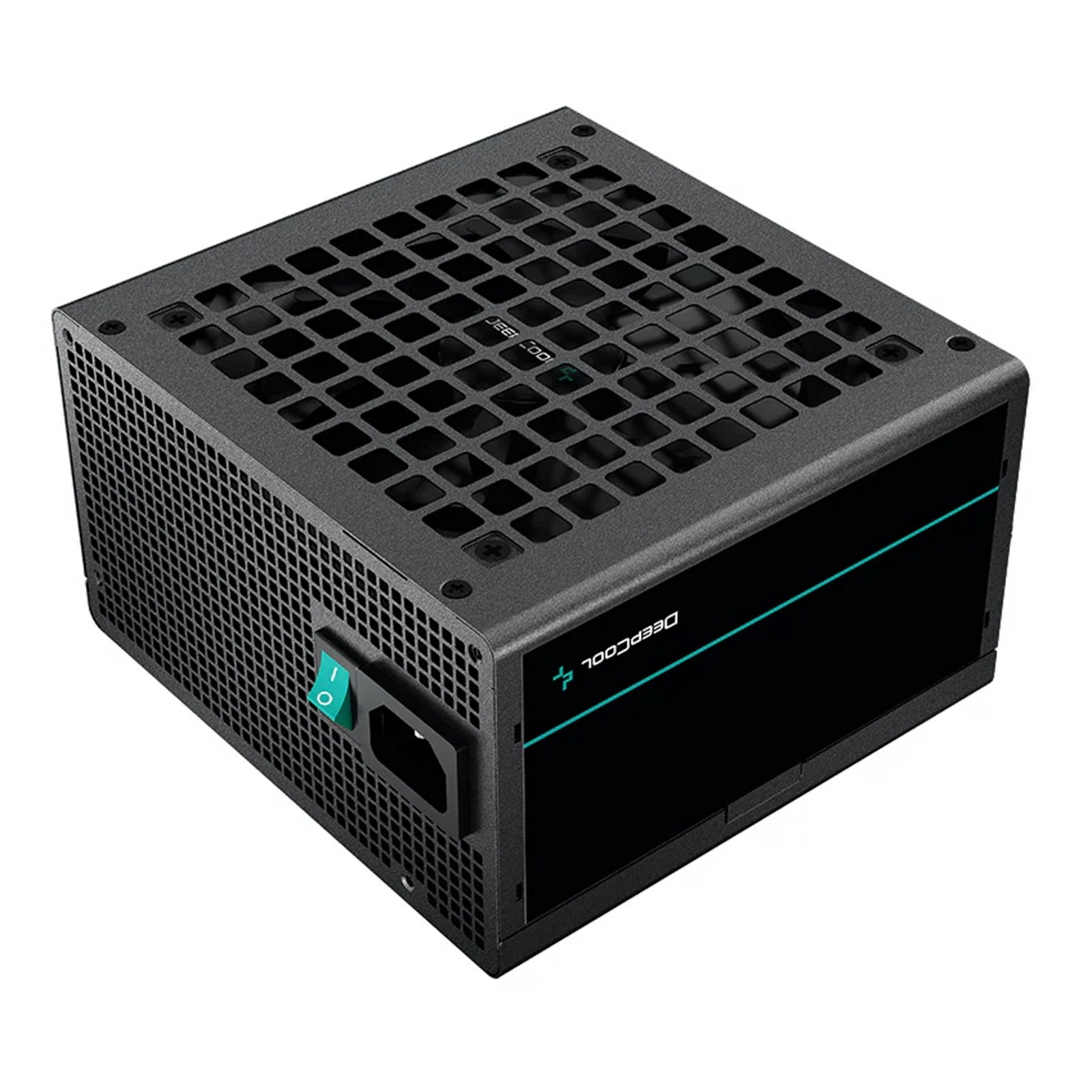

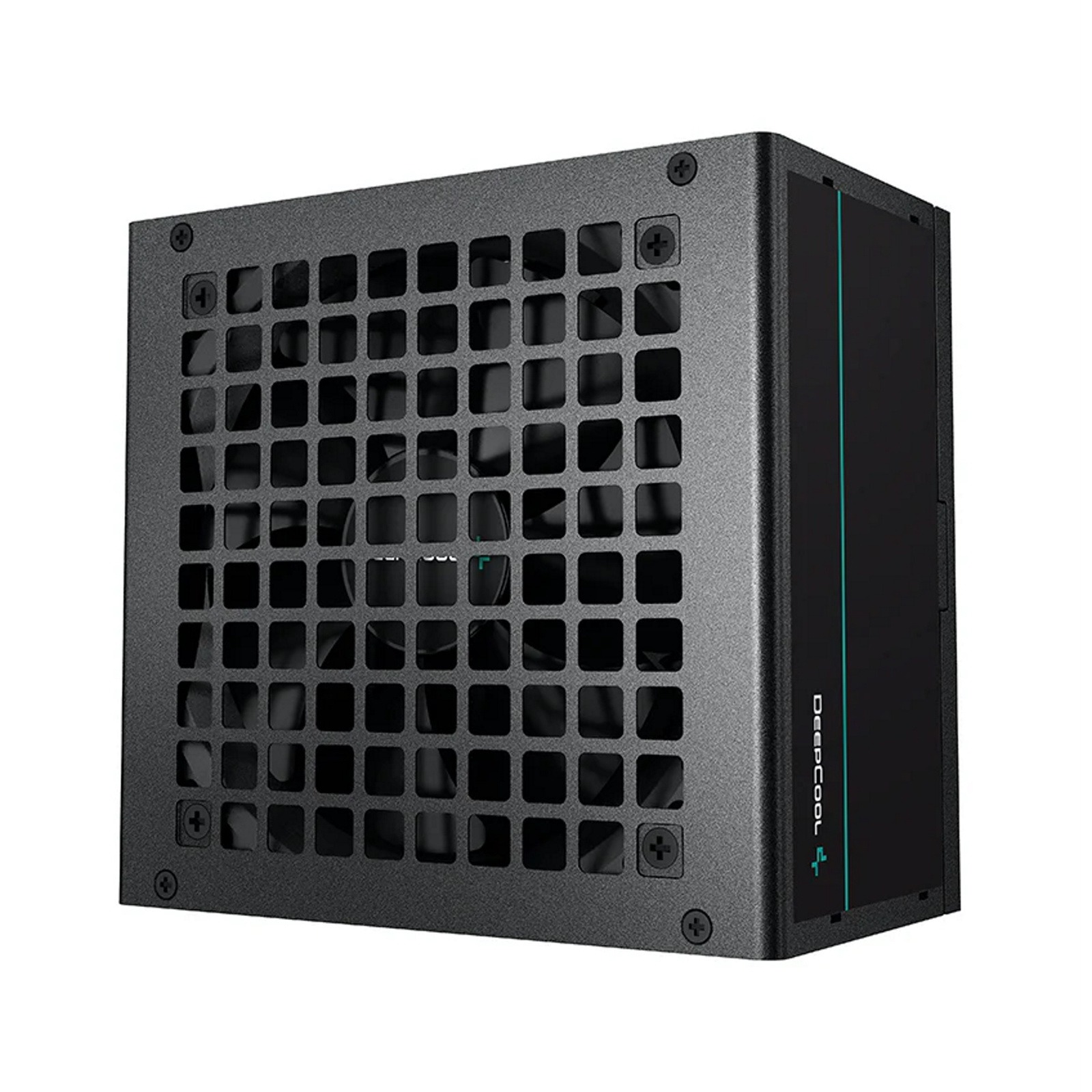

PF500

80 PLUS Standard Power Supply



The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.



TO HIGHER STANDARDS

Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.



SILENT HYDRAULIC BEARING FAN

Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

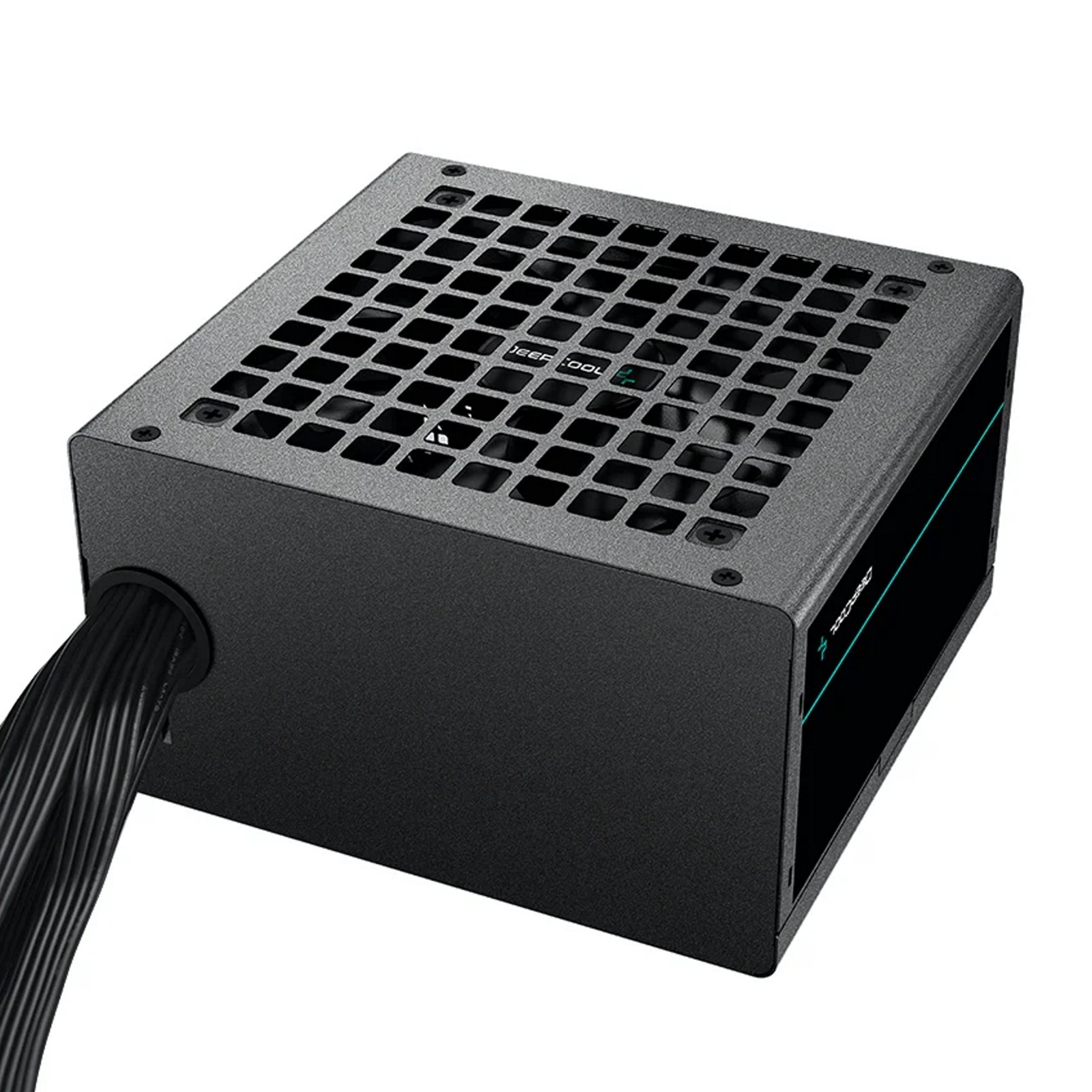

FLAT BLACK CABLES

Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.



RELIABLE PROTECTION

Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.

OPP – Over Power Protection

OVP – Over Voltage Protection

SCP – Short Circuit Protection

UVP – Under Voltage Protection



Type

ATX 12V V2.4



80 PLUS Certifications

WHITE



Fan Size

120mm



Fan Bearing

Hydro Bearing



Topology

Active PFC + Double tube forward



Capacitors

Taiwan bulk capacitor



Power Good Signal

100-500ms



Hold Up Time

=16ms (75% Load)



Efficiency

=85% Under Typical Load (50% Loading)



Protection

OPP/OVP/SCP/UVP



Operation Temperature

0-40°C



Regulatory

CB/CCC/CE/UKCA/EAC/RCM/BIS



Regulation

ErP(2010)



MTBF

100,000 Hours



Connections

1 x Main Power Connector 24-Pin (20+4)

1 x EPS 12V Connector 8-Pin (4+4)

2 x PCIE 6+2 Pin (x1)

6 x SATA (x2)

2 x 4-Pin Peripheral (x2)



Product Dimension ( W x L x H )

150 x 140 x 86mm
