Product description
Club 3D Multi-Stream Transport (MST) Hub receives a Display Port 1.2a MST signal from the source device and splits up and routes the video stream independently to each display device. The MST Hub also allows the connection of HDMI monitors to be connected to the Display Port source. These include HDMI Monitors and Televisions. The MST Hub will help increase productivity in the office and increase enjoyment of games at home. Productivity can increase on average of 42% (Jon Peddle Research). The Club3D MST Hubs have been tested with Microsoft Surface Pro 2/3. The MST Hub will enable multi-display configuration for the Surface Pro2/3. Club3D MST Hubs can support up to 6 displays when used with the AMD Radeon based graphics cards. It can support independent screens or support SLS mode (Single Large Surface).

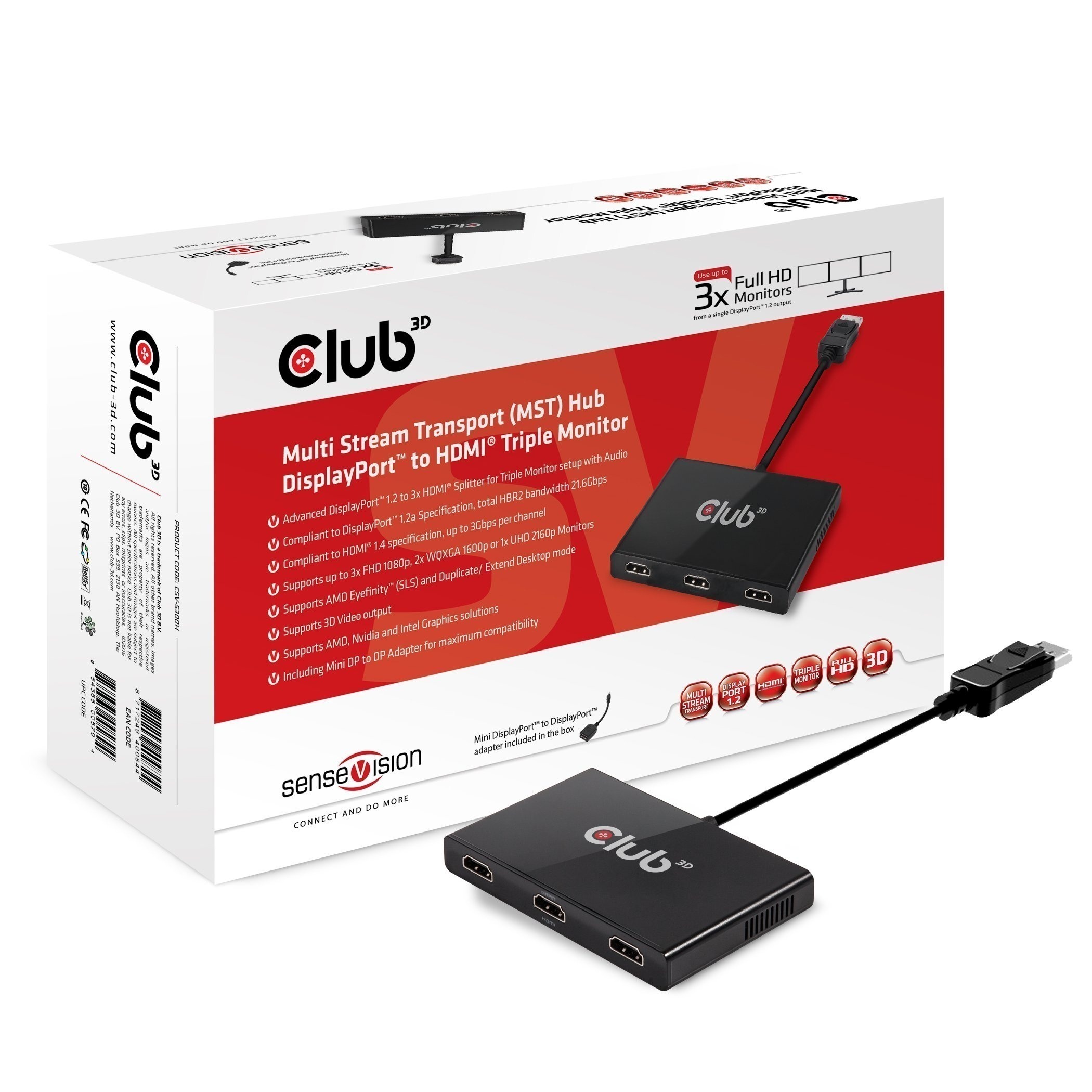

Multi Stream Transport (MST) Hub DisplayPort to HDMI Triple Monitor
CSV-5300H
 |
 |
 |
 |
|---|---|---|---|
 |
 |
 |
 |
|---|---|---|---|
Multi Stream Transport (MST) Hub DisplayPort to HDMI Triple Monitor
Display devices have always been a key part of the PC experience. PC Gamers want a more immersive experience and Professionals seek more desktop space to run apps side by side and increase their productivity. The easiest solution is to add multiple Monitors to an existing Laptop or Desktop PC.
The SenseVision MST Hub HDMI Triple Monitor utilises Multi Stream Transport, a unique DisplayPort 1.2 feature, to split a single DP 1.2 signal into multiple HDMI outputs. This enables Three Full HD HDMI Displays to be driven independently from one DisplayPort 1.2 output on the source device. With multiple Monitors, games become more immersive, workstations become more useful and you become more productive.
Features
- Compliant with: DisplayPort v1.2a, DisplayPort v1.1a, VESA DDM Standard, HDMI 1.4 Specification, HDCP 1.3 Content protection
- Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from source
- Supports three HDMI 1.4 ports
- Supported output resolutions : up to 3840x2160p @ 30Hz for Single Monitor, up to 2560X1600p @ 60Hz for Dual Monitors and up to 1920x1080p @ 60 for Three or Four Monitors.
- Supports Advanced Wide Eye SerDes technology enables high Jitter performance
- Supports Adaptive Sync technology
- Works with AMD, Nvidia and Intel HD Graphics solutions
- Including Mini DisplayPort to DisplayPort adapter for max compatibility
- Functionality may vary per GPU and OS
