Product Specifications

Product Name:

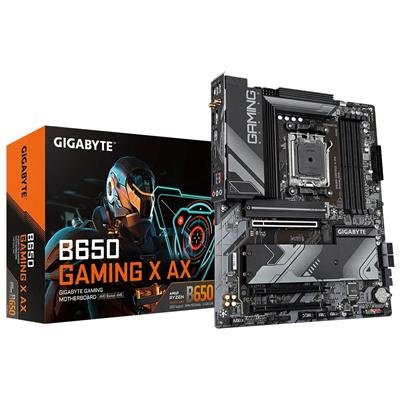

Gigabyte B650 GAMING X AX (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

B650 GAMING X AX

EAN:

4719331849849

UPC:

889523034156

Package Type:

Retail

Warranty:

3 Years

BIOS:



• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B650-GAMING-X-AX-rev-1x/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 6400 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

2

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

3 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 6E

Bluetooth:

v5.2

On-Board Audio:

Realtek Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

3

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x SMA antenna connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2×2:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):



• 2 x Addressable LED Strip Headers
• 2 x RGB LED Strip Headers
• 1 x CPU Cooler LED Strip/RGB LED Strip Header



Internal Button(s):



• 1 x Reset Button
• 1 x Reset Jumper
• 1 x Clear CMOS Jumper



Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

34cm

Package Height:

8cm

Gross Weight:

1.93Kg

Special Features:



• AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.
• Unparalleled Performance: Direct 8+2+1 Phases Digital VRM Solution.
• Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
• SuperSpeed Storage: 3 x PCIe 4.0 x4 M.2 Connectors.
• Advanced Thermal Design and M.2 Thermal Guard: To Ensure VRM Power Stability and 25110 M.2 SSD Performance.
• PCIe x16 EZ-Latch with Quick Release and Screwless Design.
• Fast Networks: 2.5GbE LAN and Wi-Fi 6E 802.11ax.
• Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.



Package Contents:



• Motherboard
• Manual
• 1 x Antenna
• 2 x SATA Cables
• M.2 screw
