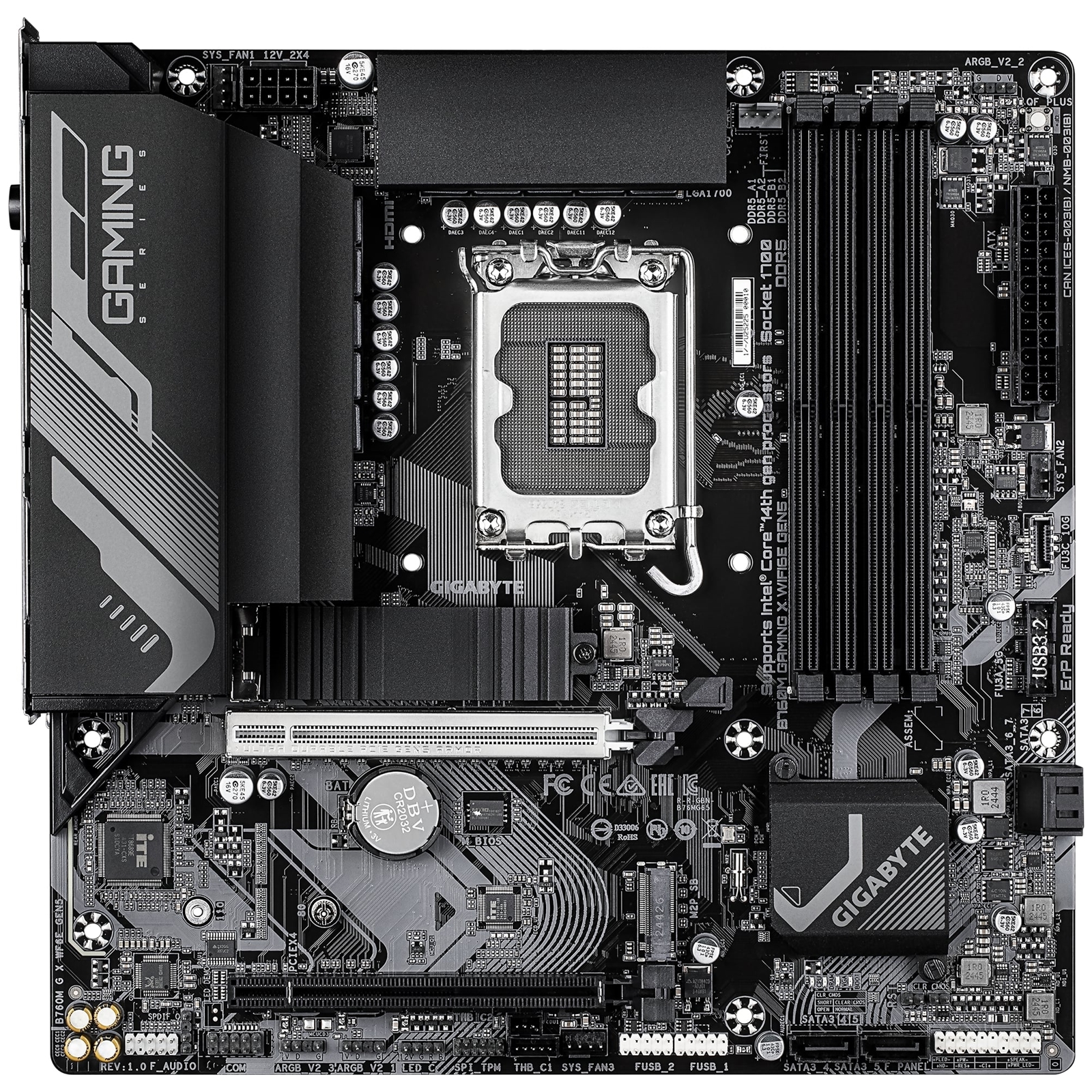

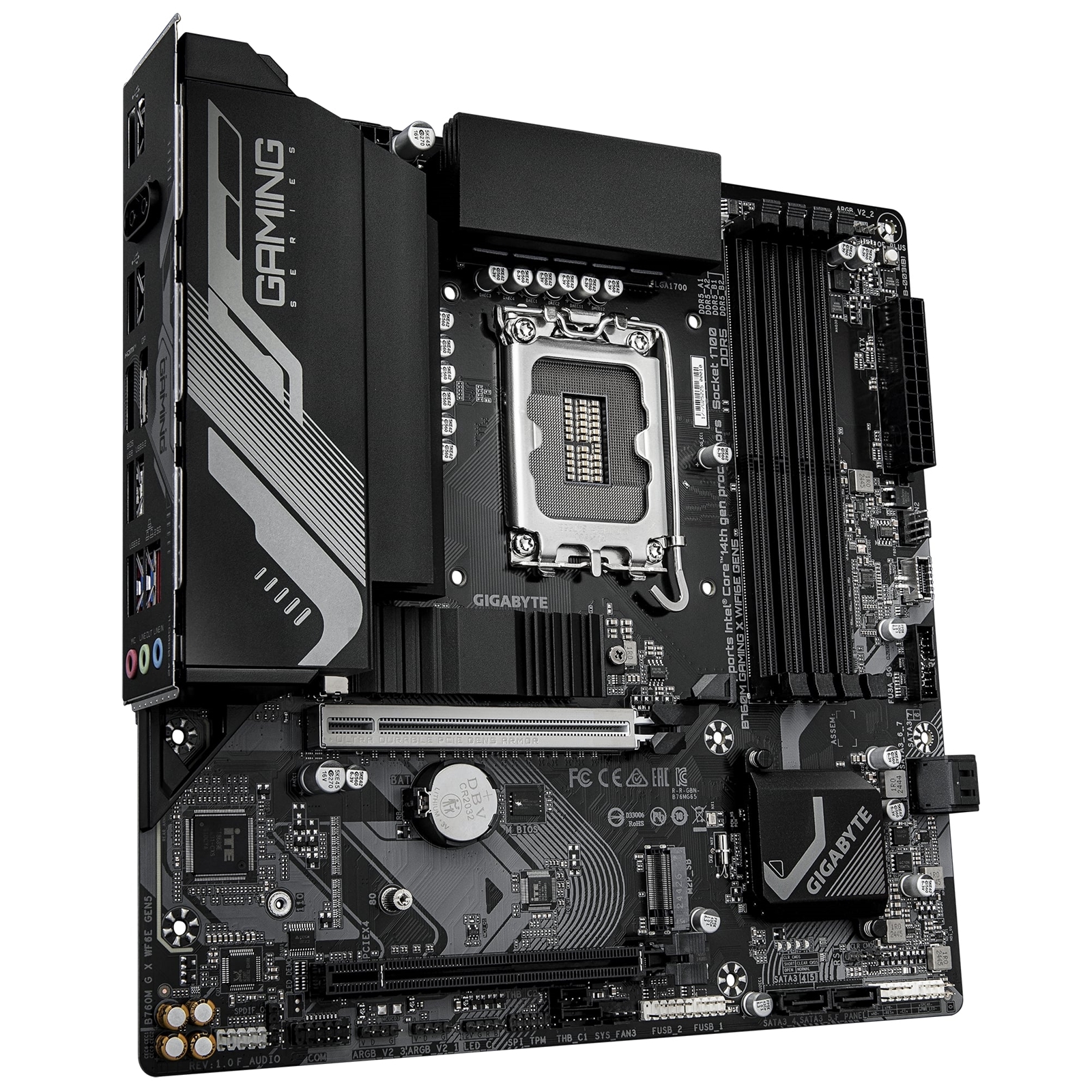

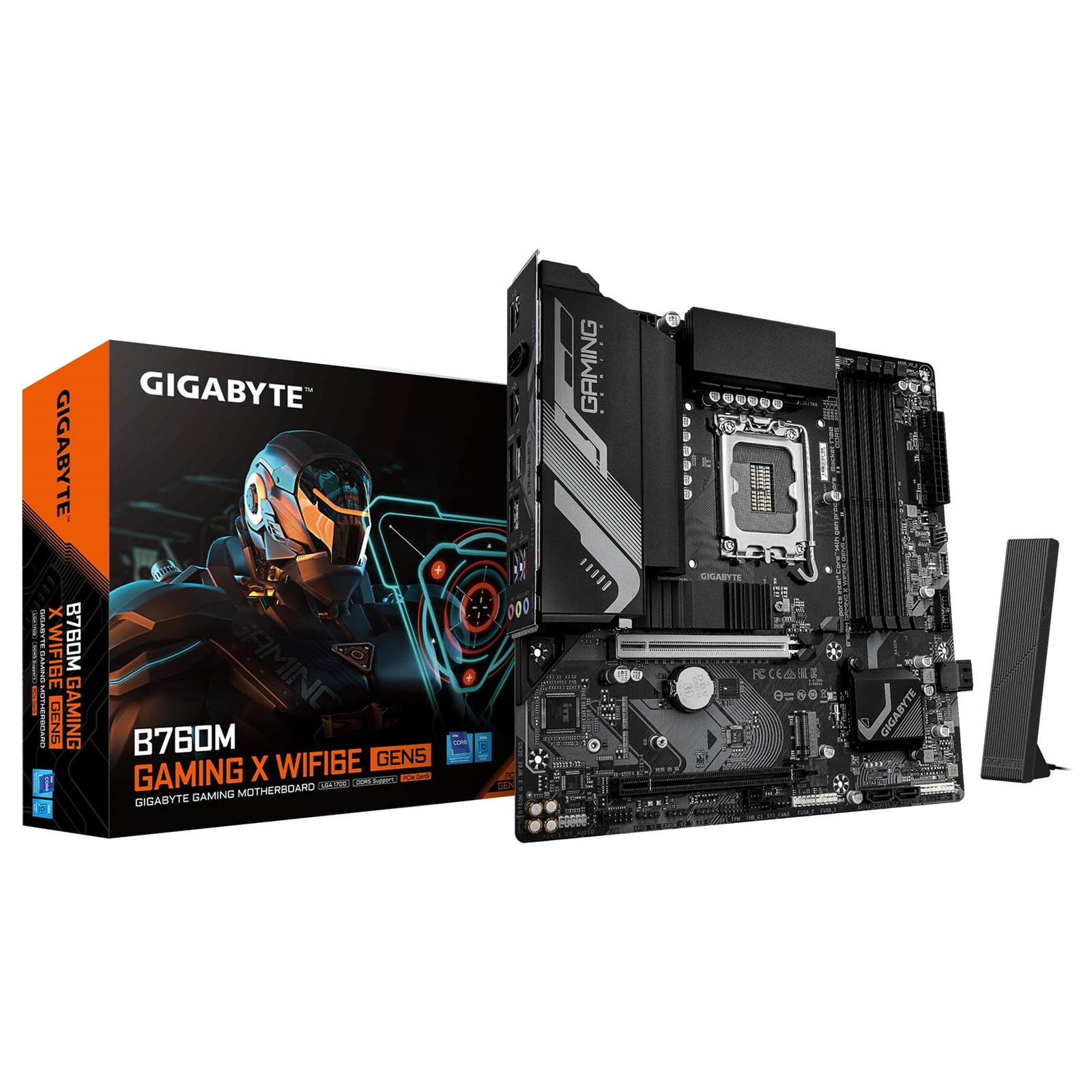

Gigabyte B760M GAMING X WIFI6E GEN5



Express to PCIE5 Performance

The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.



Fully Covered Thermal Design

High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.



Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience.



Born from Ultra Durable

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel.



Optimal Power

Maximum Turbo Boost and overclocking performance



All-round Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.



Customize to fit your unique personality

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.



Key Features

PCIe Gen5 Performance : Perfect Sync to Win

Supports Intel Core 14th/ 13th/12 processors

Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal

EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design

PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution

Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support

Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax

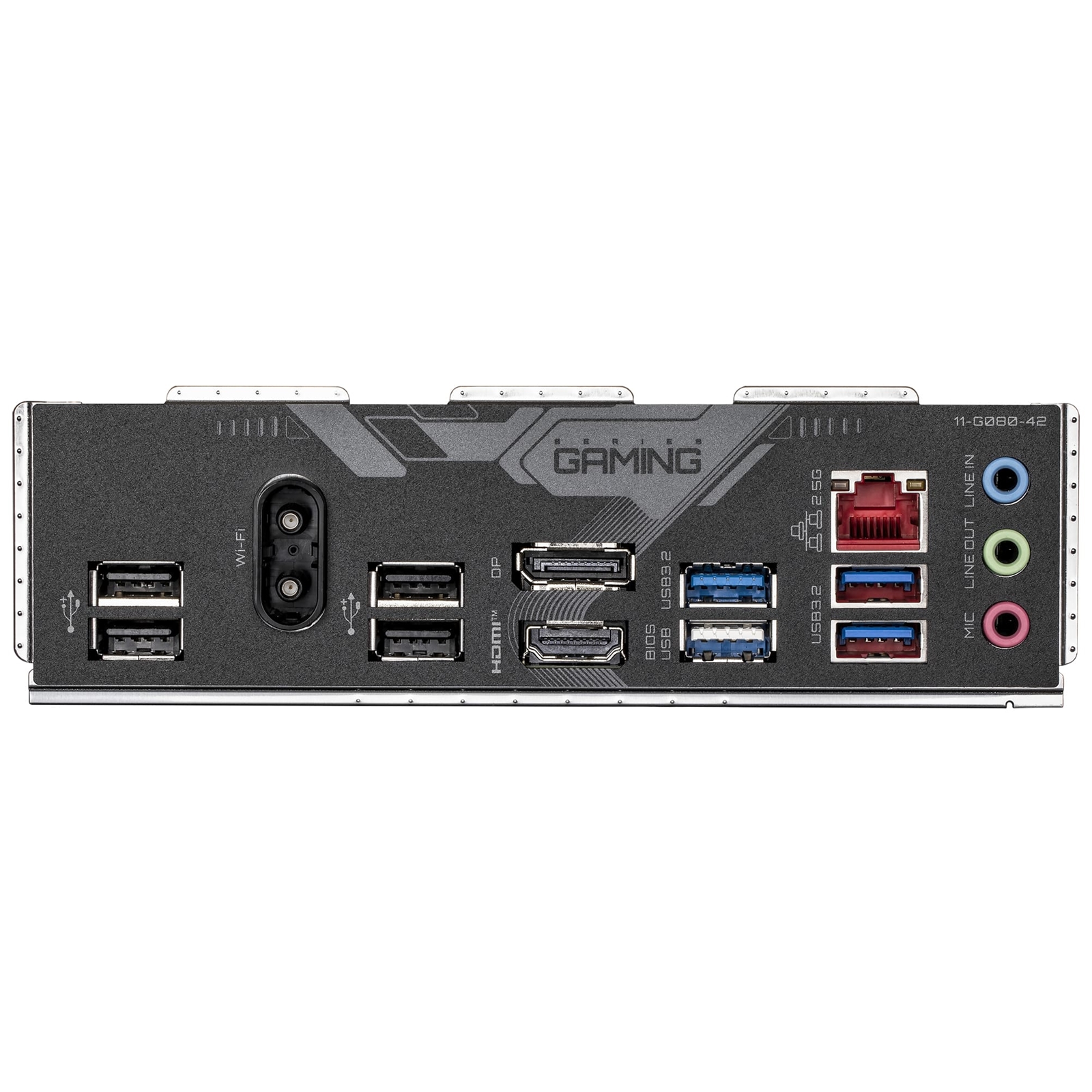

Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI

Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors

Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card



Specifications



CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU



Chipset

Intel B760 Express Chipset



Memory

14th and 13th Generation Intel Core i9/i7 Processors:

– Support for DDR5 5600/5200/4800/4400 MT/s memory modules

13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron® Processors:

– Support for DDR5 4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)



Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz



Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel



LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless Communication module

Intel Wi-Fi 6E AX210

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)



Expansion Slots

CPU:

– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:

– 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)



Storage Interface

CPU:
