Key Features

X3D Turbo Mode : Unleash new era gaming performance

DDR5 OC up to 8200MT/s

AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

Digital 6+2+2 phases VRM solution

Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

PCIe EZ-Latch Plus : PCIe slots with Quick Release Design

Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0×4 slot

Efficient Thermal : VRM Thermal Armor Advanced

Fast Networking : GbE LAN & Wi-Fi 6 802.11ax

Extended Connectivity : HDMI, Displayport



CPU

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)



Chipset

AMD B850



Memory

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)



Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)



Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.



LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)



Wireless Communication module

Realtek® Wi-Fi 6 RTL8851BE

– WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

– BLUETOOTH 5.3

– Support for 11ax 80MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)



Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.



Chipset:

– 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)



Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

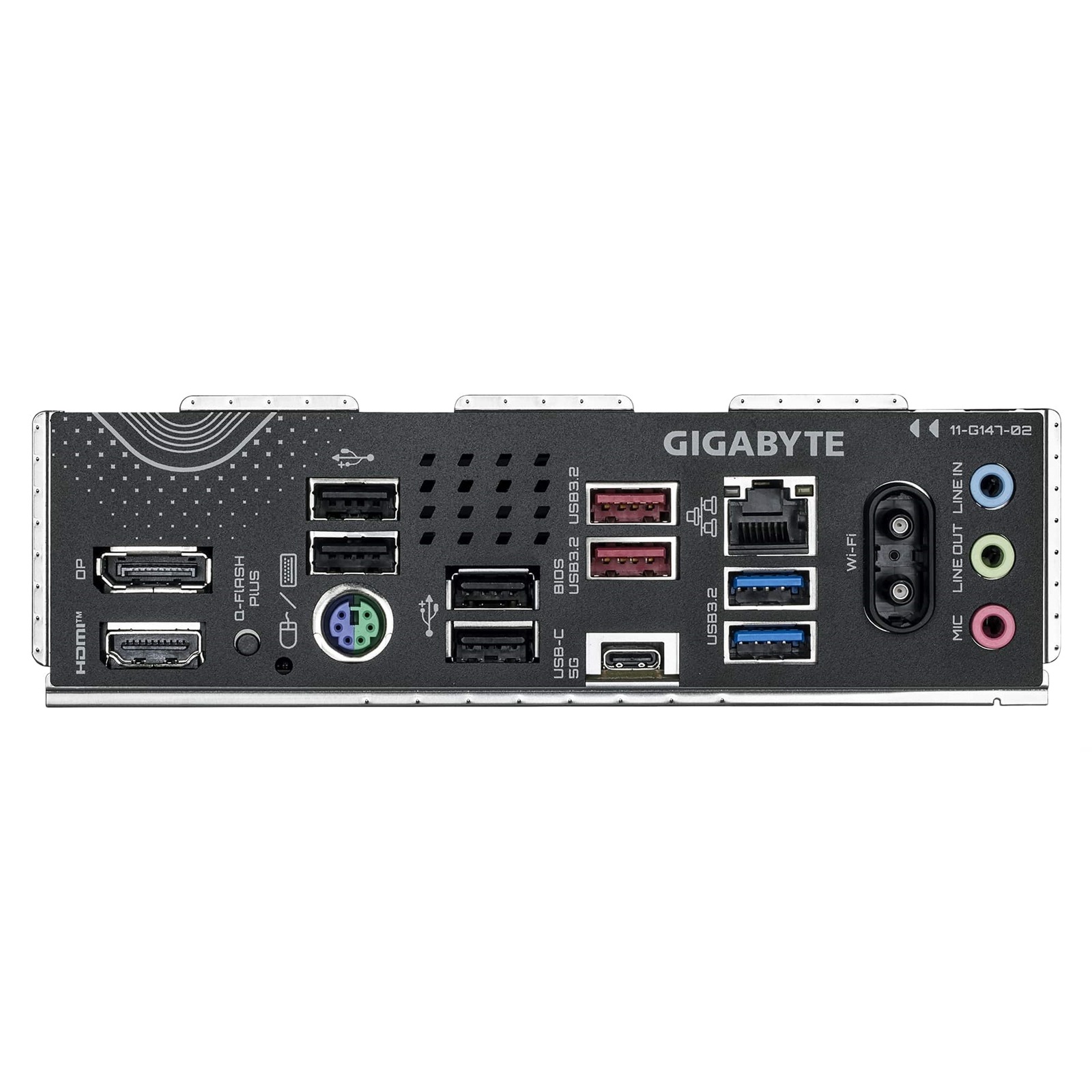

USB

CPU:

– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset:<br style="box-sizing: border-box; color: r
