GIGABYTE GP-UD750GM 750W V2 ICE
Features
Ultra Durable
100% Japanese capacitors
120mm smart hydraulic bearing (HYB) fan
Optimized thermal solution
OVP/OPP/SCP/UVP/OCP/OTP protection
Intel ATX 3.1 and PCIe Gen 5.1 ready
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact size
ATX 3.1 and PCIe GEN 5.1 READY
Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3x GPU and 2x system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 600W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX 50 Series and beyond.
ULTRA DURABLE
Carrying the Ultra Durable design DNA, this power supply packs high-quality components and smart design features for rock-solid stability and lasting performance.
100% JAPANESE CAPACITORS
High-quality Japanese capacitors are used throughout, ensuring efficient performance and long-lasting reliability.

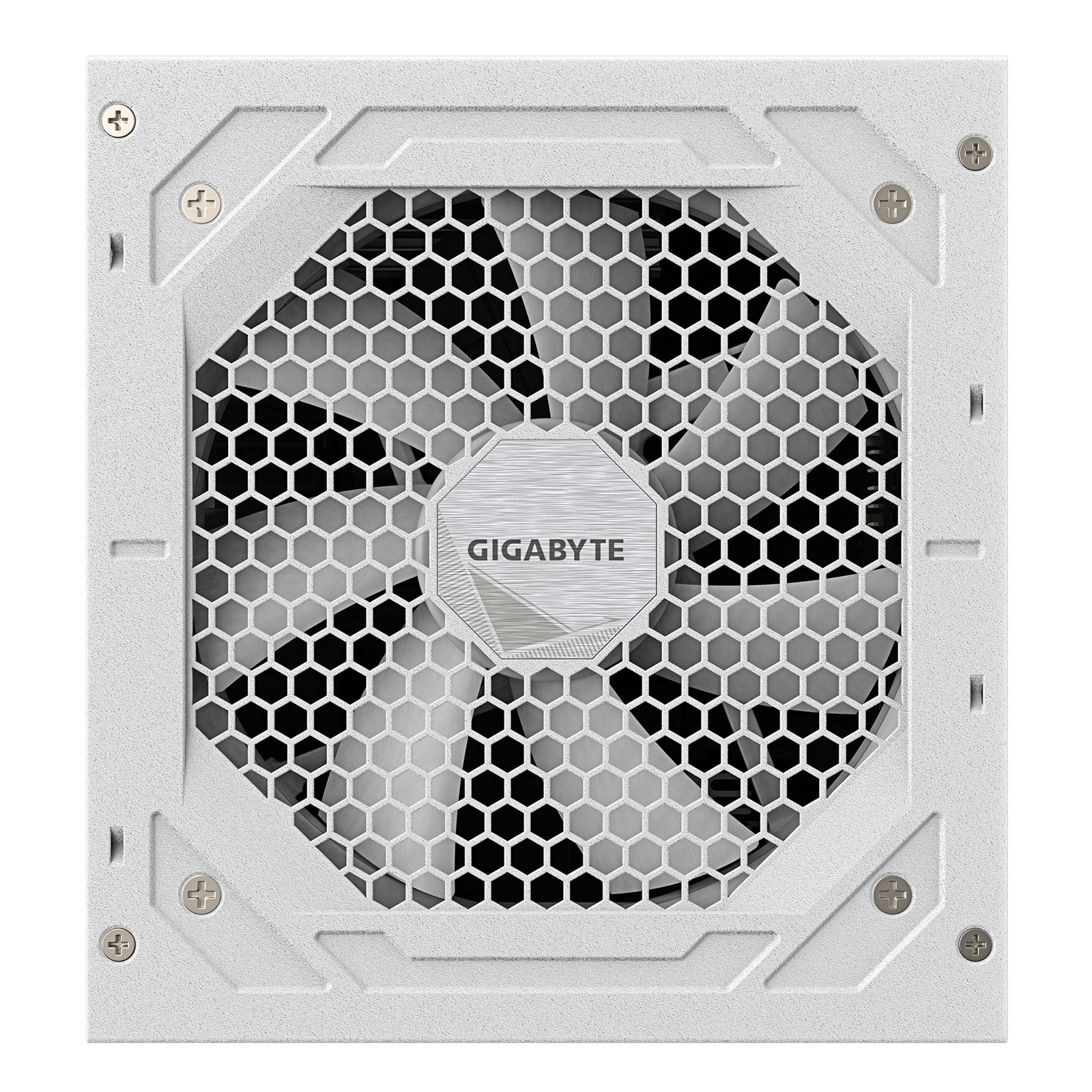

120mm smart Hydraulic Bearing(HYB) fan with smart fan switch
Fan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance.
PROTECTIONS
Multiple protection features are integrated to ensure stable operation under any condition. The power supply is also backed by safety certifications from various countries, providing added peace of min

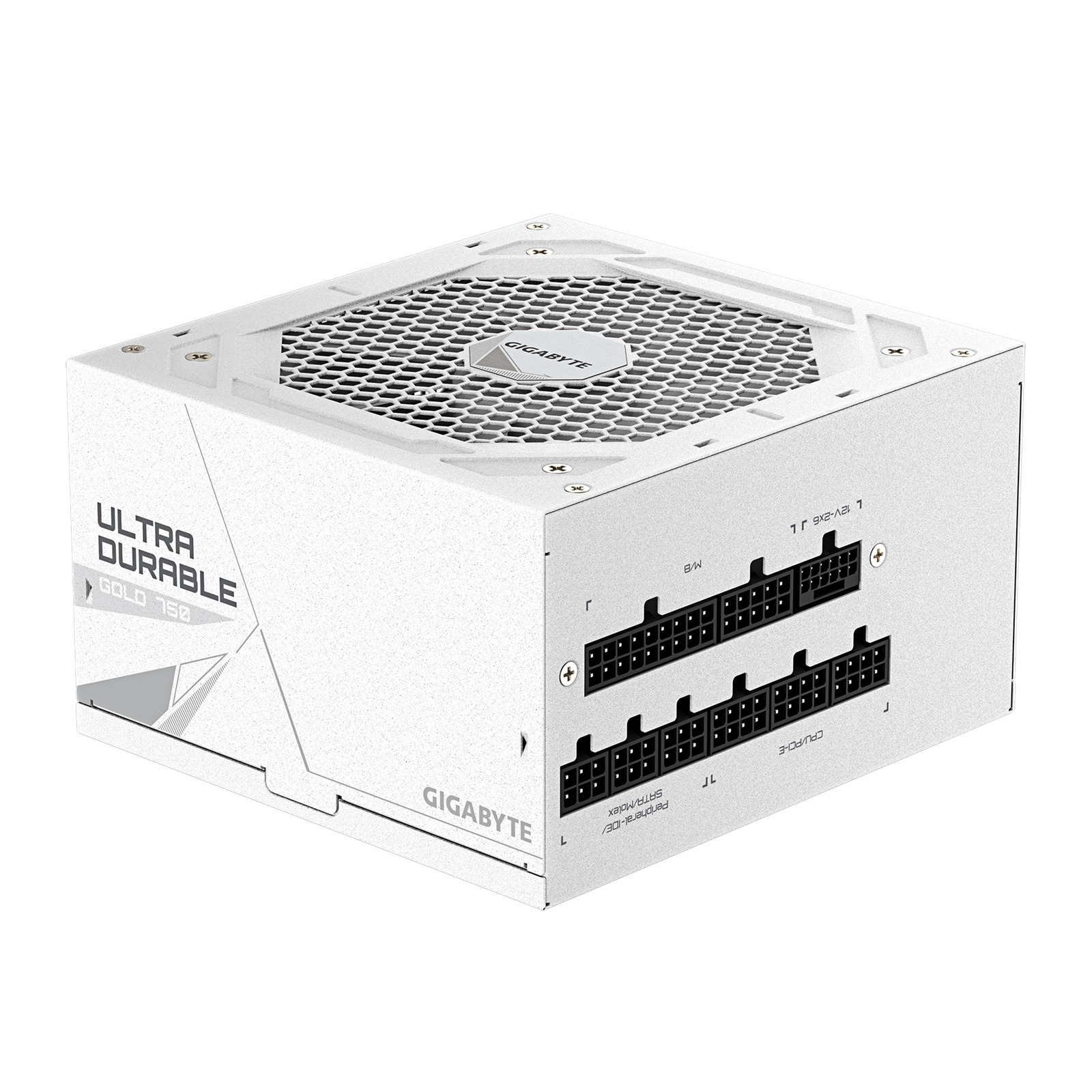

FULLY MODULAR DESIGN
Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
COMPACT DESIGN
Leveraging our expertise in heat dissipation and material selection, the power supply is slimmed down to just 140mm, maximizing performance while ensuring compatibility with even the most space-constrained chassis.

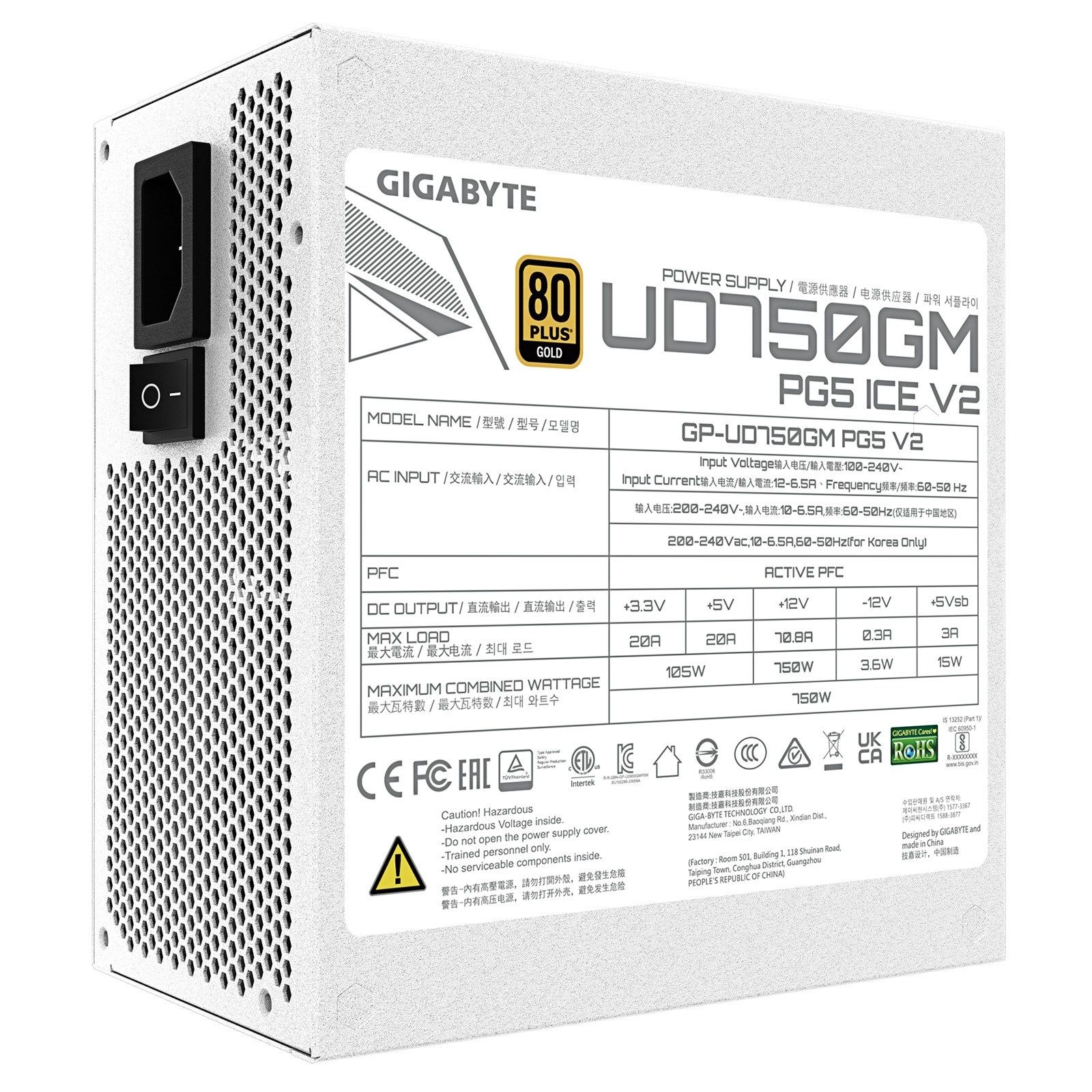

Model
GP-UD750GM PG5 ICE
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimensions
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB) Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Embossed, All white

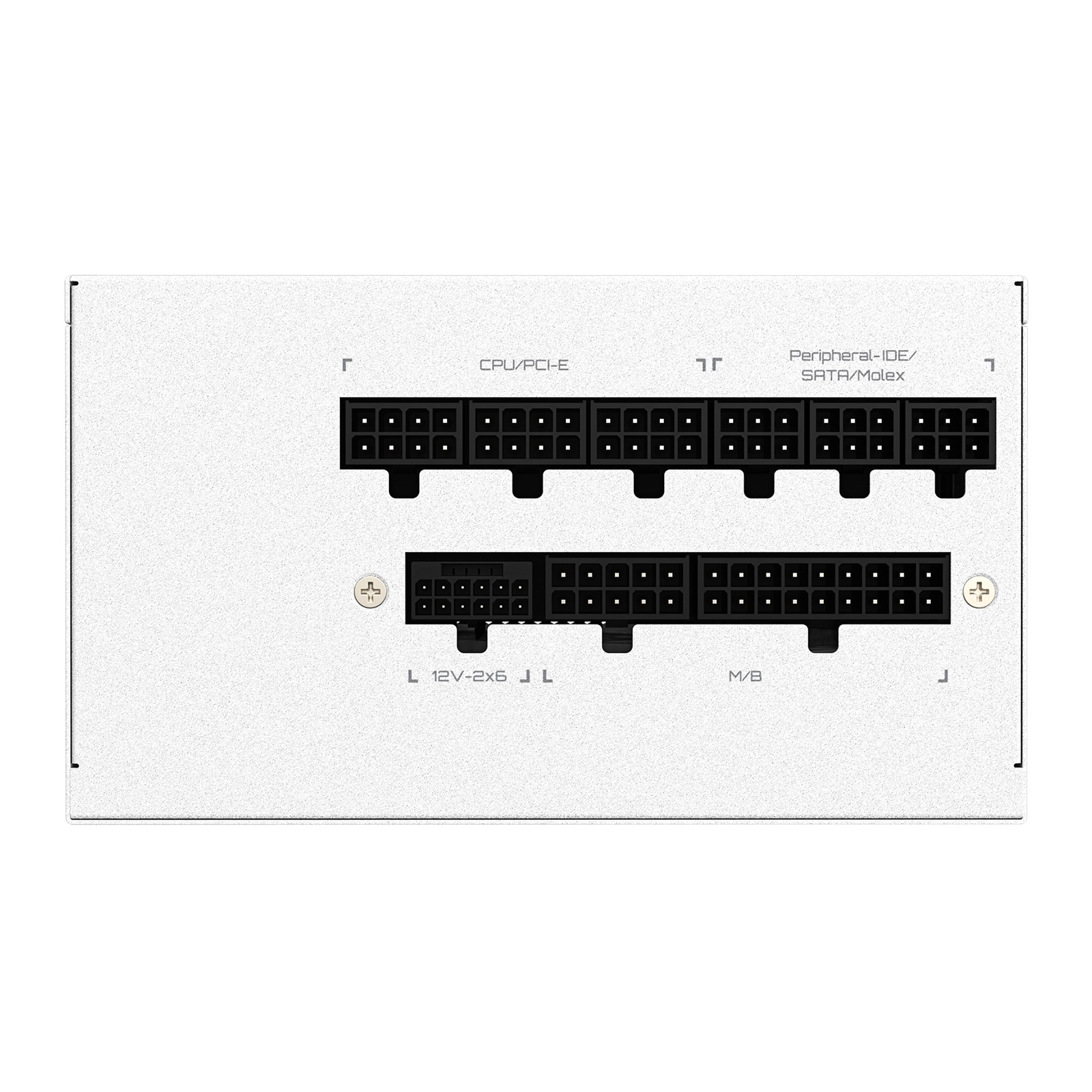

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
PCI-e 12+4 Pin x 1:700mm*1
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
