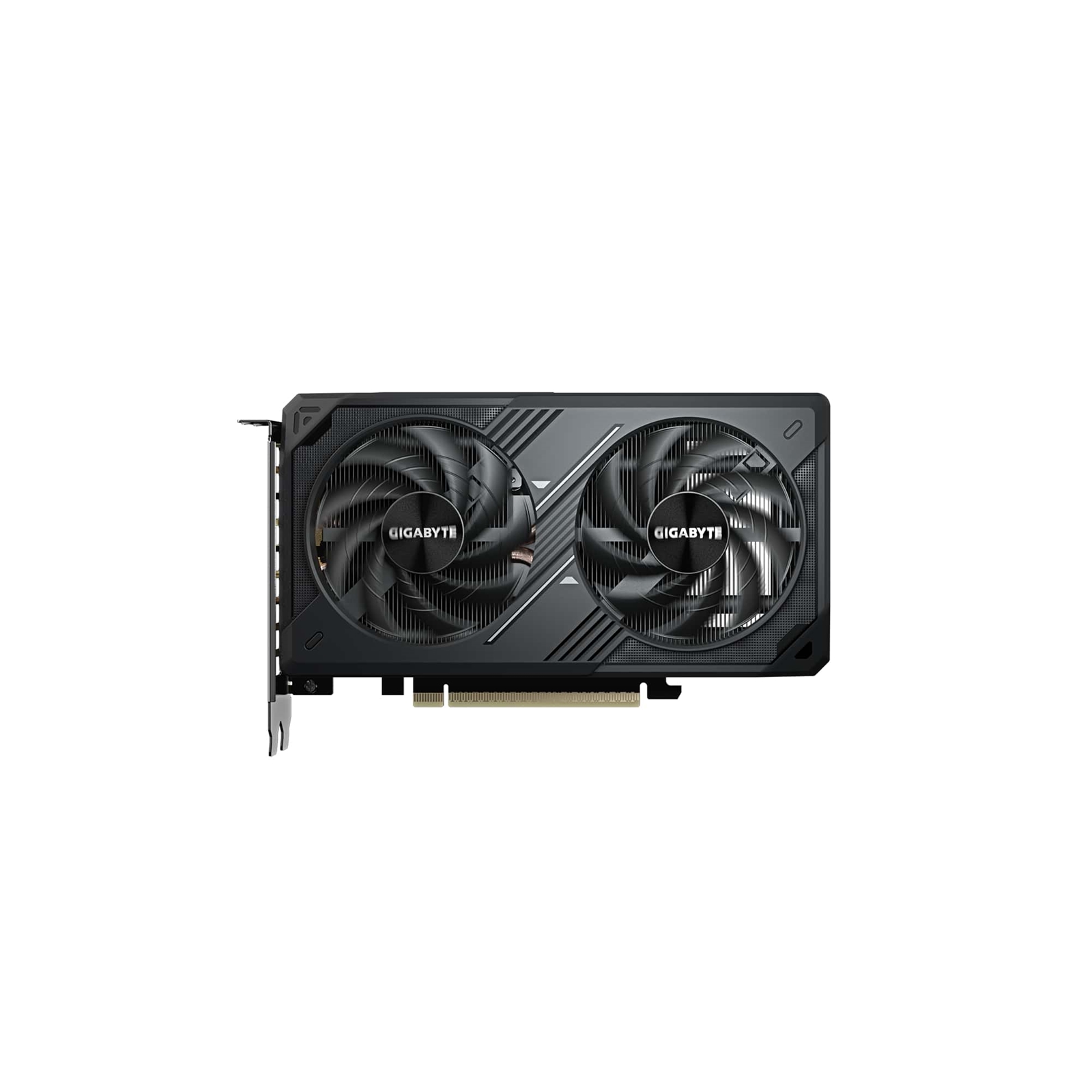

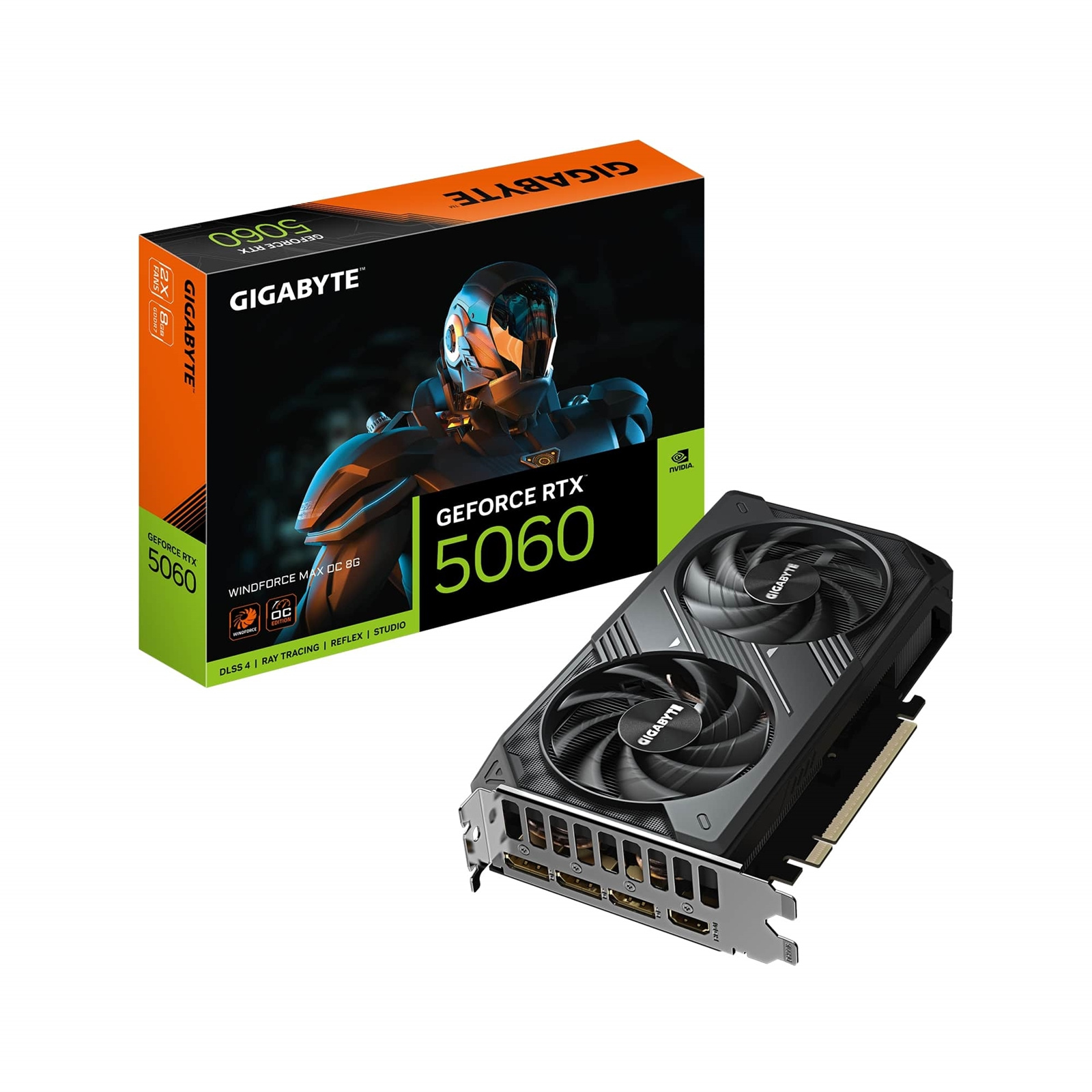

Gigabyte GeForce RTX 5060 WINDFORCE MAX OC 8G



FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX 5060

Integrated with 8GB GDDR7 128bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

Reinforced structure

CORE CLOCK -2512 MHz (Reference card : 2497MHz)



The Ultimate Platform for Gamers and Creators



Fifth-Gen Tensor Cores – Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors – Optimized for neural shaders

Fourth-Gen Ray Tracing Cores – Built for Mega Geometry



WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.



HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.



GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.



ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.



SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.



COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.



SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.



SUPERIOR CRAFTSMANSHIP



ULTRA DURABLE

ULTRA COOLING – Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.



LOW POWER LOSS – Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.



LONGER LIFE – Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.



FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.



POWER THROUGH THE GAME

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.



GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.



Specifications



Graphics Processing

GeForce RTX 5060



Core Clock

2512 MHz (Reference card : 2497MHz)



CUDA Cores

3840



Memory Clock

28 Gbps



Memory Size

8 GB



Memory Type

GDDR7



Memory Bus

128 bit



Card Bus

PCI-E 5.0



Digital max resolution

7680×4320



Multi-view

4



Card size

L=199 W=116 H=40



PCB Form

ATX



DirectX

DirectX 12 API



OpenGL

4.6



Recommended PSU

550W



Power Connectors

8 Pin*1

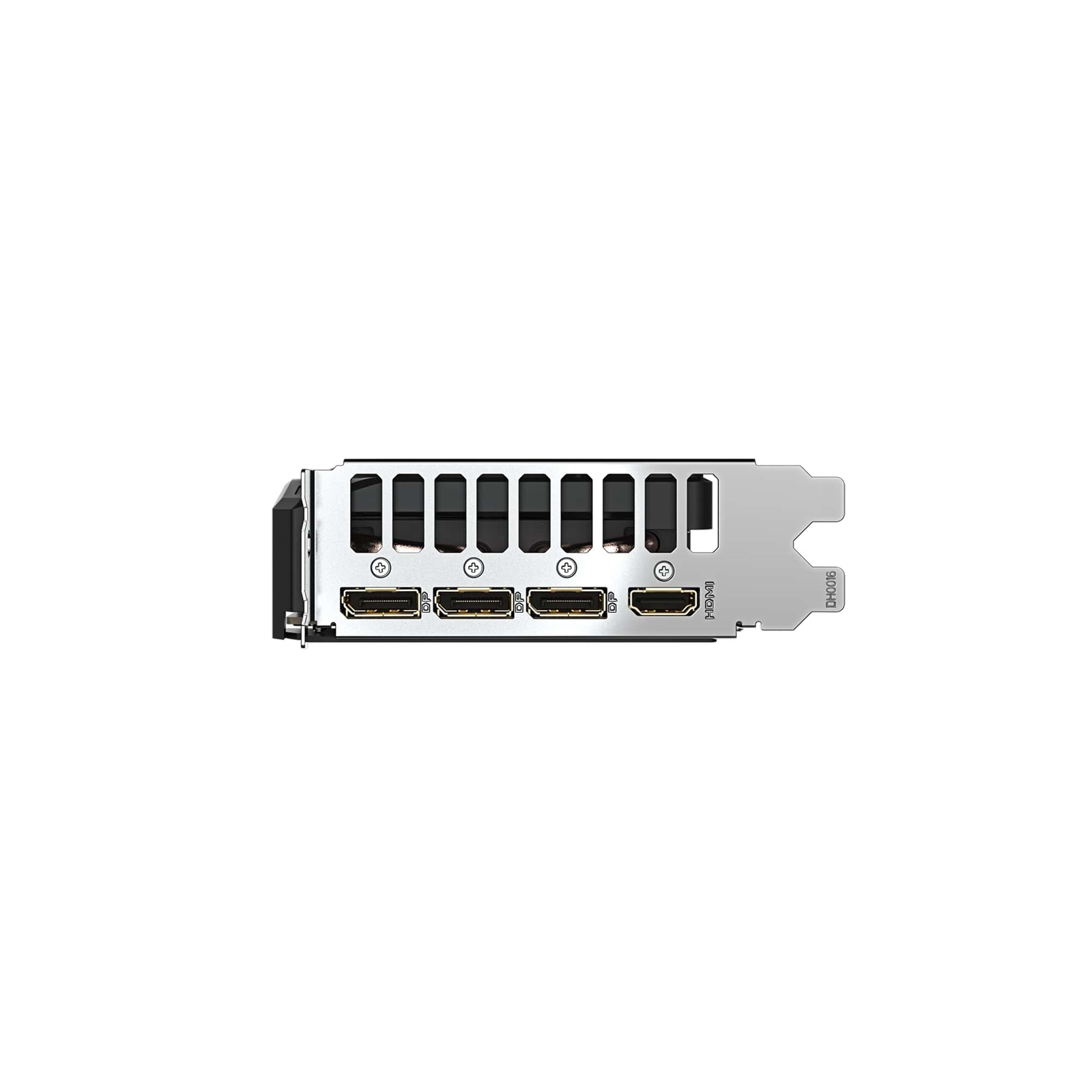

Output

DisplayPort 2.1b *3

HDMI 2.1b *1



Accessories

Quick guide
