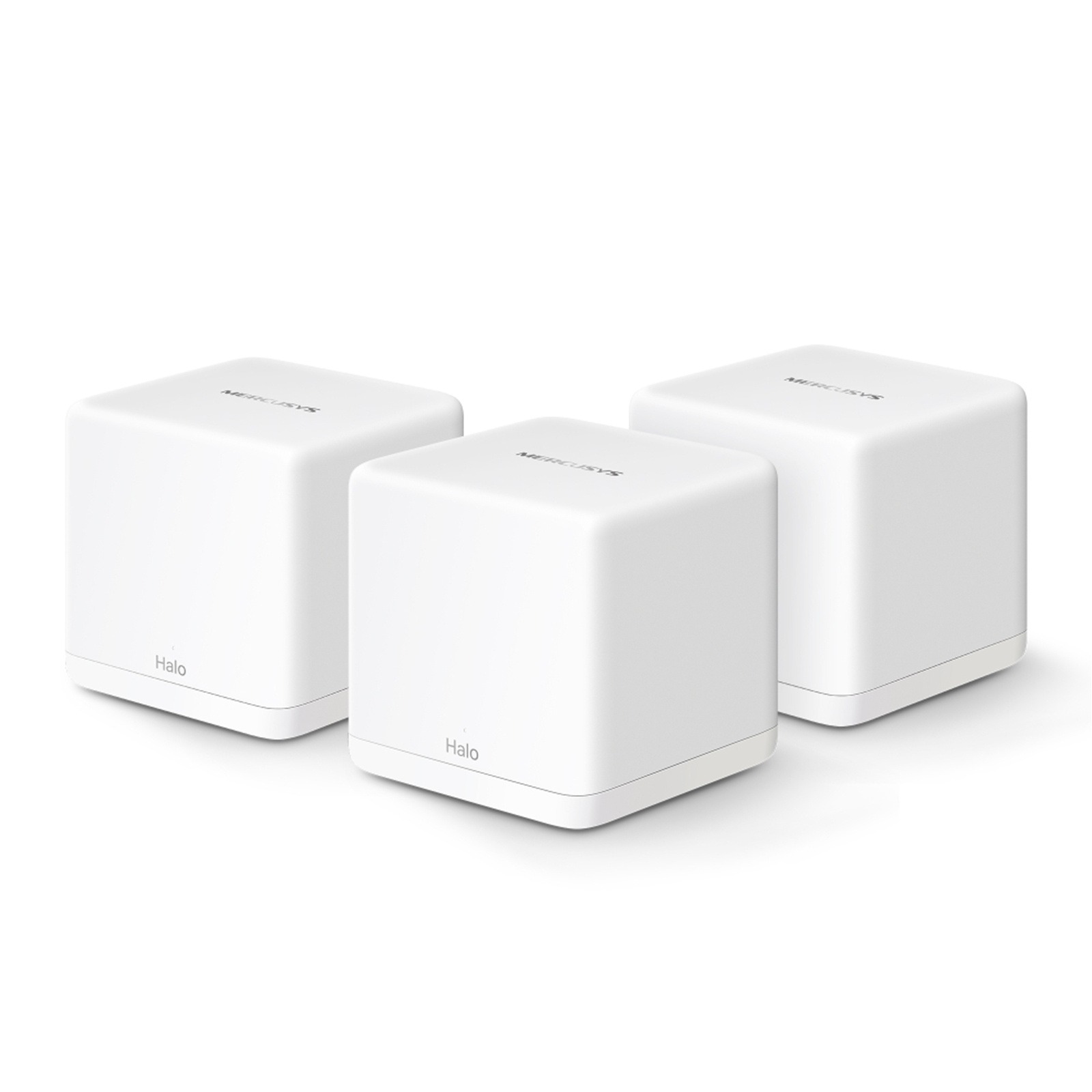

Mercusys Halo H60X AX1500 Whole Home Mesh WiFi 6 System



Dual Band WiFi 6 Speeds up to 1500 Mbps

1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.



Seamless Roaming with One Unified Network

Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.

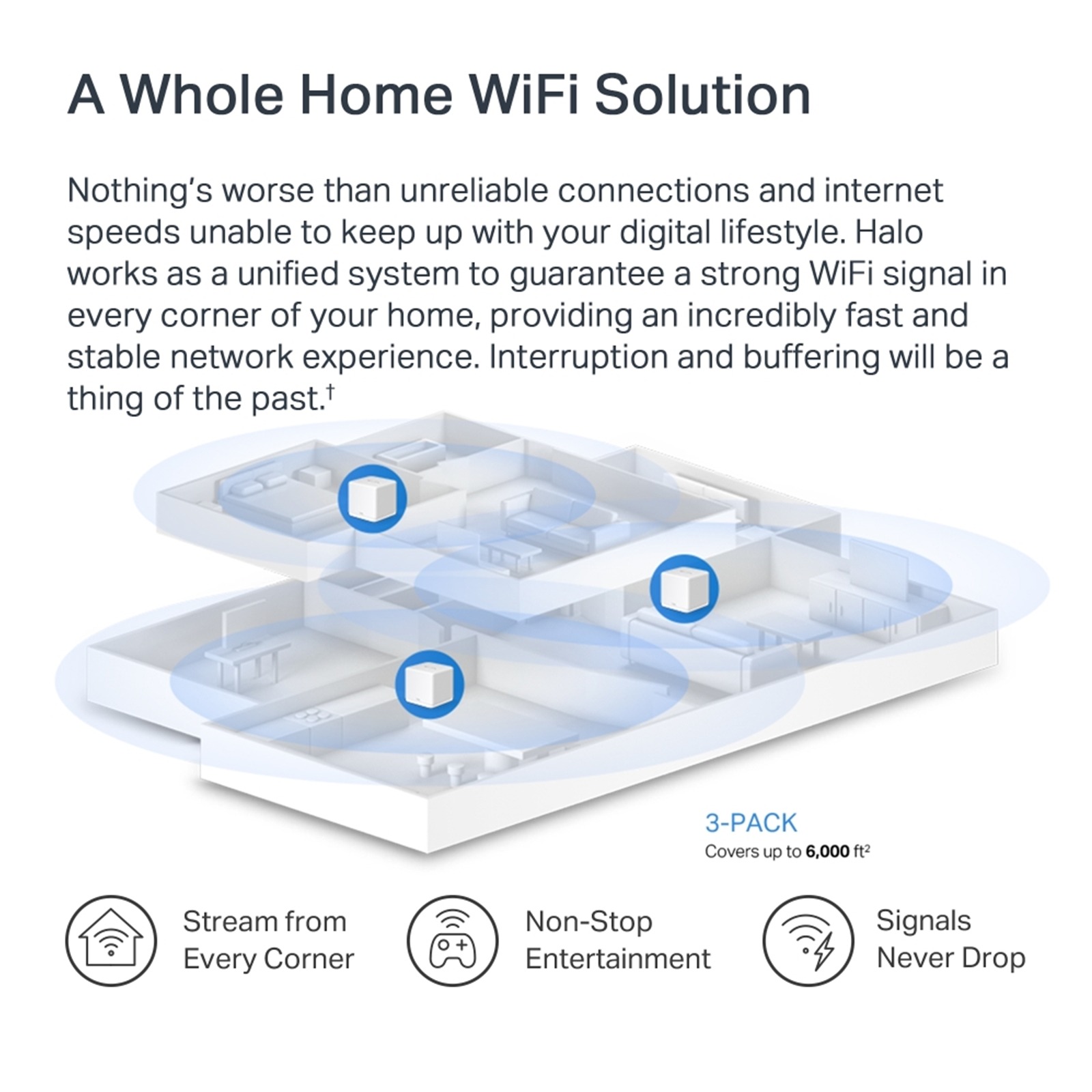

Whole Home Coverage

Blanket up to 6,000 ft² (550 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.



Connect over 100 Devices

Provide fast and stable connections over 100 devices.



Easily Manage Your Home Network

Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids' online time and contents.

Full Gigabit Ports – Gigabit ports for lightning-fast wired connections.**

*Please note that the Halo H series and S series cannot work together.



Specifications



Wireless



Wireless Standards

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz



Signal Rate

1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz



Reception Sensitivity

2.4GHz:

11g 6Mbps:-96.5dBm

11g 54Mbps:-78dBm



5GHz:

11a 6Mbps:-96dBm

11a 54Mbps:-78dBm

11ac VHT20 MCS8:-74.5dBm

11ac VHT40 MCS9:-70.5dBm

11ac VHT80 MCS9:-66.5dBm

11ax HE20 MCS11:-66dBm

11ax HE40 MCS11:-63dBm

11ax HE80 MCS11:-61dBm



Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)



Wireless Security

WPA-PSK/WPA2-PSK/WPA3



Mesh protocol

802.11k/v/r



Software



Operation Modes

Router, Access Point



Quality of Service

WMM



WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP



Management

Local Management, Remote Management, Multi-Managers



DHCP

Server, Client



Firewall Security

SPI Firewall



Protocols

Supports IPv4 and IPv6



Guest Network

2.4 GHz Guest Network,

5 GHz Guest Network



Hardware



Dimensions (W X D X H)

3.5 x 3.5 x 3.5 in (88 x 88 x 88 mm)



Interfaces

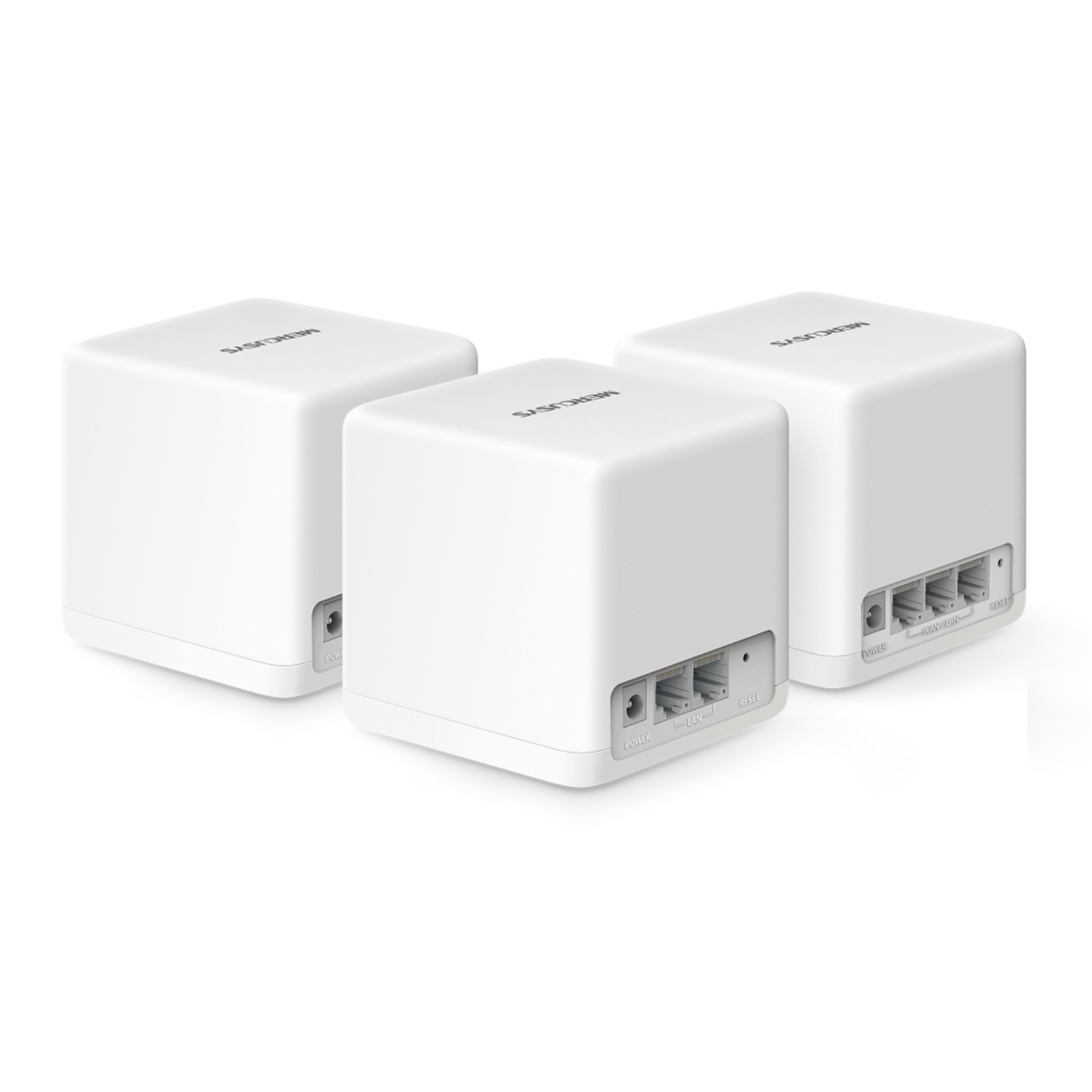

Halo H60XR: 3x Gigabit WAN/LAN Ports

Halo H60XS: 2x Gigabit LAN Ports



Button

Reset button



Others



Package Contents – 3-pack



1x Halo H60XR Unit+ 2x Halo H60XS Units

1x RJ45 Ethernet Cable

3x Power Adapters

Quick Installation Guide



Environment



Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
