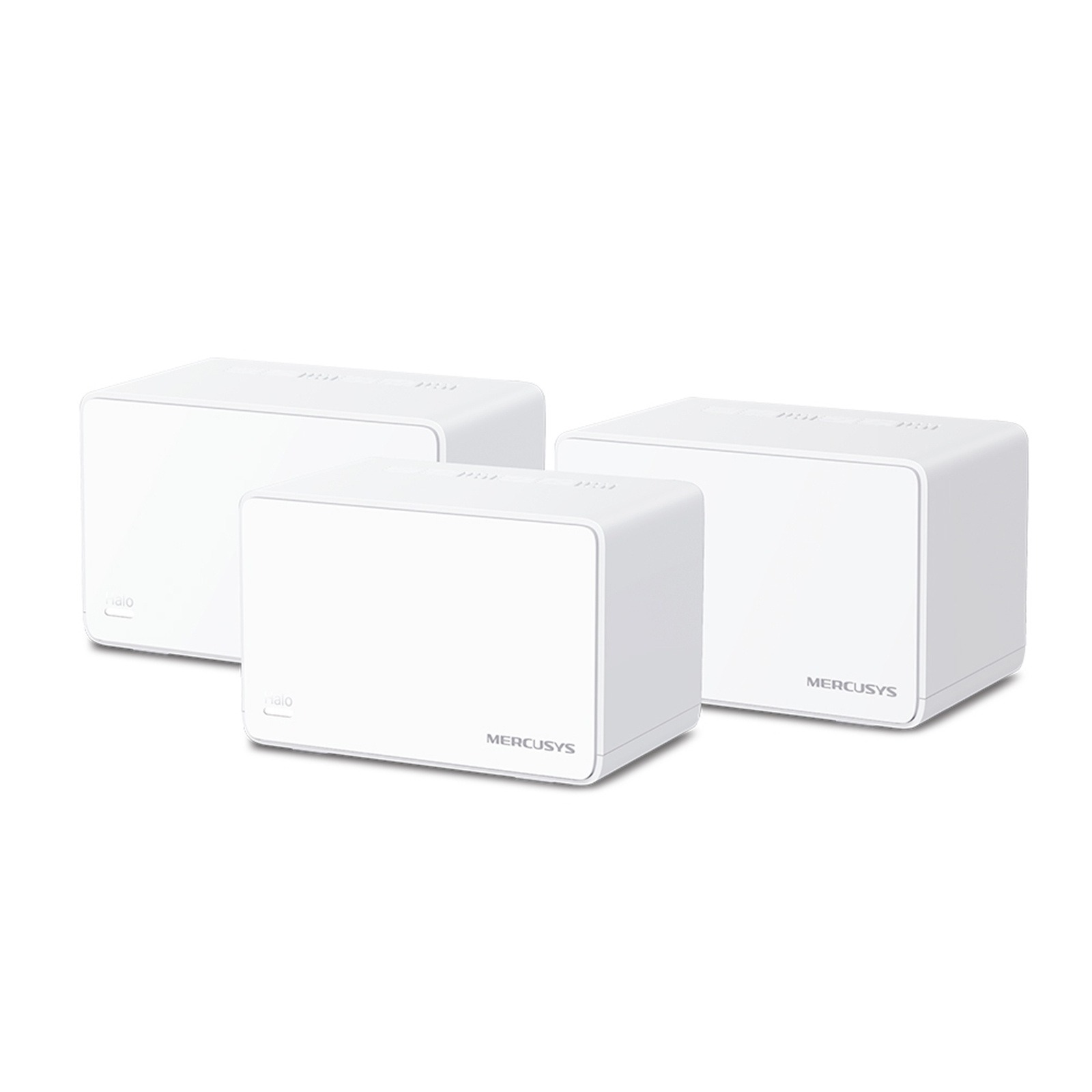

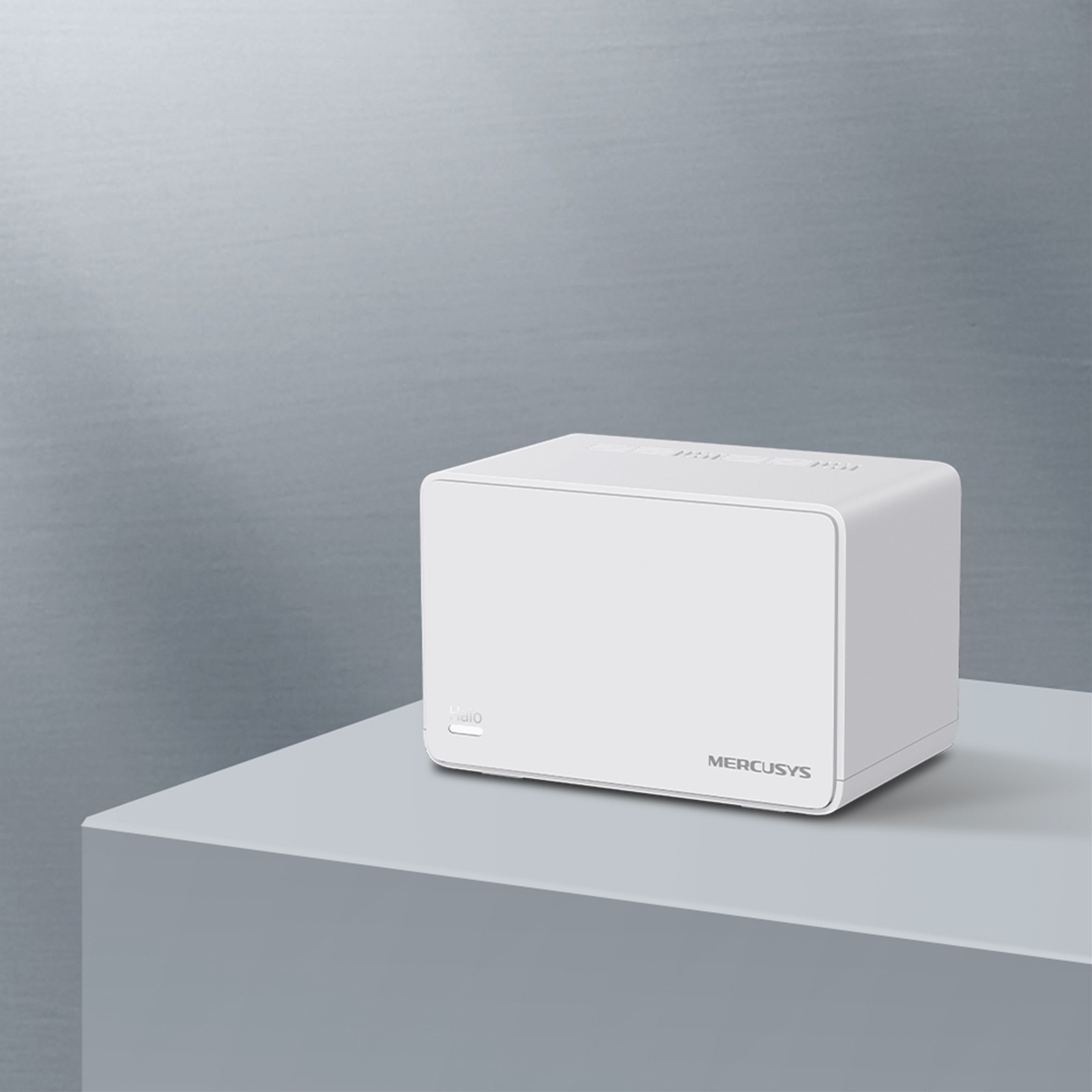

AX3000 Whole Home Mesh WiFi 6 System



Dual Band WiFi 6 Speeds up to 3000 Mbps

2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.



Seamless Roaming with One Unified Network

Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.



Whole Home Coverage

Blanket up to 7,000 ft2 (650 m2) with high-speed WiFi, eliminating WiFi dead zones at your home.



Connect over 150 Devices

Provide fast and stable connections over 150 devices.



Easily Mange Your Home Network

Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids' online time and contents.



Full Gigabit Ports

3x Gigabit ports per Halo unit for lightning-fast wired connections.



Specifications



Wireless Standards

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz



WiFi Speeds

2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz



Reception Sensitivity

2.4GHz:

11g 6Mbps:-96.5dBm

11g 54Mbps:-78dBm

11AX HE20 MCS0:-96.5dBm

11AX HE20 MCS11:-65dBm

11AX HE40 MCS0:-93.5dBm

11AX HE40 MCS11:-63dBm

5GHz:

11a 6Mbps:-96dBm

11a 54Mbps:-78dBm

11ac VHT20 MCS8:-74.5dBm

11ac VHT40 MCS9:-70.5dBm

11ac VHT80 MCS9:-66.5dBm

11AX HE20 MCS11:-66dBm

11AX HE40 MCS11:-63dBm

11AX HE80 MCS11:-61dBm



Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)



Wireless Security

WPA-PSK/WPA2-PSK/WPA3



Mesh protocol

802.11k/v/r



Operation Modes

Router, Access Point



Quality of Service

WMM



WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP



Management

Local Management, Remote Management, Multi-Managers



DHCP

Server, Client



Firewall Security

SPI Firewall



Protocols

Supports IPv4 and IPv6



Guest Network

2.4 GHz Guest Network,

5 GHz Guest Network



HardwareDimensions

5 x 3.2 x 3.3 in (128 x 81 x 83.7 mm)



Interfaces

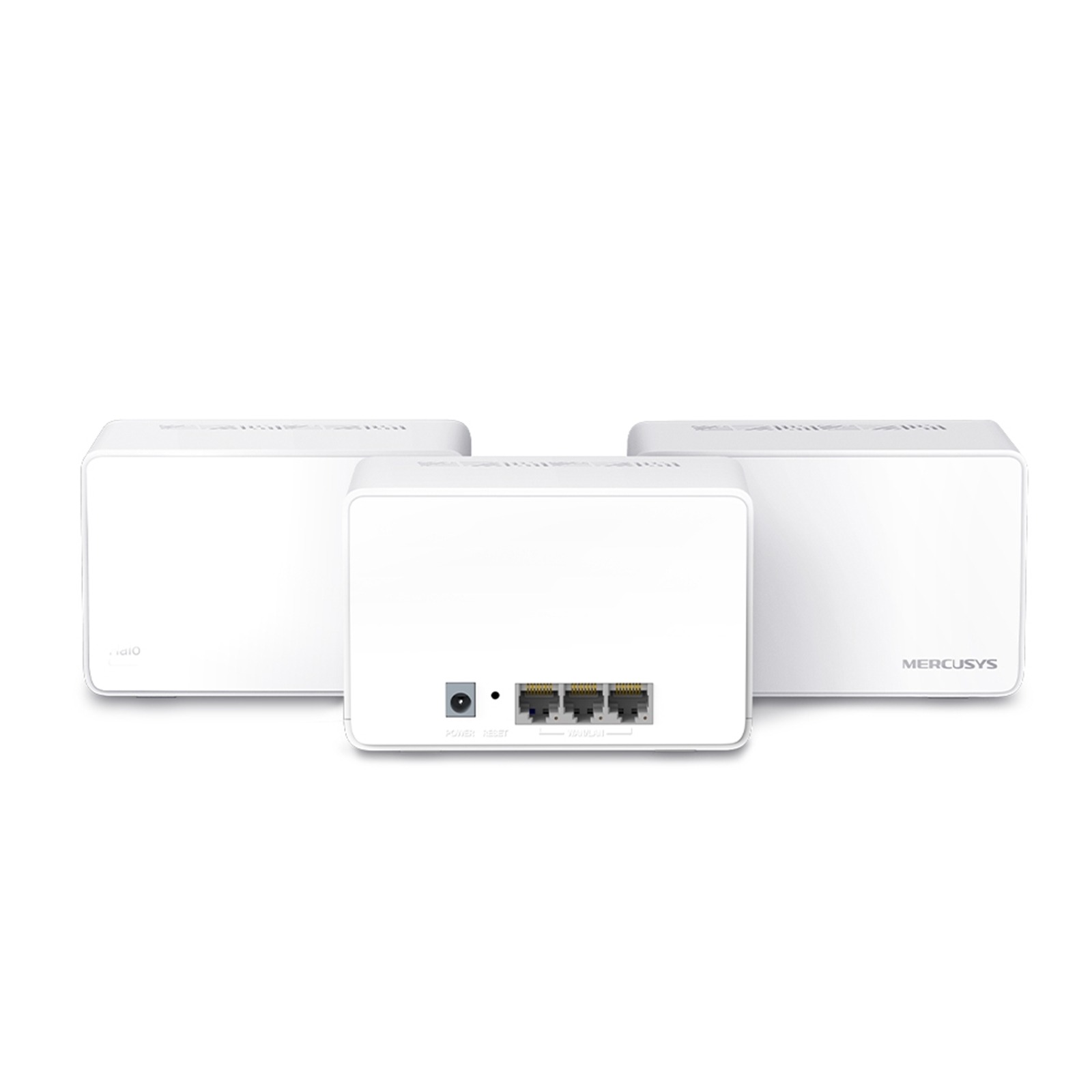

3x Gigabit Ports per Halo Unit

(WAN/LAN auto-sensing)



Button

Reset button



Package Contents

3x Halo H80X Units

1x RJ45 Ethernet Cable

3x Power Adapters

Quick Installation Guide



Environment

Operating Temperature: 0C~40C (32F~104F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
