Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly

AC1200 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2 Gbps

Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds

Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension

Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles

Works with Any Router or Wireless Access Point



Extend WiFi to Where You Need It Most

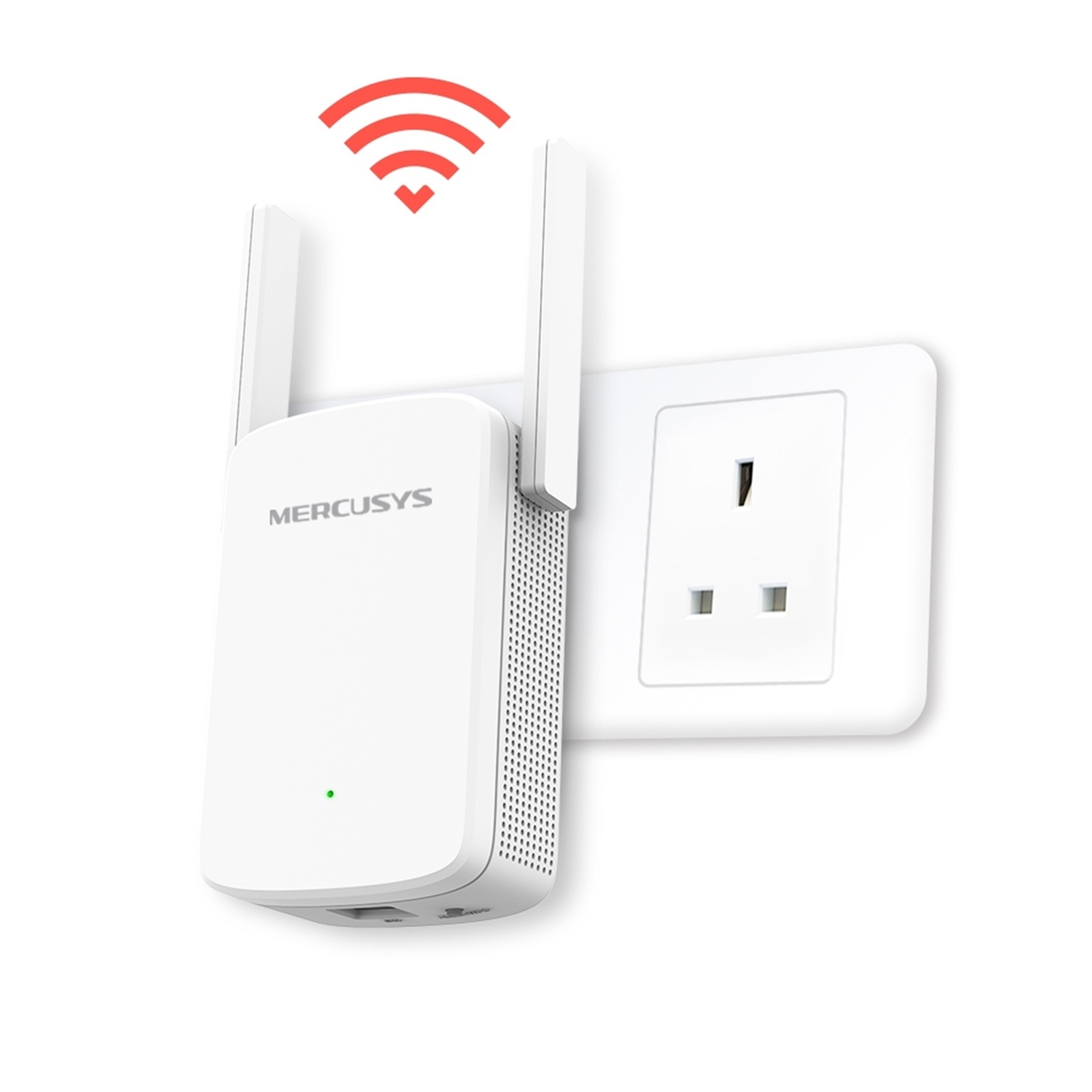

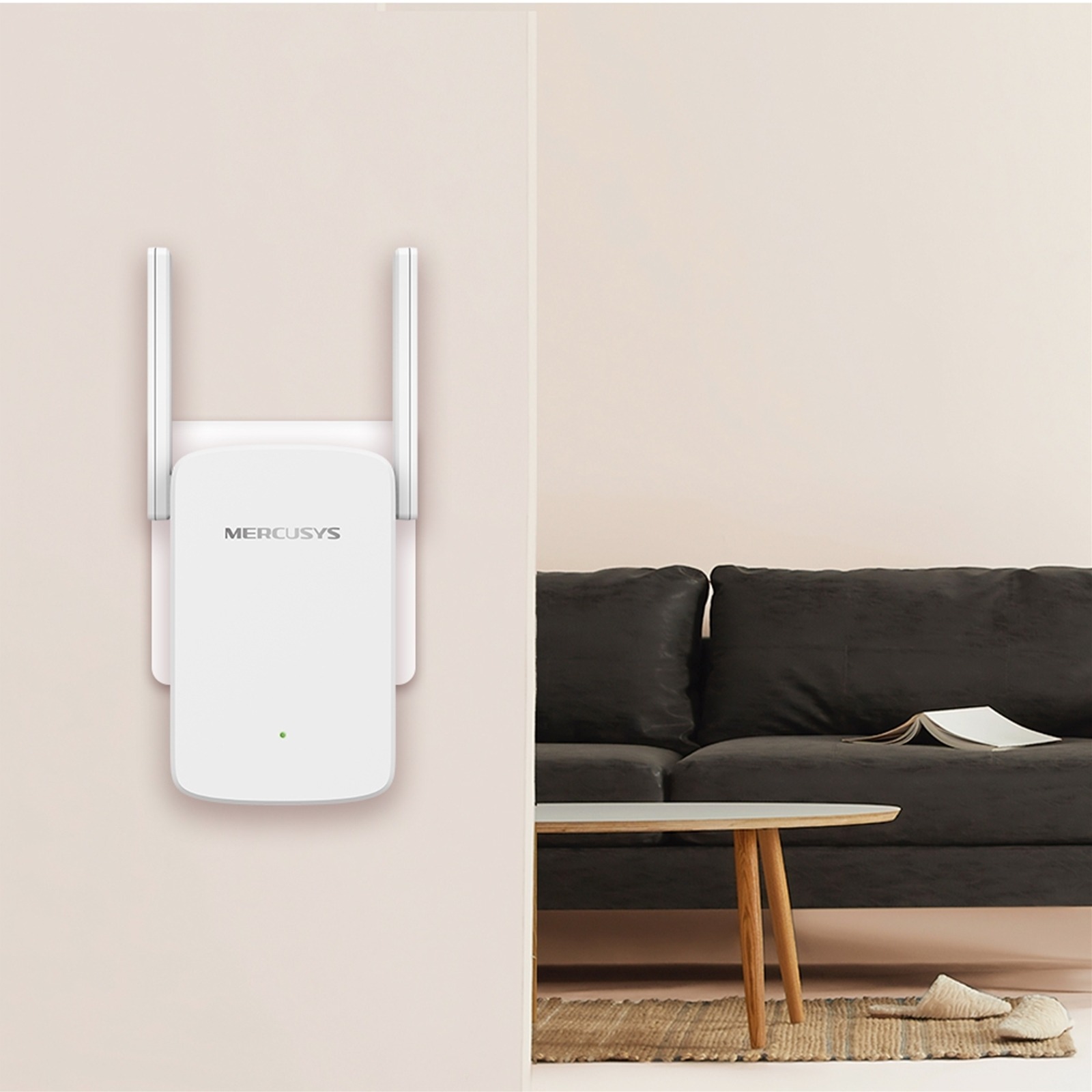

The ME30 wall-mounted range extender with adjustable high-gain antennas easily expands your Wi-Fi router's coverage, letting you finally eliminate Wi-Fi dead zones from your home. Enjoy the high speed expansion WiFi wherever you need.



Streaming at Full Speed All The Time

AC1200 High-Speed Wi-Fi

Enjoy a fast extended Wi-Fi anywhere up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz), ideal for 4K streaming and online gaming.



Adaptive Path Selection

The ME30 keeps your network running at top-speed by intelligently choosing the best available route and band for your data.



Smart Signal Indicator

Multicolor LED helps you find the right location for your range extender for the best Wi-Fi extension



Easy One-Touch Setup

Press the WPS button on your router and the WPS button on your extender to expand your Wi-Fi coverage in seconds.



Step 1:Press the WPS button on your router and the ME30

Step 2:Relocate the ME30 to the best place with smart signal indicator



Built-In Access Point Mode

ME30 is more than just a WiFi range extender. Connect your wired internet connection to the ME30 via Ethernet cable to turn it into a dual band WiFi access point.



Specifications



Wireless

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz



Frequency

2.4 – 2.5 GHz, 5 GHz



Signal Rate

Up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)



Reception Sensitivity

5 GHz:

11ac HT80 MCS9 < -63 dBm

2.4 GHz:

11n HT40 MCS7 < -70 dBm



Transmission Power

< 20 dBm



Wireless Security

WPA-PSK/WPA2-PSK



Hardware

Dimensions (W x D x H)

112 x 84.7 x 39mm



Interfaces

1x 10/100Mbps RJ45 Port



Button

RESET/WPS Button



Antenna Type

2x External Antennas



Power Consumption

9.2 W
