1000 Mbps High-Speed Transfer Rate — Fast and stable transmissions with advanced HomePlug AV2

Super-Fast Wired Connection — A gigabit port provides high-speed internet to PCs, IPTVs, and game consoles

Plug & Play — No wiring and configuration required—simply plug in

Easy Expansion — Expand coverage by simply adding more Powerline adapters



Where there's an outlet, there's a network.

The MP500 Kit transmits network data via existing electrical circuits, avoiding any negative influence obstacles have on the network. Enjoy a stable extended network with a transmission distance of up to 300 meters (on the same electrical circuit). Perfect for 4K streaming, online gaming, and graphics-intensive applications.



Dual Gigabit Transmission

Fast. Unlimited. Enjoyable.

Equipped with advanced HomePlug AV2 technology, the maximum powerline transmission rate reaches a stunning 1000 Mbps—with a gigabit port that delivers a high-quality network through any one of your outlets.



Plug and Play

Immediately extend your network as soon as you connect one, without complex wiring and configuration. Simply connect an MP500 adapter to your router and plug another one into any outlet where you need wired internet service.



Easy Expansion

If a typical two-pack kit doesn't meet all your networking needs, simply add more Powerline adapters to expand your network to any room.



Specifications

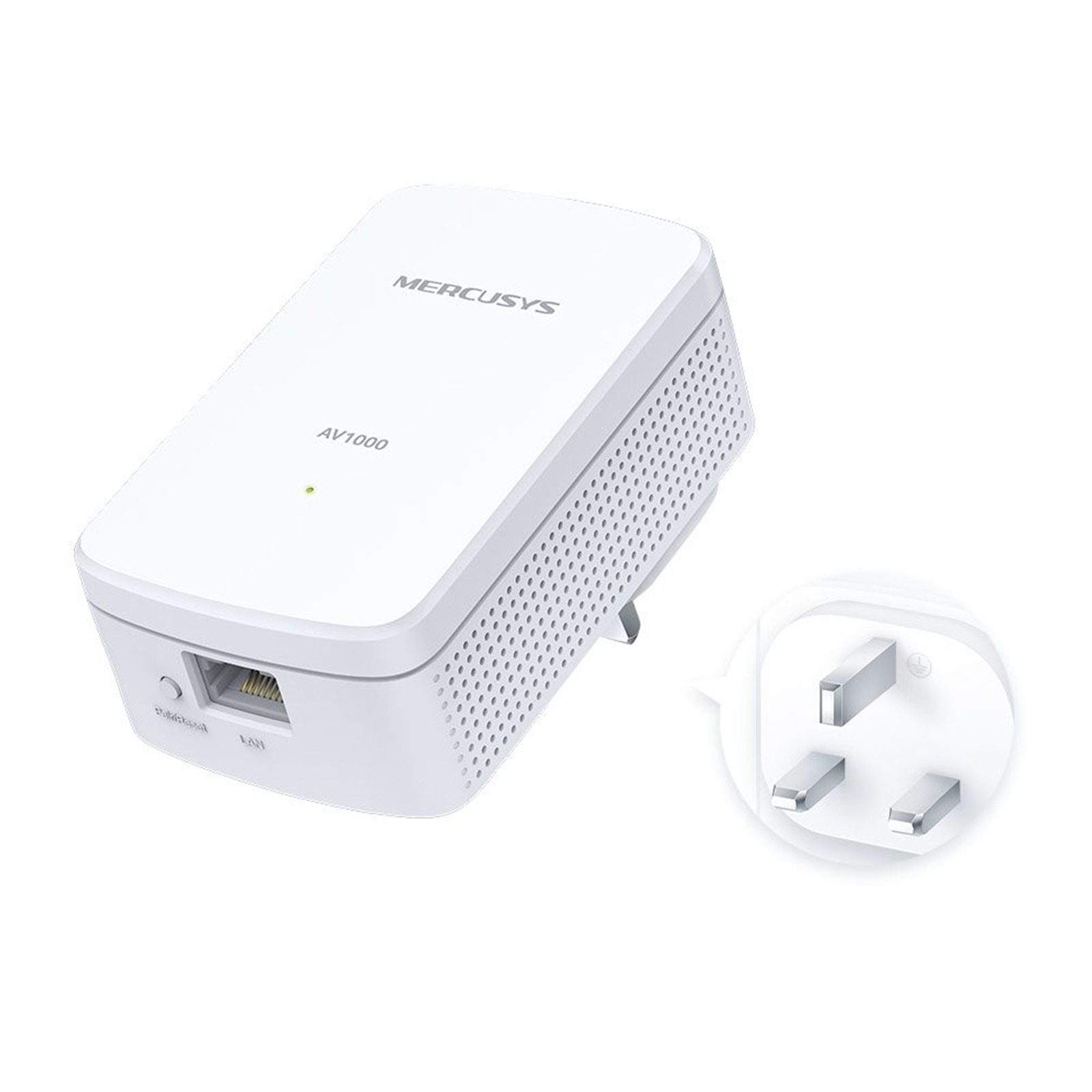

Plug Type

UK



Standards and Protocols

HomePlug AV2, HomePlug AV, IEEE 1901,

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab



Interface

Gigabit Ethernet Port



Button

Pair/Reset button



Power Consumption

Maximum: 2.87 W (220 V/50 Hz)

Typical: 2.35 W (220 V/50 Hz)

Standby: 0.64 W (220 V/50 Hz)



LED

Power



Dimensions (W X D X H)

101 x 60 x 36mm



Range

300m over electrical circuit



Modulation Technology

OFDM (PLC)



Encryption

Powerline Security: 128-bit AES



Package Contents

Powerline Ethernet Adapter

6.5 ft. (2 m) Ethernet cable (RJ45)

Quick Installation Guide
