8GB (1 x 8GB) DDR4 2666MHz DIMM System Memory

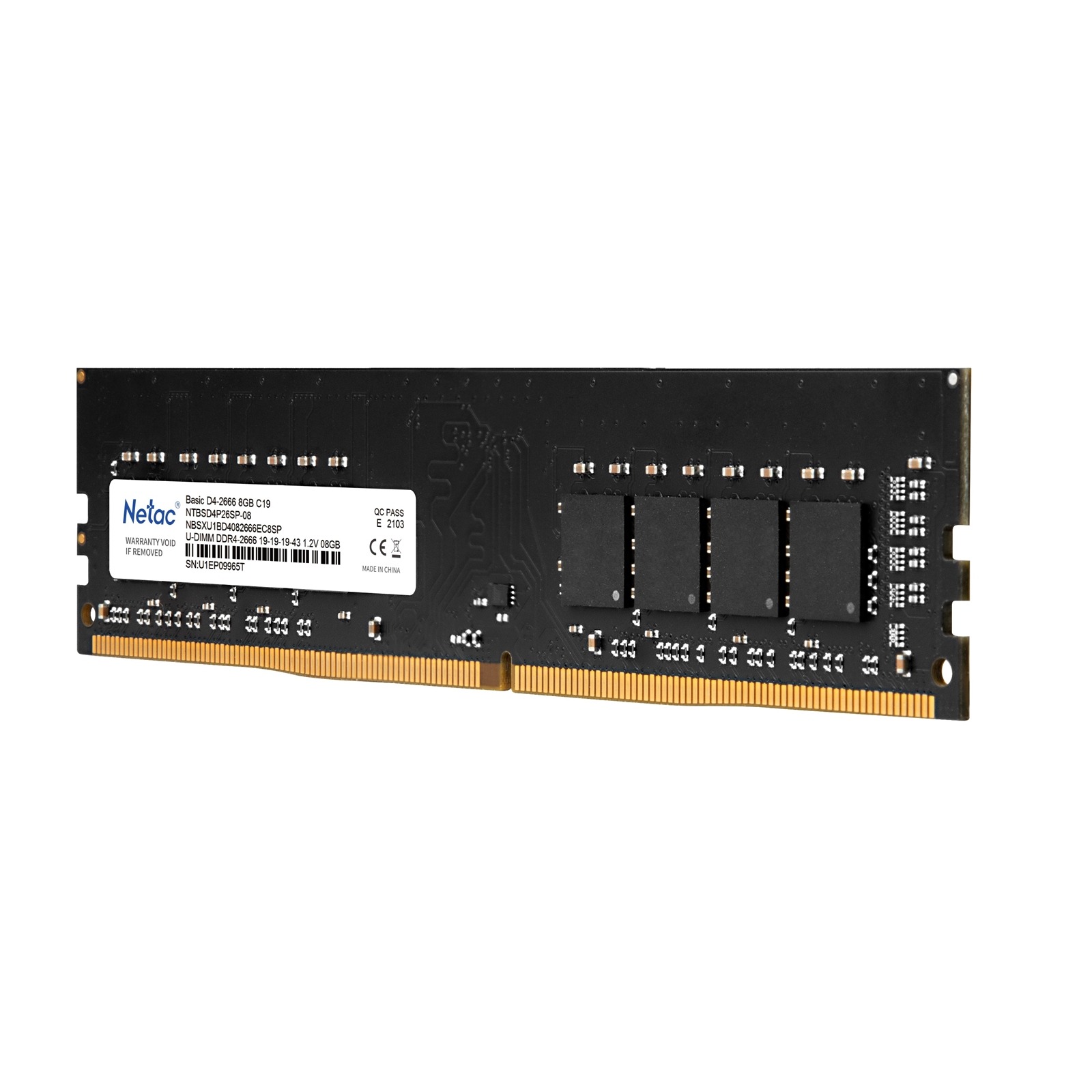

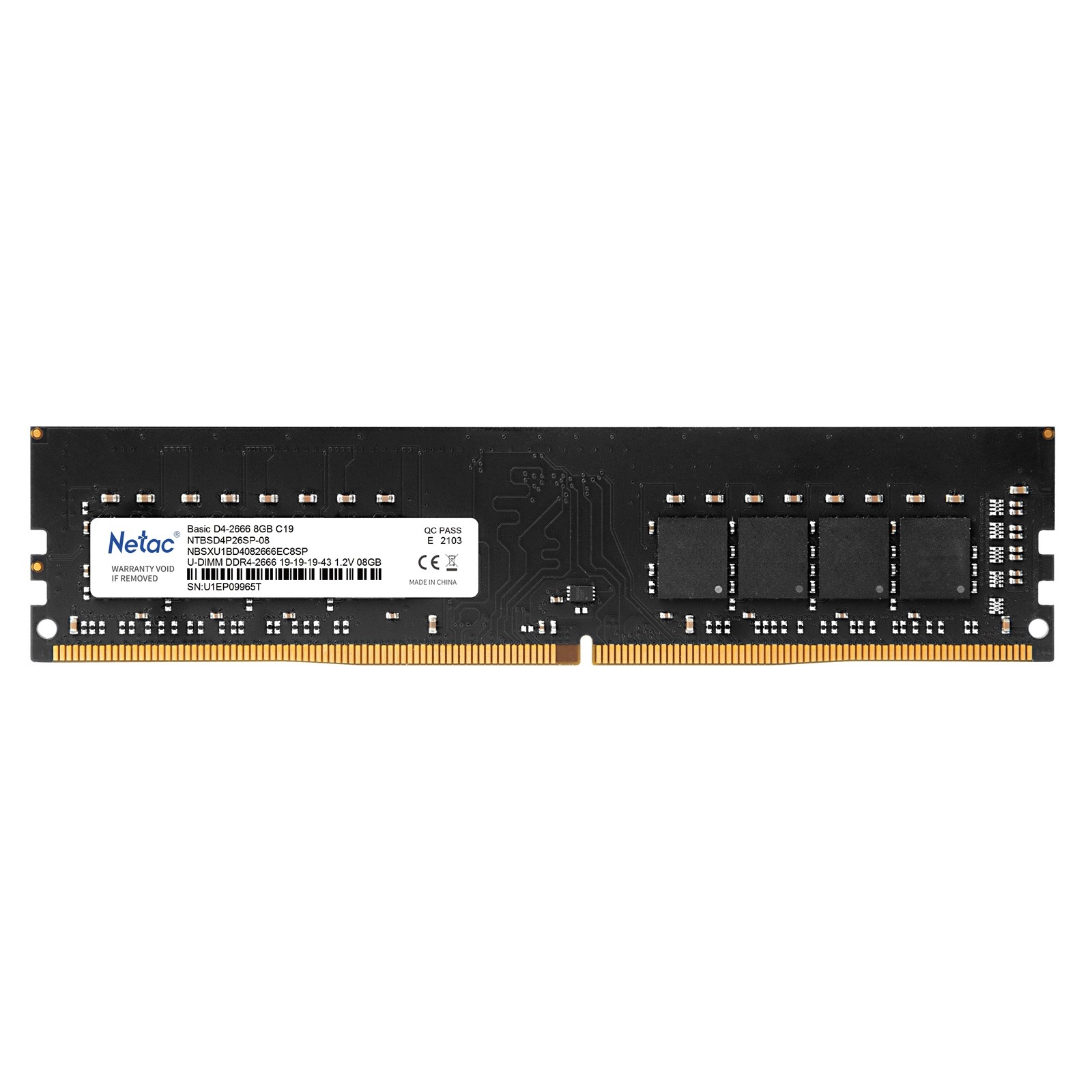

NTBSD4P26SP-08 is a 1G x 64-bit (1R8) or 512M x 64-bit (2R8)DDR4-2666 CL19 SDRAM (Synchronous DRAM), memory module,based on eight 1G x 8-bit or sixteen 512M x 8 FBGA components per module. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
NTBSD4P26SP-08 is a 1G x 64-bit (1R8) or 512M x 64-bit (2R8)DDR4-2666 CL19 SDRAM (Synchronous DRAM), memory module,based on eight 1G x 8-bit or sixteen 512M x 8 FBGA components per module. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Memory Capacity
8GB (1 x 8GB)
Memory Type
DDR4
Module Type
DIMM
Memory Speed
DDR4-2666MHz
Pin Configuration
288-pin
Registered/Unbuffered
Unbuffered
Error Correction
Non-ECC
CL-tRCD-tRP-tRAS
19-19-19-43
Heat Sink
/
Working Voltage
1.2v
