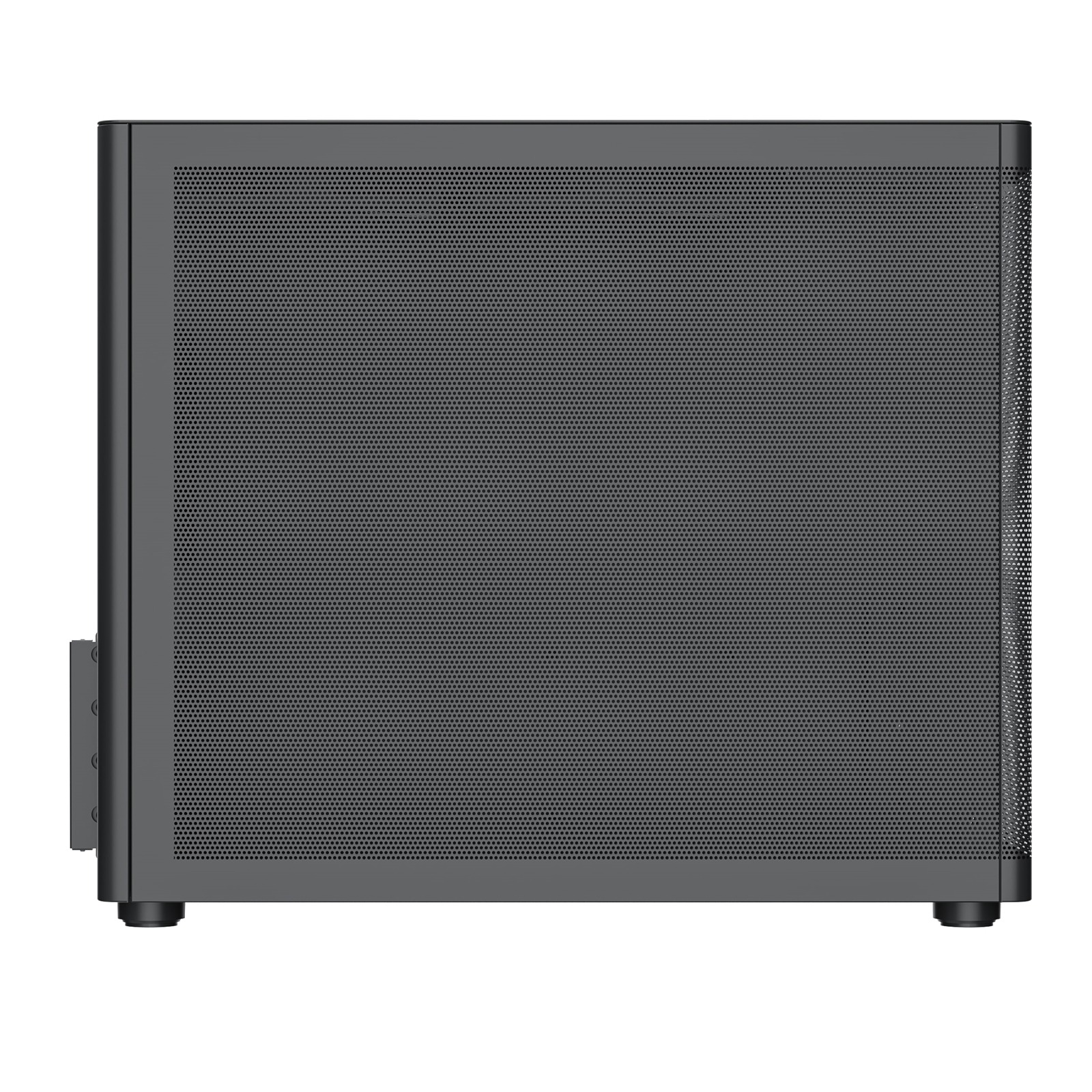

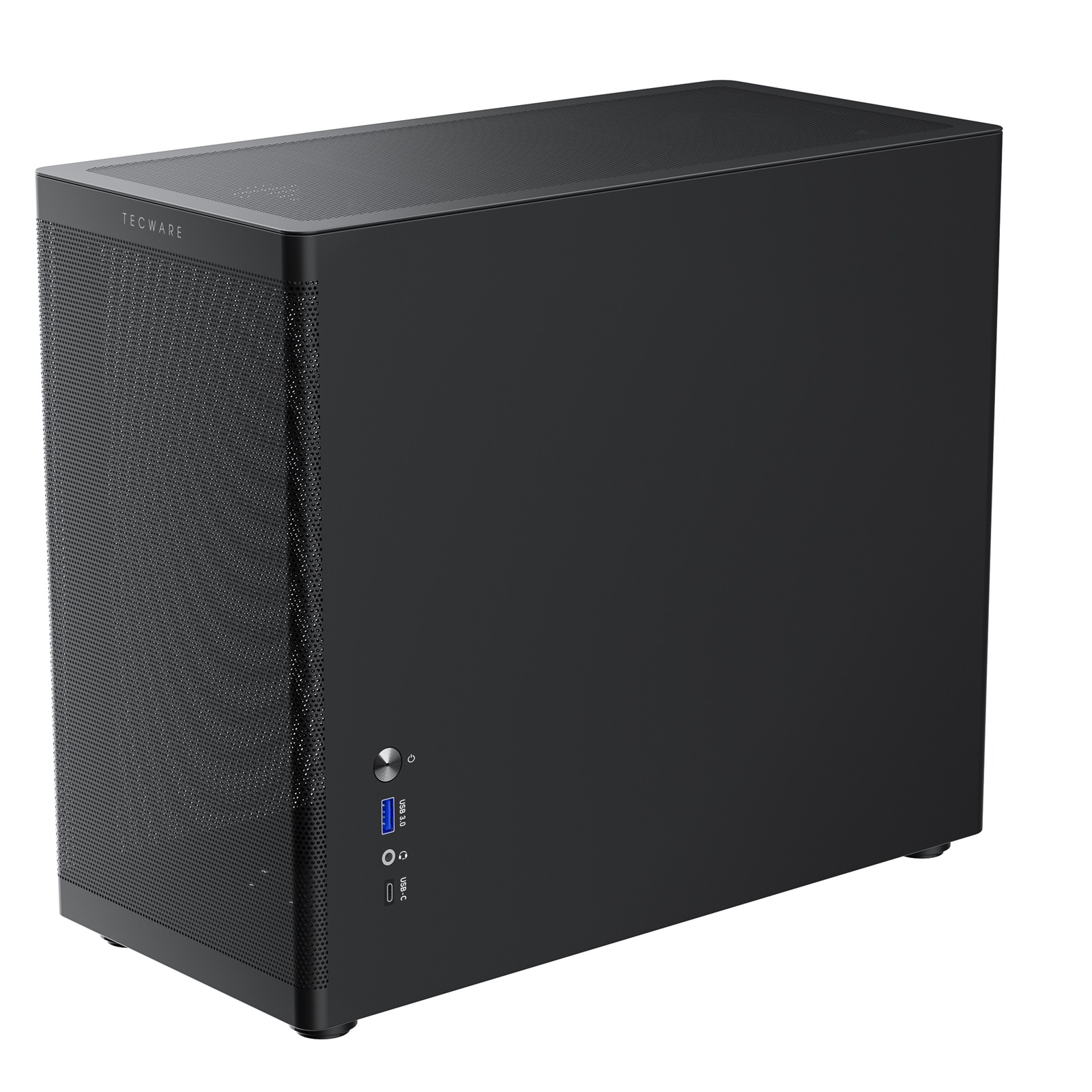

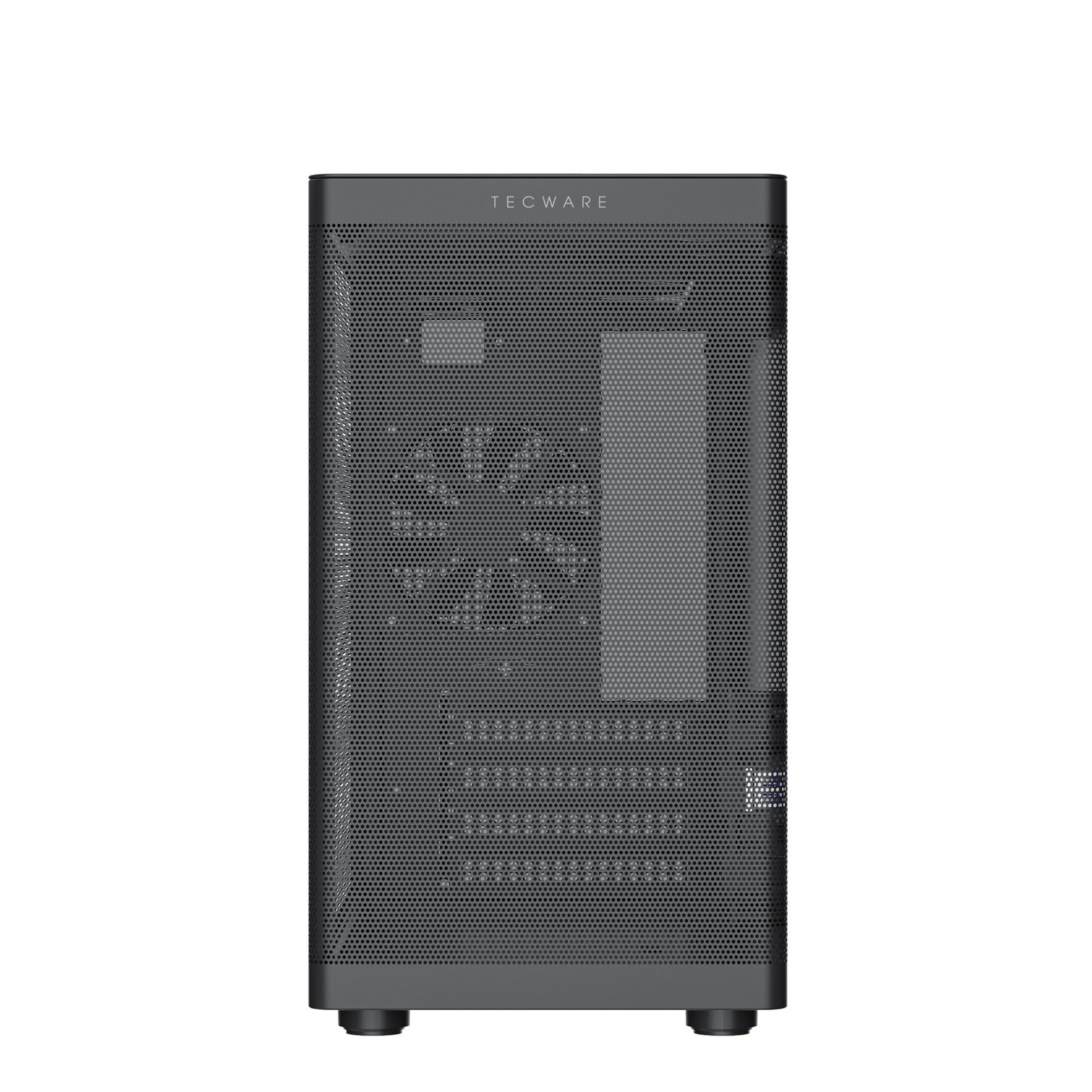

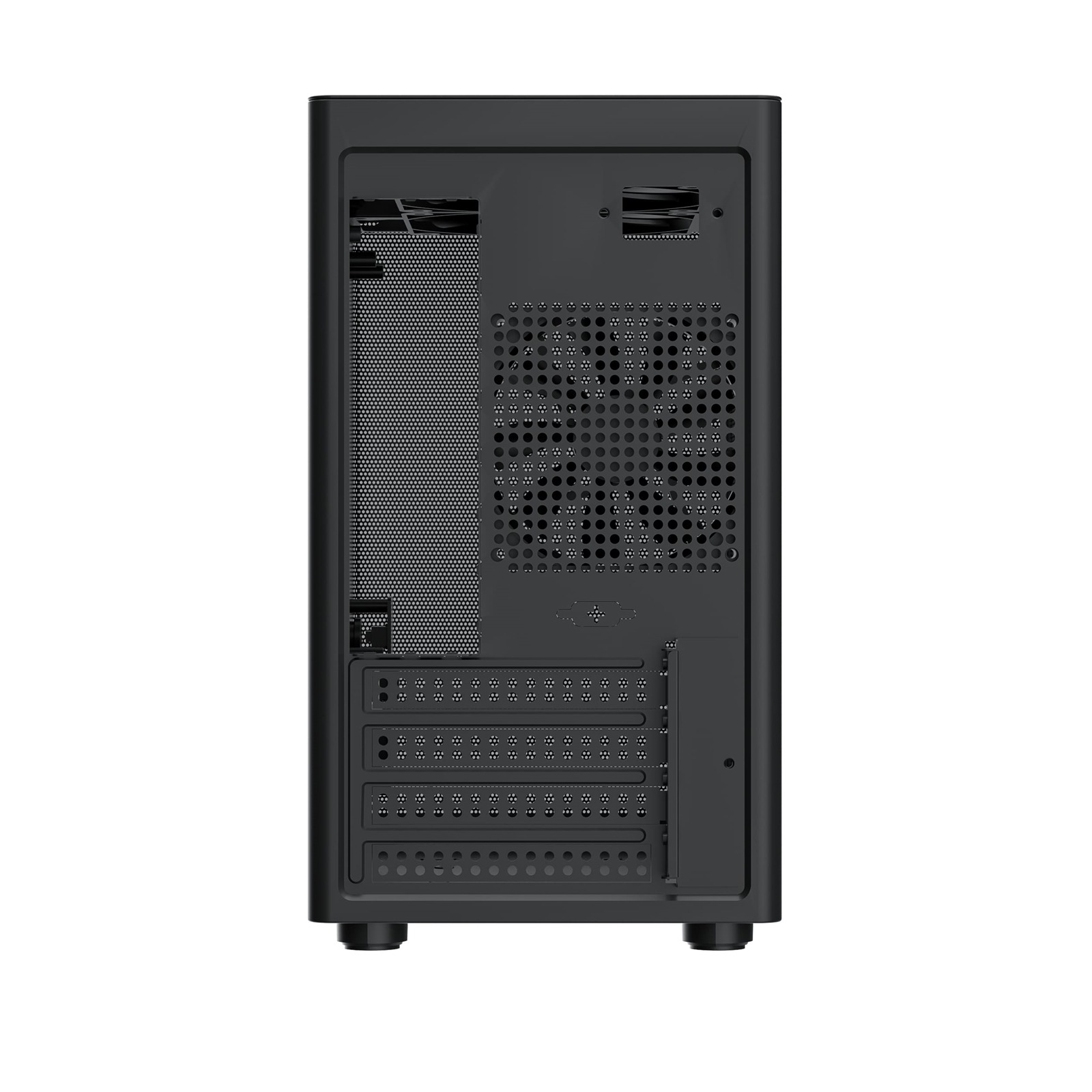

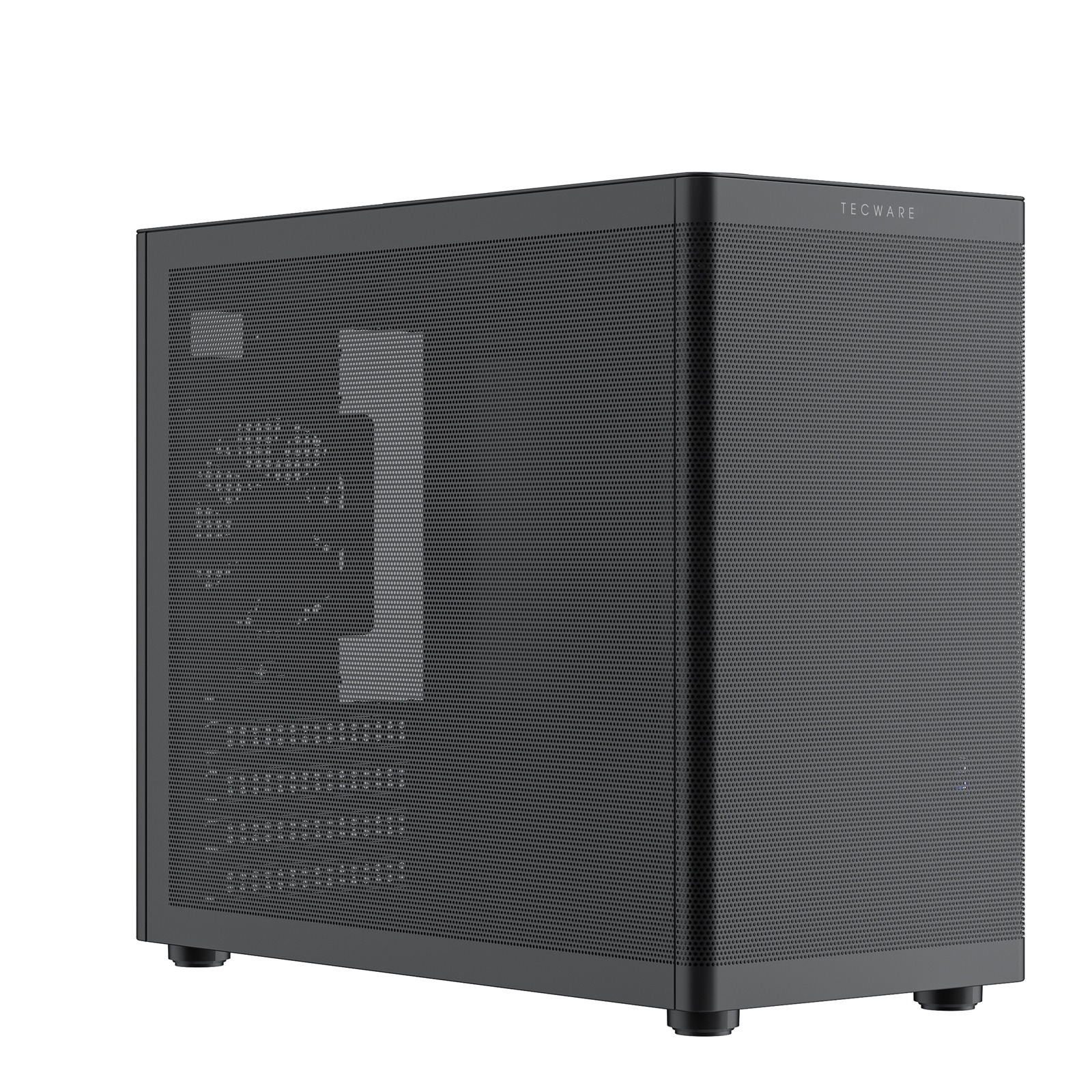

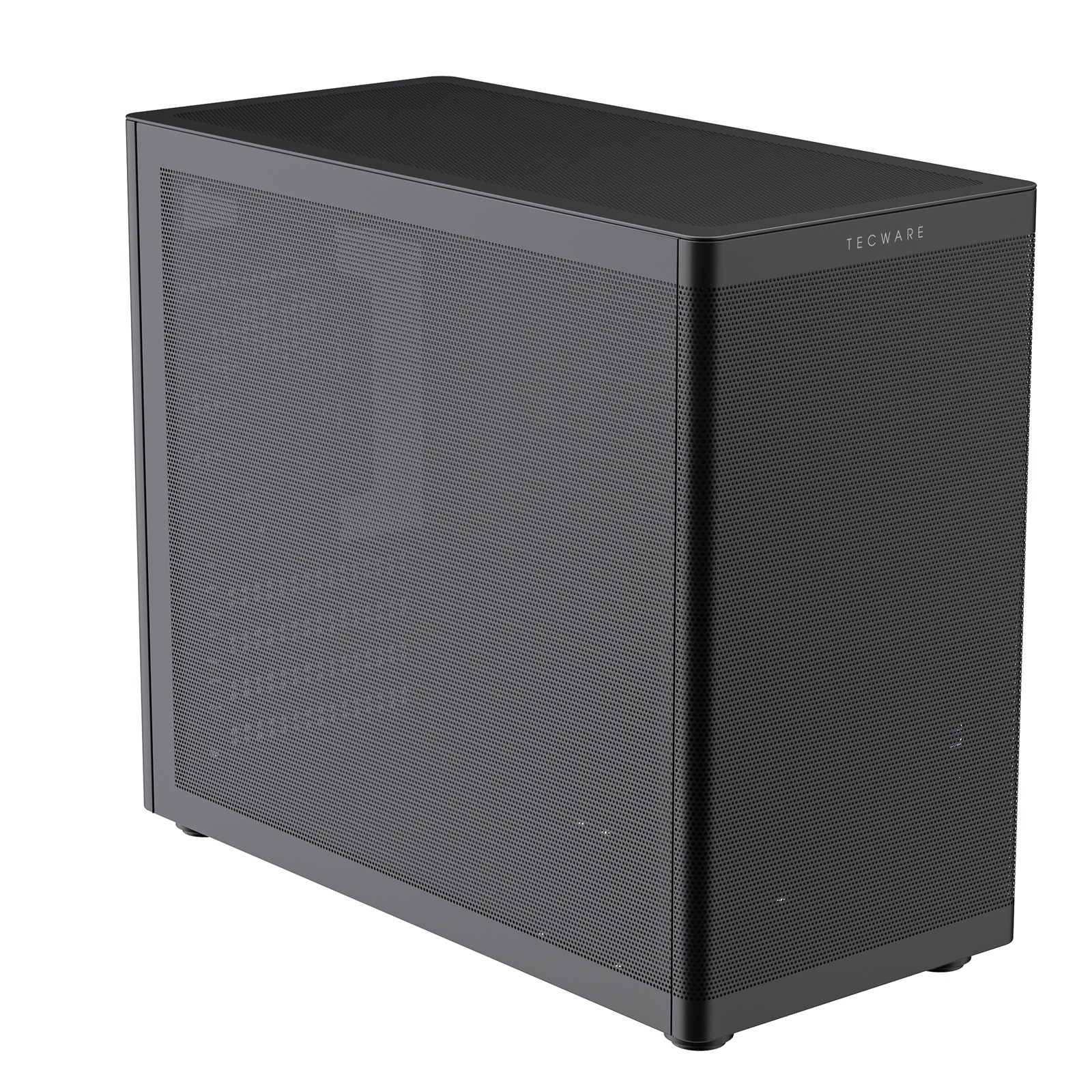

The TecWare Fusion 3 MATX Compact Mesh Case (TWCA-FUS3-BK) is a high-performance, space-saving chassis built for efficient airflow in compact builds. With a top-mounted PSU layout and pre-installed fans, this case is optimized for SFF systems without compromising cooling or hardware support.



Compact design with mesh intake for maximum airflow

Top-mounted PSU for efficient space management

Pre-installed fans: 2 x 120mm (top) + 1 x 90mm (rear)

Supports mATX and ITX motherboards

USB-C and USB 3.0 front panel connectivity



Case Specifications

Form Factor

Micro ATX



Motherboard Support

Micro ATX

Mini-ITX



PSU Support

ATX / SFX



PSU Location

Top-mounted



Body Material

Steel, Plastic, Mesh



Front Bezel Material

Mesh



Side Panel

Steel (non-tempered glass)



Internal Cable Management Depth

Approx. 15–20mm



Drive Bays

1 x 3.5" HDD

1 x 2.5" SSD



Expansion Slots

4 x Full Size



Cooling

Top: 2 x 120mm (Included)

Rear: 1 x 90mm (Included), supports 80mm

Bottom: Up to 2 x 120mm (1 x 120mm if HDD installed)



IO Ports

1 x USB 3.0

1 x USB-C

1 x HD Audio



GPU Max Length

280mm



CPU Cooler Maximum Height

140mm



PSU Max Length

150mm



Front Bezel Colour

Black (Mesh)



Body Colour

Black



PSU Included

No



Dimensions (W x H x D)

168 x 302 x 350 mm



Weight

Approx. 3.5kg
