Primary Function
Access Point
Bands
Dual Band
Max Wireless Transfer Rate
867 Mbps
Max Wired Transfer Rate
10/100/1000 Mbps
Interface(s)
1 x Gigabit Ethernet (RJ-45) Port
Wireless Standards
IEEE 802.11ac/n/g/b/a
Antenna(s)
Internal Antenna:
2.4 GHz: 3x 4 dBi
5 GHz: 2x 5 dBi
Button(s)
Reset
Power Supply
802.3af/at PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption
10.5 W
Dimensions
205.5 x 181.5 x 37.1 mm
Weatherproof
No
Frequency
2.4GHz and 5GHz
Wireless Functions
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Management
Omada App
Omada Hardware Controllers – OC300 & OC200
Omada Software Controller
Omada Cloud-Based Controller
EAP Controller Software
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP v1,v2c
Local/Remote Syslog
Telnet
SSH
HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning
Environment
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents

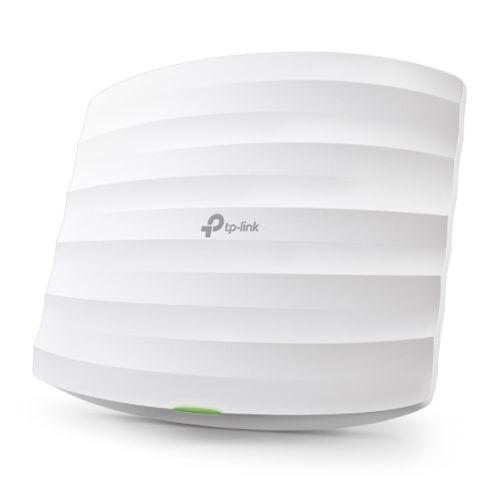

Access Point EAP225
Passive PoE Adapter
Power Cord
Ceiling and Wall Mounting Kits
Installation Guide
Package Type
Retail
Package Weight
0.9600 kg
Warranty
Limited Lifetime
Full Box Quantity
10 (300)
