Interface(s)

1 x 10/100/1000Mbps RJ45 data-in port
1 x 10/100/1000Mbps RJ45 power+data-out port
1 x AC socket

Dimensions

125 x 59.4 x 36.8 mm

LED Indicator

ON: Supplying power normally
OFF: No power supply

Power Supply

Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function

Plug-and-Play
Wall-mounting and desktop installation supported
Auto-determine the necessary power requirements
Auto-Sensing Algorithm enables providing power with 802.3af/at PD

Environment

Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing

Package Contents

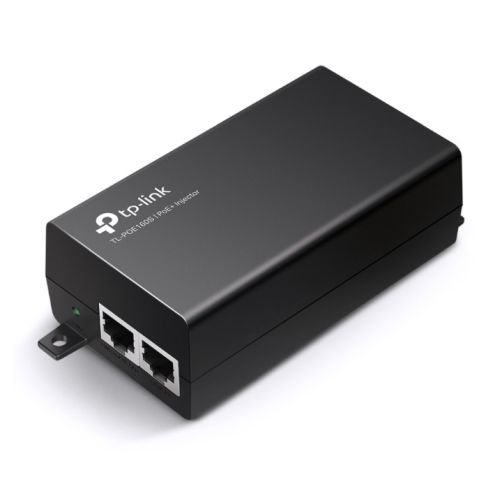

PoE+ Injector TL-POE160S
Installation Guide
Power Cord
RJ45 Cable
Wall Mounting Kits

Package Type

Retail

Package Weight

0.5300 kg

Warranty

2 Years

Full Box Quantity

20
