Power
Total power
The total power that is needed by the device, or the total power produced by the device.
850 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
115 – 240 V
AC input frequency
50/60 Hz
Input current
10-8 A
Power Factor Correction (PFC) type
Active
Number of +12V rail(s)
1
Max output current (+3.3V)
14 A
Max output current (+12V)
70.8 A
Max output current (+5V)
14 A
Max output current (-12V)
0.5 A
Max output current (+5Vsb)
2 A
Efficiency
85%
Power protection features
Features that protect the device against power problems e.g. overload.
Over voltage
Ports & interfaces
Motherboard power connector
The way in which the motherboard is connected to the power supply.
24-pin ATX
Motherboard power cable length
55 cm
Number of SATA power connectors
6
Number of PATA power connectors
3
SATA power cable length
750 mm
Number of SATA power cables
2
Peripheral (Molex) power connectors (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
3
Peripheral (Molex) power cable length
750 mm
EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (12+4 pin)
1
PCI Express power connectors (12+4 pin) cable length
600 mm
PCI Express power cable length
70 cm
CPU P4 connector (4-pin)
2
CPU power connector (4+4 pin)
CPU power cable length
65 cm
ATX Power connector (24-pin)
Ports & interfaces
Floppy disk drive connector
PCI Express connector
Cabling type
Non-Modular
Performance
80 PLUS certification
80 PLUS Bronze

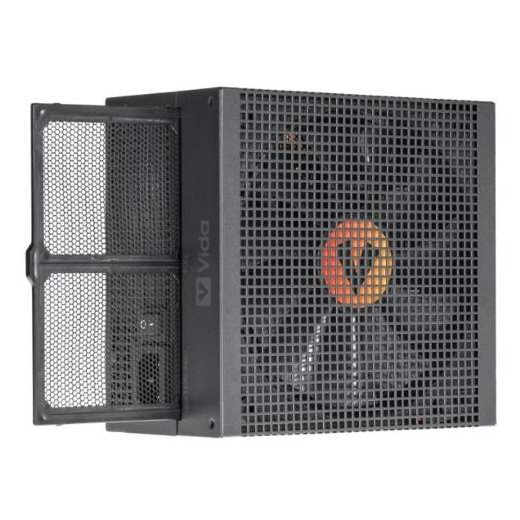

Removable filter
Purpose
What the product is used for.
PC
Power supply unit (PSU) form factor
ATX
ATX version
ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3.
3.1
Bearing technology
FDB
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
14 cm
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Fan location
Top
Illumination
The device has illumination.
On/off switch
The button which is pressed to switch the device on or off.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 – 40 °C
Packaging content
Cables included
CPU, PCIe, PATA, SATA, Peripheral (Molex)
Certificates
Compliance certificates
UKCA, RoHS, Federal Communications Commission (FCC), CCC, CB, CE
Weight & dimensions
Width
The measurement or extent of something from side to side.
160 mm
Depth
The distance from the front to the back of something.
86 mm
Height
The measurement of the product from head to foot or from base to top.
156 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.76 kg
Packaging data
Package width
The distance from one side of the packaging to the other.
295 mm
Package depth
The distance from the front to the back of the packaging.
140 mm
Package height
The distance from the top to the bottom of the packaging.
200 mm
Package weight
Weight of the packaged product.
2.18 kg
